- Page 1 MIRAGE Q IPCB User Guide...
- Page 2 ©2022 ADJ Products, LLC all rights reserved. Informa- tion, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copy- rightable materials and information now allowed by statu- tory or judicial law or hereinafter granted.
- Page 3 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online. Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or program- ming. Document Software Date Notes Version...
-
Page 4: Table Of Contents
CONTENTS Introduction Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Installation Operation Cleaning and Maintenance Dimensional Drawings Specifications... -
Page 5: Introduction

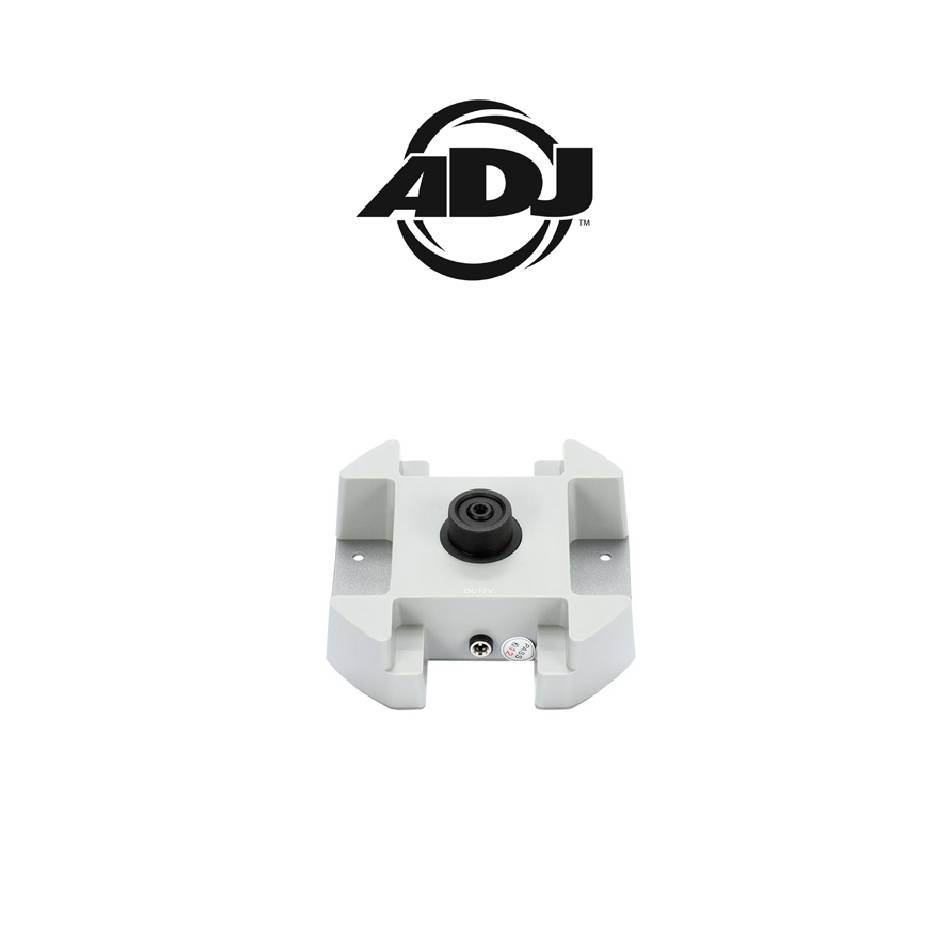

Introduction: The ADJ Mirage Q IPCB is a charging base designed for use with the ADJ Mirage Q IP lighting fixture. To optimize the per- formance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. - Page 6 Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu ADJ PRODUCTS LLC USA 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax 323-532-2941 | www.adj.com...
- Page 7 In the unlikely event your unit may require service, please contact ADJ Products, LLC. Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
-
Page 8: Limited Warranty (Usa Only)
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC;... - Page 9 The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
- Page 10 NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States. StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty) • ADJ DMX Controllers = 2 Year (730 Days) • American Audio Products = 1 Year (365 Days)
-
Page 11: Warranty Returns (Usa Only)
WARRANTY RETURNS (USA ONLY) All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. -
Page 12: Safety Guidelines
SAFETY GUIDELINES FOR YOUR OWN PERSONAL SAFETY, PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE YOU ATTEMPT TO INSTALL OR OPERATE THIS UNIT! • Be sure to save the packing carton in the unlikely event the device may have to be returned for service. •... - Page 13 SAFETY GUIDELINES • Disconnect from main power before making any type of connection. • Never block the ventilation holes. Always be sure to mount this device in an area that will allow proper ventilation. Allow about 6” (15cm) between this device and a wall. •...
-
Page 14: Installation
INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flam- mable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! •... -
Page 15: Operation
(below left). Then simply dock your ADJ Mirage Q IP fixture onto the Mirage Q IPCB device, making sure that the charging ports fit together tightly (below right). The Mirage Q IP lighting fixture will now begin to charge. -
Page 16: Cleaning And Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this device. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. - Page 17 CLEANING AND MAINTENANCE Please refer to the following points during routine inspections: • A detailed electrical check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating. • Be sure all screws and fasteners are securely tightened at all times.
-
Page 18: Dimensional Drawings
DIMENSIONAL DRAWINGS 5.1in (130.8mm) Images are not drawn to scale. -
Page 19: Specifications
SPECIFICATIONS Model Name: ADJ Mirage Q IPCB Compatible Device: ADJ Mirage Q IP Voltage: DC 17.3V, 3A (wall power supply) Dimensions: 5.3” x 5.1” x 2.0” 134.7mm x 130.8mm x 52.0mm Installation: Indoor or dry locations only Approvals: UL-approved power supply...
