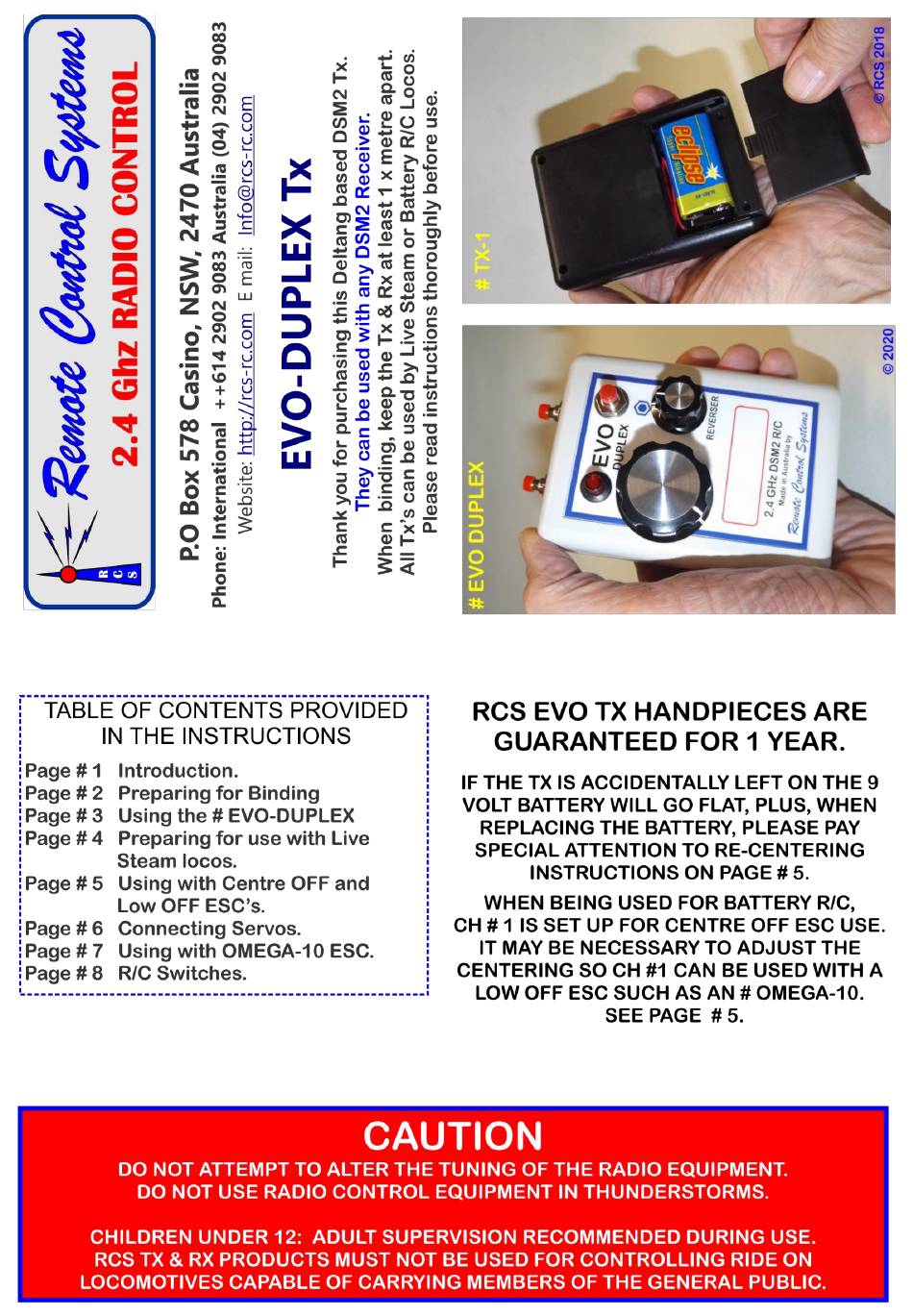

Remote Control Systems EVO-DUPLEX-Tx Manual

Table of Contents

Need help?

Do you have a question about the EVO-DUPLEX-Tx and is the answer not in the manual?

Page 2 – 2 – PREPARING THE # EVO-DUPLEX. The Large Channel # 1 knob is on the Left. The small Channel # 3 knob is on the Right. Top left is the ON – OFF switch with LED. Top right is the Bind/Ch # 5 pushbutton. Use for servo whistle. 1.
Page 3 - 3 - USING THE #DUPLEX LAYOUT OF THE # EVO-DUPLEX TRANSMITTER HAND PIECE. There are two pushbuttons on the end plate. The LH one is for one F2 trigger on Ch # 2. The RH one is for one F4 trigger on Ch # 4. LOW OFF CONTROL CENTRE OFF CONTROL METHOD LOW OFF CONTROL.
Page 4 - 4 - 2. PREPARING FOR USE WITH LIVE STEAM LOCOS. Channel # 1 is 100% (90°) & Ch # 3 is 150% (135°) servo throw. This will suit most situations. Turn the # EVO-DUPLEX handpiece ON. Make sure Rx is OFF. Then re-insert the servos into the correct Rx sockets. The Reverser servo goes in Ch # 3 (Elevator) socket.
Page 5 - 5 - 4. USING THE # EVO-DUPLEXWITH AN RCS “LOW OFF” ESC. The # EVO-DUPLEX can be used with RCS LOW OFF ESC’s such as the new RCS # OMEGA-10. Operation is essentially the same as for Live Steam control. See page # 3 for pics and text. This # EVO-DUPLEX hand piece is a 5 channel stick R/C in a smaller case and using only three channels.
Page 6 – 6 –...
Page 7 – 7 –...
Page 8 – 8 –...
