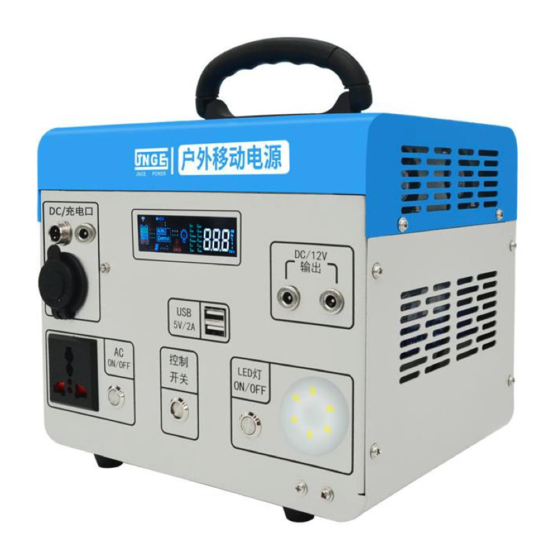

JN-BX Portable Storage Power Supply
User Manual
Anhui JNGE Power Co.,Ltd.
No.5-8 Qian Shui Road,High-Tech Zone, Hefei, Anhui Province,China
Dear customer, thank you for choosing to use our products, as the specifications, please refer to the
actual product. Please read the manual carefully before using this product if necessary you can keep it
for future review.
Advertisement
Table of Contents
Summary of Contents for JNGE Power JN-BX500/55-12

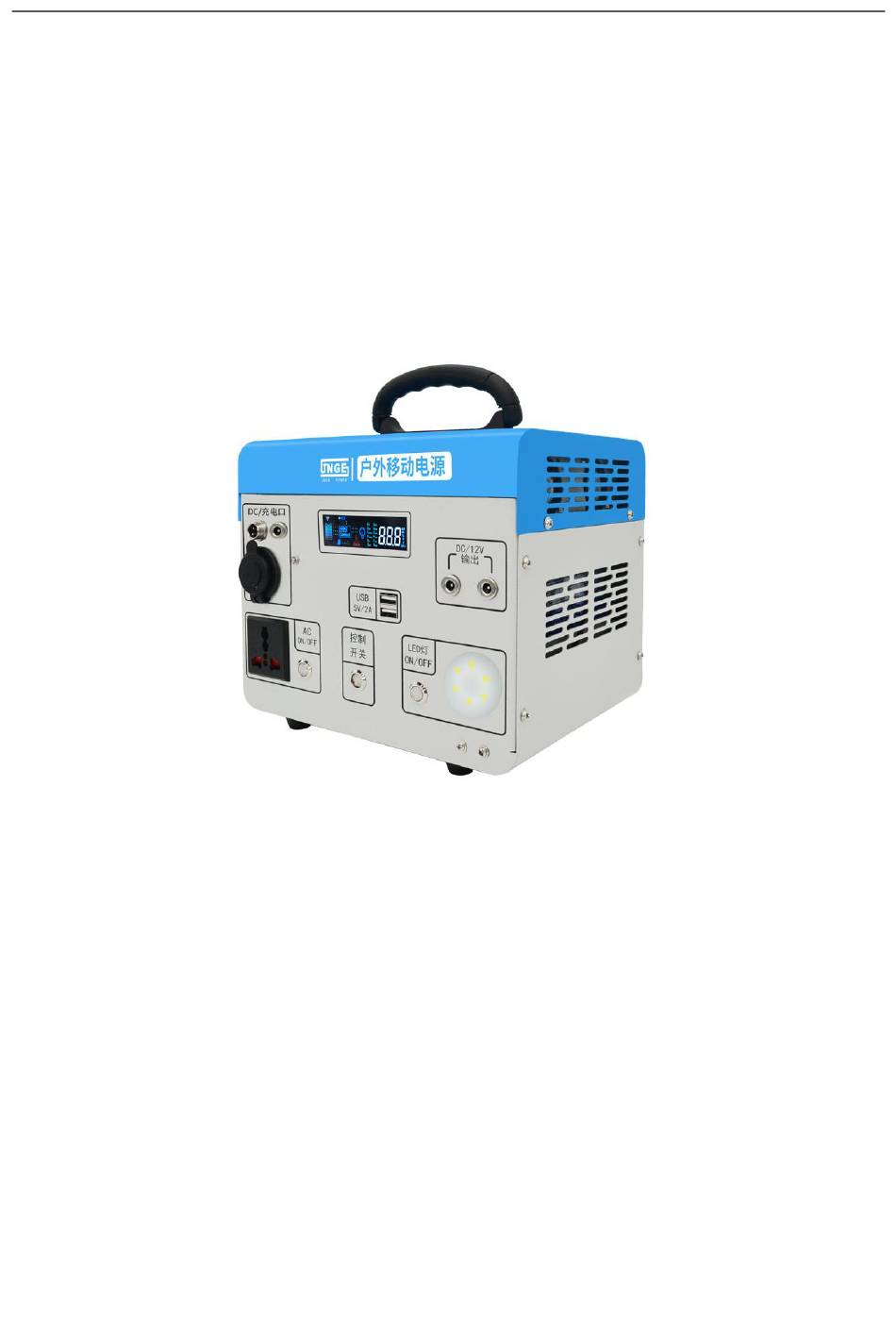

- Page 1 JN-BX Portable Storage Power Supply User Manual Anhui JNGE Power Co.,Ltd. No.5-8 Qian Shui Road,High-Tech Zone, Hefei, Anhui Province,China Dear customer, thank you for choosing to use our products, as the specifications, please refer to the actual product. Please read the manual carefully before using this product if necessary you can keep it...
-
Page 2: Table Of Contents
JN-BX Portable Power Supply User Manual Catalogue One: Product Characteristics ......................- 2 - 1.1 Product Overview .......................- 2 - 1.2 Product Characteristics .......................- 2 - Two: Product Introduction ......................- 3 - 2.1 Dimension Drawing of the Product ..................- 3 - 2.2 Panel Introduction ...................... -
Page 3: One: Product Characteristics
JN-BX Portable Power Supply User Manual 1. Product Characteristics 1.1 Product Overview Thank you very much for using the multi-functional and portable power supply products produced by our company.This product has a lot of features, when you need the power outage or when you go travelling, you can use it to power your appliances or digital products.This power supply is built-in high quality lithium ion battery which support DC, USB DC output, AC AC output.Before using this product, please read this user manual carefully and keep it for reference properly. -
Page 4: Two: Product Introduction
JN-BX Portable Power Supply User Manual 2. Product Introduction 2.1 Dimension of the Product Parameter Dimension Name Model JN-BX500/55-12 JN-BX1000/100-12 JN-BX1500/150-12 JN-BX2000/150-12 Weight (kg) Product Size L * D * H 225*175*205mm 280*228*233mm 340*245*326mm 340*245*326mm (mm) - 3 -... - Page 5 JN-BX Portable Power Supply User Manual 2.2 Control Board Introduction Table 2-1 Introduction of the interface function Key / Interface Function Remarks Press the AC switch, can realize the AC output on/off ON/OFF Control Switch Turn on the control switch, the display screen is bright, you can use DC output, can also be charged, when not in use, press to turn off.
-
Page 6: Display Screen Introduction
JN-BX Portable Power Supply User Manual 2.3 Display screen introduction Table 2-2 icon function function Icon name Definition Function declaration Load The icon highlights the AC load output Charge The icon indicates the voltage to the charging end Display Battery The icon light indicates the battery access, and the inside Capacity indicates the battery charge... -
Page 7: Three: Operation Instructions
JN-BX Portable Power Supply User Manual Radiator The field lights and displays the radiator temperature in the current charge Temp Temperature state in the data display area Alarm E RROR The field lights when there is a fault Instructions 3. Operation instructions 3.1 Introduction of product charging port Municipal power charging: Connect the AC connector of the standard charging adapter to the household AC jack, and connect... -
Page 8: Introduction Of The Product Output Port
JN-BX Portable Power Supply User Manual Use the standard accessories of this product and connect the 12V cigarette lighter port in the car to charge this product (only support 12V car charging). At this time, the photovoltaic panel icon will be lit up, and the running arrow will run up, indicating the normal charging of the product;... -
Page 9: Four: Attention
JN-BX Portable Power Supply User Manual USB-5V output port: The standard USB cable of the digital device to the USB interface of this product can realize the power supply for the digital device.We will continue to quickly charge smart USB devices for mobile phones and tablets that support fast charging technology.The actual charging voltage and current size are related to the actual USB smart device, please prevail according to the actual situation. -
Page 10: Safety And Maintenance
JN-BX Portable Power Supply User Manual 2. If the product has not been used for a long time, please stop charging and turn off all the switches for storage; 3. Please open the control switch before charging, for more, please check the corresponding equipment use manual;... -
Page 11: Troubleshooting
JN-BX Portable Power Supply User Manual 4.3 Troubleshooting If the following faults occur, check and troubleshoot as follows: Table 4-1. The Troubleshooting Table Hint Light status and Possible Cause Solutions alarm icon The array Upv and, the 1. The number of 1. -
Page 12: System Maintenance
JN-BX Portable Power Supply User Manual 4.4 System Maintenance To maintain optimum long-term performance, the following checks are recommended twice a year: 1. Check whether the lithium battery integrated machine is placed in a clean and dry environment. 2. Ensure that the air flow around the lithium engine will not be blocked and remove dirt or debris from the inlet / outlet. -
Page 13: Six Equipment Parameters
JN-BX Portable Power Supply User Manual Six Equipment Parameters Parameter table of lithium battery integrated machine Parameter name JN-BX parameter table (and adjustable range) LiFePo4 Battery type 3.2V/208000mA/ 3.2V/400000mA/1280wh 3.2V/600000mA/1920wh Battery capacity 670wh Voltage 12.8V 12.8V 12.8V Model BX300/55- BX500/ BX300/1 BX500/1 BX1000/... - Page 14 JN-BX Portable Power Supply User Manual Maximum voltage of the PV panels Municipal electricity 16V DC / 5A max charging DC output DC-12V/5A 、 USB-5V/2A Battery working scope 11.2V ～ 15.6V Internal battery High-quality lithium iron phosphate batteries Display mode LCD color screen Work environment -10℃...
-
Page 15: Installation Size
JN-BX Portable Power Supply User Manual 8 Installation size Fig. 8-1 Installation dimensions of JN-BX300W / 500W-55AH Lithium battery integrated machine Fig. 8-2 Installation dimensions of JN-BX300W / 500W / 1000W-100AH Lithium Battery Integrated Machine - 14 -... - Page 16 JN-BX Portable Power Supply User Manual Fig. 8-3 Installation dimensions of JN-BX1000W / 1500W / 2000W-150AH Lithium Battery Integrated Unit - 15 -...
