User Manual
FMAMP250
Broadcast 250W RF Amplifier
WARNING!
This RF Amplifier is capable of generating extremely high RF
potential. Touching internal parts, or the connected antenna
system, will cause serious RF burns. Antenna systems should be
installed such that exposure by any person to RF fields cannot
exceed safe limits. The permitted limits vary from country to
country. Expert advice should be sought about the safe
installation of this transmission system.
RISK OF FIRE!
RF (Radio Frequency) energy could cause ignition of combustible
surfaces during fault conditions. Installation should be left to
qualified personnel. RF can cause burns to skin. Ensure antenna
systems and feeder cables are not situated near, or could fall
onto, any combustible surface.
Advertisement
Table of Contents
Related Manuals for Lucoro Broadcast FMAMP250
Summary of Contents for Lucoro Broadcast FMAMP250
- Page 1 User Manual FMAMP250 Broadcast 250W RF Amplifier WARNING! This RF Amplifier is capable of generating extremely high RF potential. Touching internal parts, or the connected antenna system, will cause serious RF burns. Antenna systems should be installed such that exposure by any person to RF fields cannot exceed safe limits.
- Page 2 WARNING! Never operate this device without a suitable 50 ohm load connected to the RF OUTPUT socket, or without a suitably installed and matched antenna system connected. Although the output of this transmitter is protected against antenna load faults, MIS-OPERATION MAY RESULT IN DAMAGE NOT COVERED BY ANY WARRANTY.
-
Page 3: Before Operating

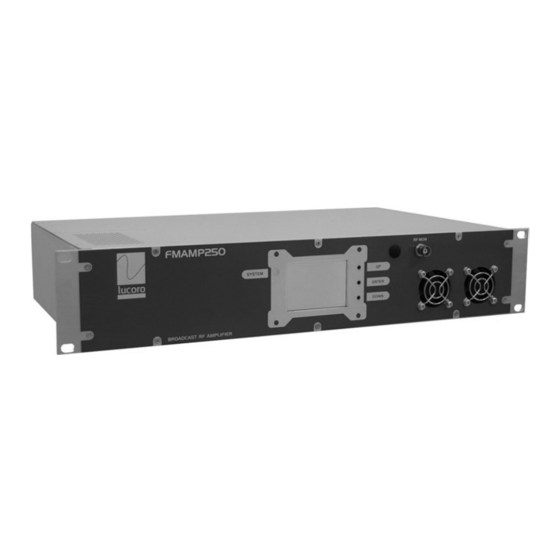

Introduction The FMAMP250 is powerful and reliable RF Amplifier featuring the latest Enhancement Mode FET technology. Its high gain performance gives 250 Watts output (adjustable) from just 2 Watts input. TTL remote monitoring and switching allows the FMAMP250 to be easily integrated into automated back-up applications. - Page 4 with telephone numbers for contacting the emergency services in the event of personal injury. Ensure antenna system lightning strike protection is in place. To reduce the risk of electrical shock, do not remove the cover, or any screws. There are no user serviceable parts inside; refer servicing to qualified personnel.
-
Page 5: Controls And Connectors
Controls and Connectors 1. SYSTEM Status LED. Green indicates correct operation, red indicates a system error requiring urgent further investigation. 2. DOWN Push-button. Press this control to navigate the LCD menu. 3. ENTER Push-button. Press this control to navigate the LCD menu. 4. - Page 6 Pin 1. Reflected Power Alarm. TTL logic low during normal operation. Floats high to indicate a high level of reflected power (critical antenna mis-match) has been detected. Pin 2. Forward Power alarm. TTL logic low during normal operation. Floats high to indicate RF output has failed. Pin 4.
-
Page 7: Installation
Installation Connect a suitable rated test load to the RF OUPUT socket before connecting the unit to mains power. IMPORTANT! FAILURE TO DO SO MAY RESULT IN DAMAGE NOT COVERED BY WARRANTY. Reduce the output power (using the rear panel RF OUTPUT POWER ADJUST control) anti-clockwise to the lowest level. -
Page 8: Operation
Operation The FMAMP250 is designed for continuous reliable transmission, however the fans must be periodically checked for correct operation and free airflow. The front panel display shows the forward power level ( reflected power level ( Correct operation is confirmed by a front panel green STATUS LED. - Page 9 indicator (see below) will also show and the standby transmission system (where used) will have activated (TTL control). The system has detected there is no forward power. This FWD! may be due to one or both of the above symptoms, due to a PLL failure, or due to excessive power setting.
- Page 10 EC Declaration of Conformity to R&TTE Directive 1999/5/EC Lucoro Broadcast Clay Pit Lane Roecliffe York YO51 9FS hereby take sole responsibility to confirm that the product: FMAMP250 which this declaration refers to, conforms to all applicable requirements of EU Directive 2014/53/EU and is CE marked...
-
Page 11: Technical Specifications
Technical Specifications Frequency range 87.5 to 108.00MHz Input power 2W nominal (for 250W out) Output power 30 - 250W Harmonic & spurious output -75dBc typical RF input connector ‘N’ type (F) RF output connector ‘N’ type (F) Monitoring: BNC (F) -40dB 50 ohms Power Supply: Input AC 100V to 250V (50/60 Hz) - Page 12 WEEE - Waste Electrical and Electronic Equipment The equipment that you bought has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems.
- Page 13 Lucoro Broadcast shall not be liable for any direct, indirect, incidental, consequential or other damage or loss alleged in connection with the supply or use of this product. The information contained in this document is subject to change without notice. Lucoro Broadcast makes no warranty of any kind with respect to this information.
