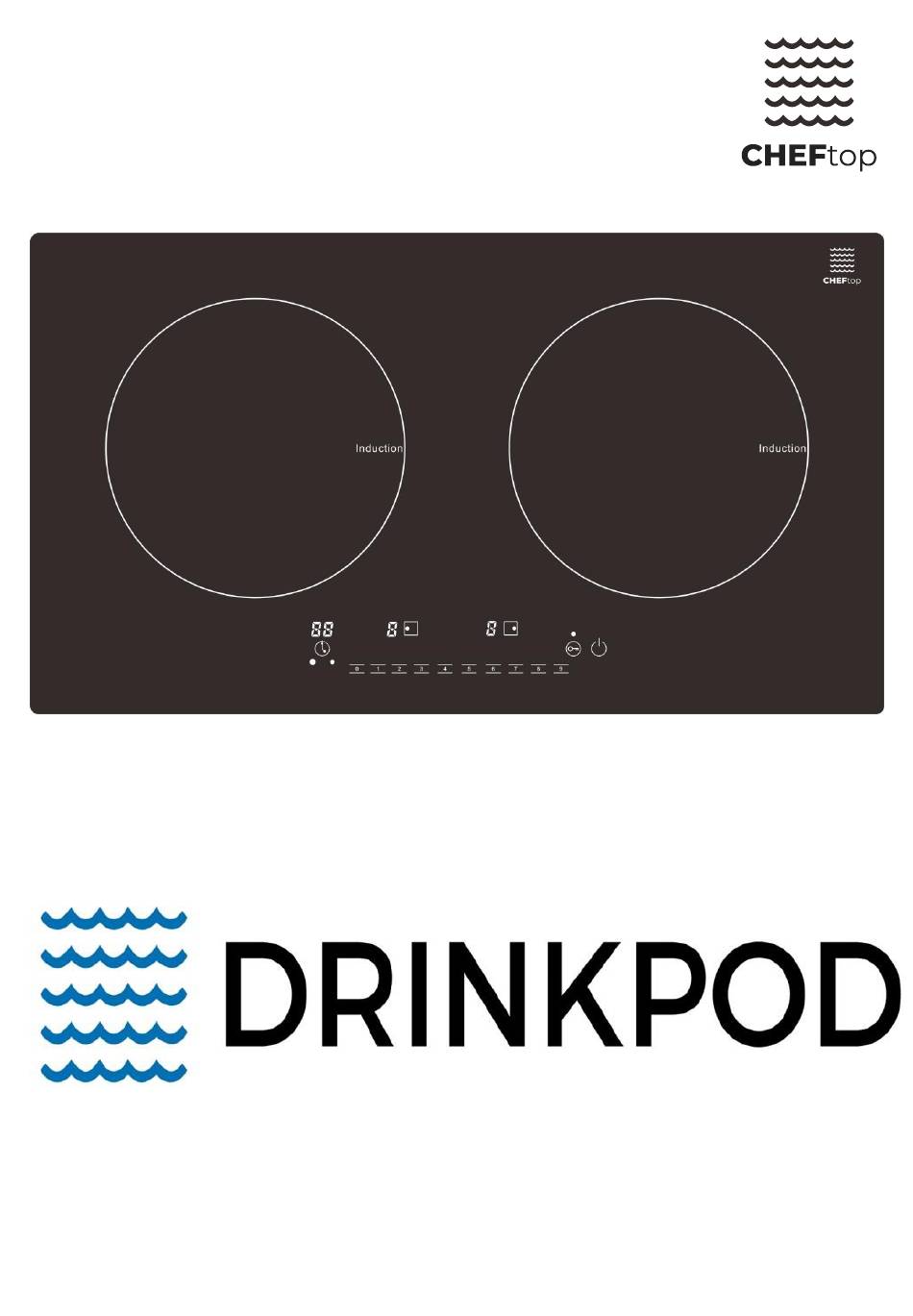

- Page 1 User Instruction Manual Dual Induction Cooktop Hob Model: DP-CHEFTOP-2 Dimensions: 23.6 "x 13.3 " POWERED BY WWW.DRINKPOD.COM...
-
Page 2: Table Of Contents
CONTENTS BEFORE USE .............................. 2 IMPORTANT SAFEGUARDS ........................3 INSTALLATION ............................5 ELECTRICAL CONNECTION ........................5 INSTRUCTION FOR USE ..........................6 TEMPERATURE LEVEL TABLE ........................8 TECHNICAL INFORMATION ........................9 CLEANING ..............................9 TROUBLESHOOTING GUIDE ........................9 NOISES MADE BY THE HOB ........................10 AFTER-SALES SERVICE .......................... -
Page 3: Before Use
BEFORE USE IMPORTANT: The cooking zones will not switch on if pots are not the right size. Only use pots bearing the symbol “INDUCTION SYSTEM” (Figure below) or enameled pots. Place the pot on the required cooking zone before switching the hob on EXISTING POTS AND PANS Use a magnet to check if the pot is suitable for the induction hob: pots and pans are unsuitable if not magnetically detectable. - Page 4 Do not touch the appliance heating elements during and after use. Do not allow the appliance to come into contact with cloths or other flammable materials until all the components have cooled sufficiently. Do not place flammable materials on or near the appliance. ...
-
Page 5: Electrical Connection
To reduce the risk of electric shock, do not mount over a sink. Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock; ... - Page 6 To avoid permanently damaging the glass-ceramic top, do not use: Pots with bottoms that are not perfectly flat. Metal pots with enamelled bottom. CONTROL PANEL LAYOUT Switching the hob On/Off To switch the hob on, press the button and the cooking zone displays light up. To switch off, press the same button until the displays switch off.
- Page 7 buttons, going from “1”: min. level, to “9”: max. level. Specifically function Select the cooking zone you wish, and press the same number level button twice; the point corresponding display shows . The cooking zone will work high level . Push the number level again, Then the cooking zone will recover to previous level.
-
Page 8: Temperature Level Table
The power of the cooking zones can be different in some small range. It changes with the material and dimensions of the cookware. TECHNICAL INFORMATION Voltage: 120V~ 60 Hz Model: DP-CHEFTOP-2 Max. power: 1800W... -
Page 9: Cleaning
CLEANING Do not use steam cleaners. Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator (“H”) is not displayed. IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass. ... -
Page 10: After-Sales Service
AFTER-SALES SERVICE Before contacting the After-sales Service: 1. See if you can solve the problem yourself with the help of the “Troubleshooting guide”. 2. Switch the appliance off and then on again it to see if the problem has been eliminated. If the problem persists after the above checks, contact the nearest After-Sales Service.
Need help?
Do you have a question about the DP-CHEFTOP-2 and is the answer not in the manual?
Questions and answers
if i installed as drop in , what is the dimension for the cut out
