Summary of Contents for RubbaFix MELTA Pro

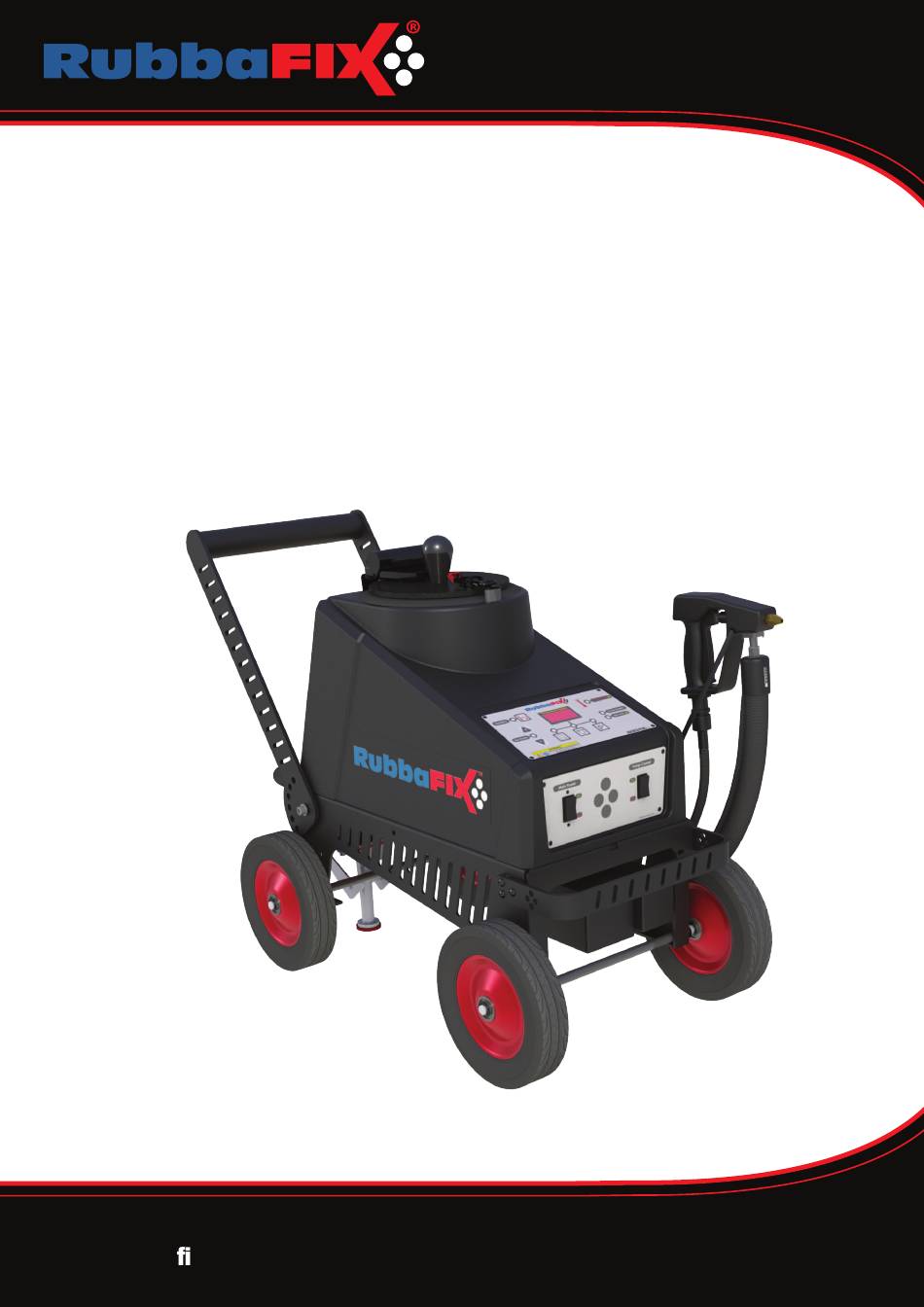

- Page 1 Operating Instructions for RubbaFIX MELTA ® ® Applicator Australia (Toll Free): 1800 352 228 www.rubba x.com International: +61 2 8853 3000...
-
Page 2: Table Of Contents
Contents Disclaimer ..............................3 1. Meaning of Safety Symbols ........................4 2. Safety and Set Up ...........................5 2.1. Before using your MELTA Pro ....................5 ® 2.2. Basic Electrical Connections (220 VAC) ..................5 3. MELTA Pro ............................6 ® 3.1. Operating Instructions ........................6 4. Product Identification ..........................7 4.1. -
Page 3: Disclaimer
Disclaimer To the best of our knowledge, the information contained herein is accurate and reliable as of the date of publication, however, we do not assume any liability whatsoever for the accuracy and the completeness of the information below. We make no warranties which extend beyond the description contained herein and any information given does not constitute any warranty of merchantability or fitness for a particular use. -
Page 4: Meaning Of Safety Symbols
1. Meaning of Safety Symbols This symbol indicates that there is, above all, danger to persons, but also to equipment and materials. Caution: Hot Surface! Accident prevention regulations VBG 125 – W26 hot surfaces such as machine parts, tanks or materials, but also hot liquids cannot always be perceived. The utmost caution is advised when this symbol is attached to a component. -
Page 5: Safety And Set Up
2. Safety and Set Up 2.1. Before using your MELTA ® It is your responsibility and obligation to make sure your system: • Has a pre start check carried out by the operator before each use. • Has been located in such a way that the controls are away from the operator and that the housing panel is securely closed at all times. -
Page 6: Melta ® Pro
Pro is designed for the application of RubbaFIX in operations requiring dispersion of the repair ® ® ® compound over large surface areas or in other situations where the RubbaFIX MELTA Mini is not of size. ® ® 3.1 Operating Instructions •... - Page 7 6. Ensure the machine is on stable ground with the foot brake applied. 7. Turn Main Power 1 “ON”. 8. Set required temperature 15 (refer to Control Panel Settings for ideal temperatures for operating RubbaFIX MELTA ® ® Pro Applicator).
-
Page 8: Product Identification
4. Product Identification... -
Page 9: Applicator Gun
4.1 Applicator Gun 4.2 Front Control Panels Australia (Toll Free): 1800 352 228 International: +61 2 8853 3000 See our full range online at www.rubba x.com... - Page 10 11. Gun Hook: This is used to rest the applicator gun on when under pressure when the trigger switch is squeezed. the gun is not being used. 22. Trigger Switch: The trigger switch will allow product to flow 12. Applicator Gun: The control gun for applying the RubbaFIX when squeezed. ® product.
-
Page 11: Control Panel Settings
5. Control Panel Settings Set Temperatures: Press and hold the Zone button (Tank, Hose or Gun) for 2 seconds. When the Set Mode light illuminates, continue to hold and adjust the set temperature up or down using the arrow keys. Set temperatures cannot be adjusted when the Set Lock is activated. -
Page 12: Caution
Always operate the system with the tank lid Closed. • Foot brake must always be on when machine is in use. 7. WARNING • Refer to RubbaFIX Safety Data Sheet (SDS) for the following Warning instructions before using RubbaFIX MELTA ® ® ® Pro Applicator. -
Page 13: Service And Maintenance
8. Service and Maintenance 1. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. 2. Never fill the tank of your MELTA Pro with contaminated material. -
Page 14: Trouble Shooting
9. Trouble Shooting PROBLEM CHECKLIST POSSIBLE SOLUTIONS • Check power cable is not damaged, plugged in and • Replace power lead by licenced electrician if MELTA Pro won’t power up ® power source turned on. damaged. • Check on/off switch is turned on. •... -
Page 15: Compliance
C. Environmental Protection Please dispose in accordance with the regulations in your country Packing material used for this product can be recycled completely. Please take instructions for the disposal of RubbaFIX products from the respective safety data sheets. ® Australia (Toll Free): 1800 352 228 International: +61 2 8853 3000 See our full range online at www.rubba x.com... -
Page 16: Eu Declaration Of Conformity
RubbaFIX Pty Ltd and/or ® • other components than accessories of RubbaFIX® Pty Ltd are fitted, and/or • if the product is not connected or used as intended. Russell Eggers, June 18th 2017 Chief Executive Officer... -
Page 17: Warranty
MELTA Pro unless such costs, claim demanded, expense or liability shall be directly ® and solely attributable to any breach of contract or guarantee by, or negligence of RubbaFIX or its duly ®... -
Page 18: Technical Data
F. Technical Data G. Specifications Tank Capacity 7 Litres Approx. Number of Hoses/Guns 1 Hose/1 Handgun Electrical 220 VAC, 10 amp Hz 50/60 Drive Motor All-electric, fractional HP Length of Electric Cord 1.8 Metres Pump Cast iron with steel gears Temperature Control Micro Processor Dimensions... -
Page 19: Appendix 1 Electrical Fuse & Relay Chart
Appendix 1 Electrical Fuse & Relay Chart Power Connection Hose/Gun Card (241-217) 2-Wire, 220 VAC 220V FAULT HOSE Caution Hose Accessory HOSE RELAY 220 Volt Tank Heaters Only Connector Connector 14-pin 9-pin RTD Temperature Sensor GUN RELAY Motor Breaker Switch AIR BAG Heater +24 COM... -
Page 20: Appendix 2 Hose & Gun Card
Appendix 2 Hose & Gun Card 220 VAC Schematic POWER SWITCH POWER SWITCH ON/OFF BREAKER ON/OFF BREAKER C1-8 C1-9 C1-10 C1-11 Power Connection TANK HOSE POWER SWITCH POWER SWITCH 2-Wire, 220 Volts 220 V TANK RELAY Caution TANK HEATERS 220 Volt Heaters Only TANK TANK TANK... - Page 21 For further information on how RubbaFIX ® solutions can help you with your next project, please contact our head office or visit rubbafix.com Head Office: Mail To: Contact: Unit 16, 6 Gladstone Road PO Box 6467 Australia (Toll Free): 1800 352 228...
