Summary of Contents for THERMOFLAN Stamps

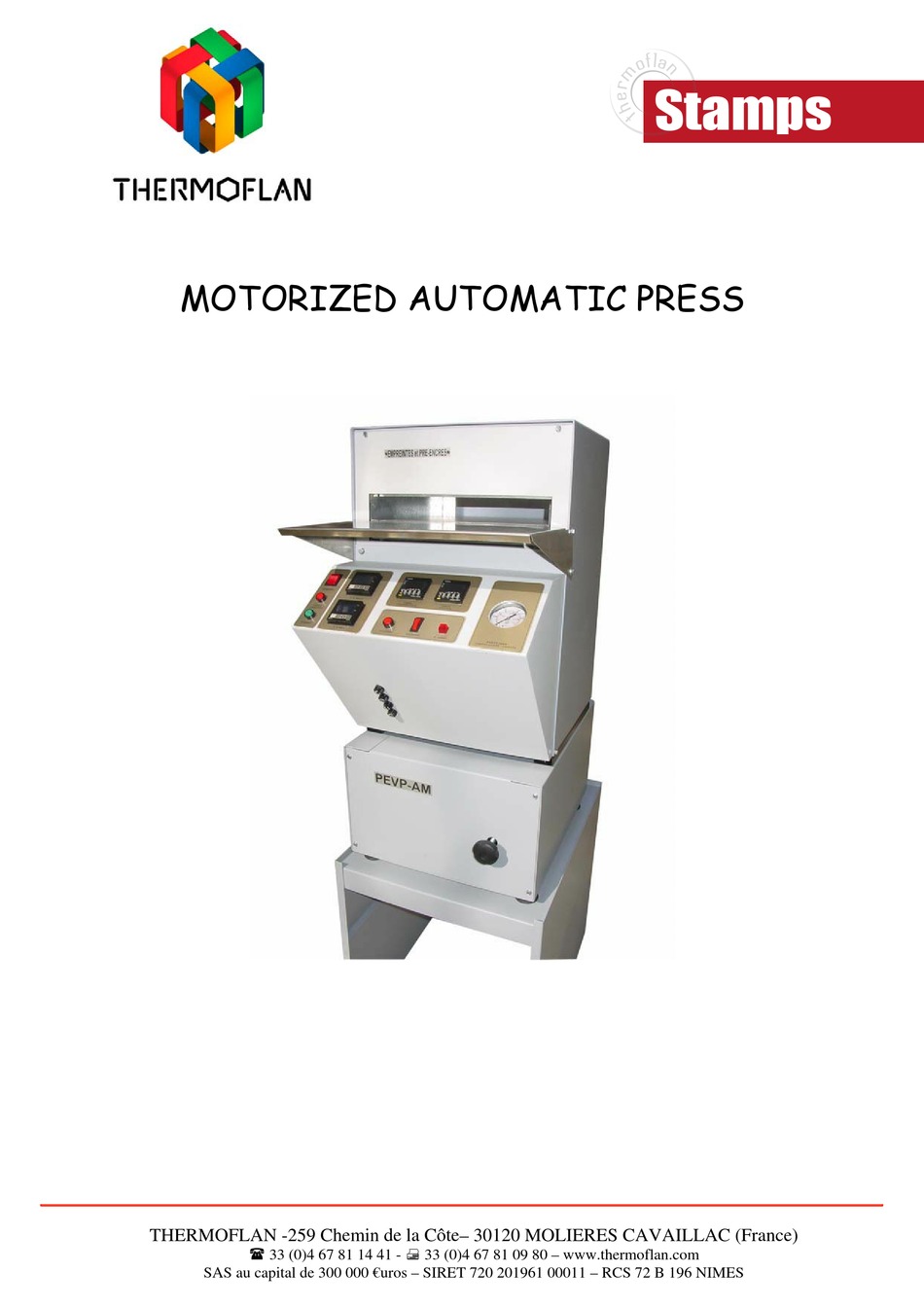

- Page 1 THERMOFLAN -259 Chemin de la Côte– 30120 MOLIERES CAVAILLAC (France) 33 (0)4 67 81 14 41 - 33 (0)4 67 81 09 80 – www.thermoflan.com SAS au capital de 300 000 €uros – SIRET 720 201961 00011 – RCS 72 B 196 NIMES...

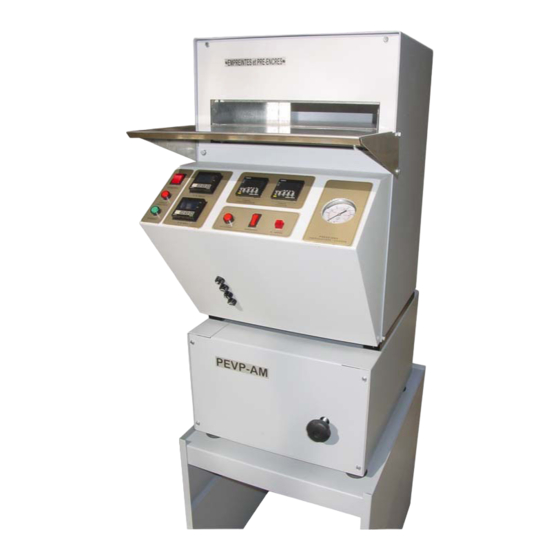

- Page 2 PRESENTATION: Motorized moulding and vulcanizing press (sizes 350 x 300 mm) for rubber and pre-inked stamp making. Automatic functioning limits user handling and time to parameter programming (temperatures, preheating and cooking times, cooking pressure). Pressing a single key automatically starts de procedure : platen rising, contact during preheating time, degassing, pressure and cooking, press opening and alarm when the programmed time is over).
- Page 3 CONTROL BOARD MARCHE/ARRET : ON/OFF switch DEPART :push this button to start the cycle ARRET URGENCE / EMERGENCY STOP : the cylce is stopped and the lower platen comes down Upper platen temperature controller Lower platen temperature controller Preheating timer : user sets the preheating time. When « DEPART » is pressed, this timer starts up to the programmed time , then degass materials for 2 seconds.
- Page 4 - when « DEGAZAGE » is pressed (the light goes off when the button is released) - for 20 sec. or so , as soon as the cycle is over, when the cooking timer reaches the programmed value Manometre: shows the pressure (in bars) inside the hydraulic circuit .User can have no action on the preheating pressure but can set cooking pressure by means of the pressure controller lever (lower part of the press).
- Page 5 TIME SETTING : preheating and cooking Wheels to set minutes and seconds for preheating and cooking times. RESET : the timer reset corresponds to the end of the programmed time. . Timer state control light Actual counted time Programmed time N.B : Programmed times can be changed during the cycle, they will be immediatly taken into account.
- Page 6 Temperature setting: press 1 , than 2 or 3 key to increase or decreased temperature to be programmed. Temperature decrease (press button 1 first ) Temperature increase (press button 1 first ) The upper light on means that the heating elements of the corresponding platen are working.
- Page 7 TO MOULD RUBBER IN THE MOLD (see directions for use of the product ) Set preheating time to 1min 30s Set cooking time to 13 min. Set upper and lower platen temperature to 140°C Check pressure value Switch on ringing Place mold and rubber between proper bearer bars inside the Push «...
