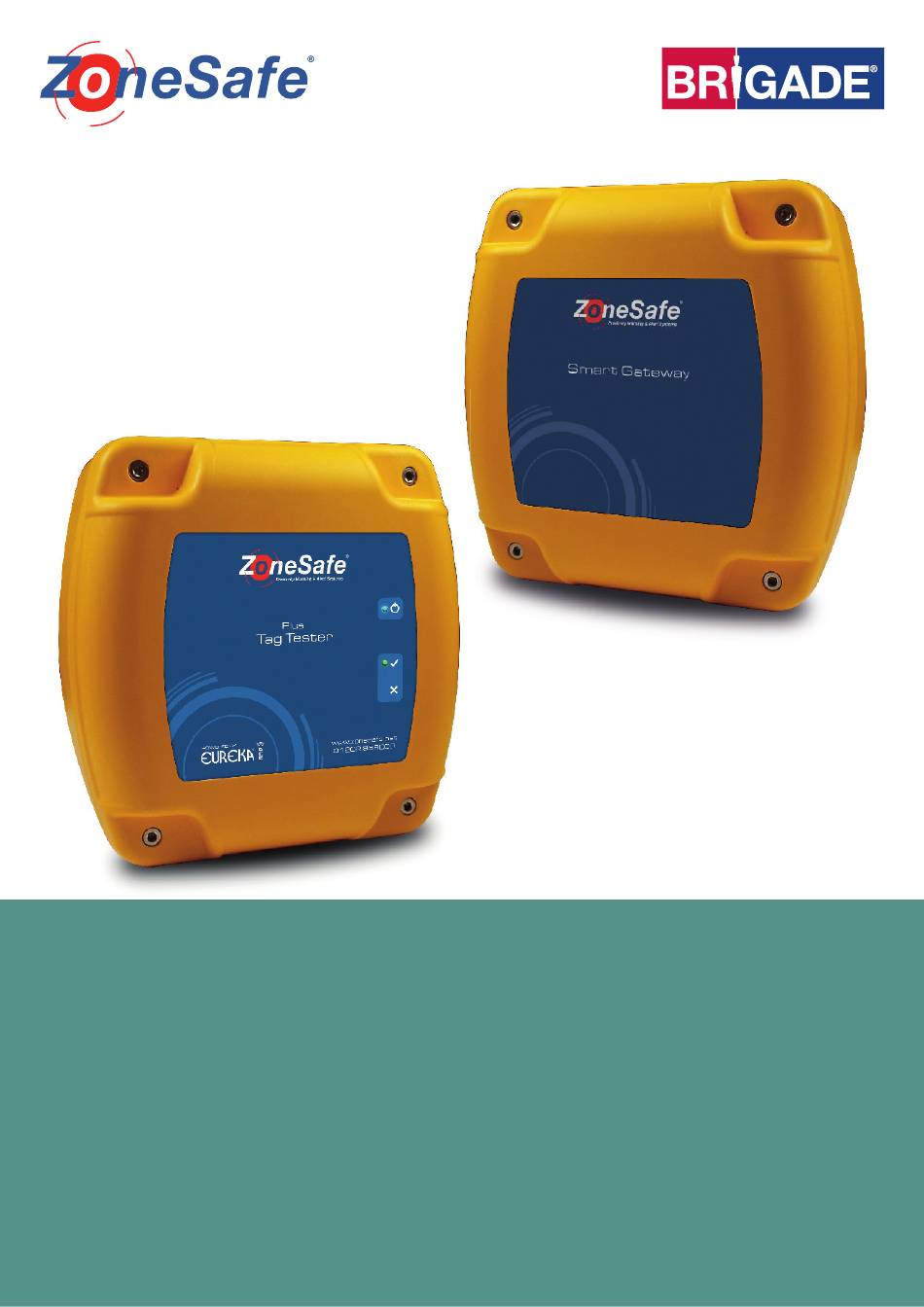

- Page 1 ZoneSafe Us er Man ual Ta g Tes t e r - ZS - 1000-TT Sm a r t Ga te w a y - ZS -100 0-S G www.brigade-electronics.com...
-
Page 2: Table Of Contents
Independent Antenna Unit. Information in this document is subject to change without notice.You do not have permission to reproduce, publish or share any part of this document either electronically or printed in part or full without prior written consent from Brigade Electronics. -
Page 3: Tag Tester
2. Tag Tester 2.4 LED Indicators 2.1 How It Works The Tag Tester tests the status of any ZoneSafe active tag. The unit reads a tag and displays the status of the battery, using red or green indicator 1. Present the tag within range of the Tag LEDs and optional audible indicators. -
Page 4: Specification
3.3 Specifi cation NOTE: ZoneSafe must be fi tted and commissioned by an approved installer. No responsibility will be accepted for damage to systems caused by incorrect installation or misuse. Detection accuracy will Smart Gateway depend on environmental and installation factors. Electrical Voltage 24V DC Input (+/-5%... -
Page 5: Additional Brackets
SCALE 1 :3 SECTION C-C SCALE 1 : 1 4.4 Adaptor plates • Alternatively use the AMPS hole confi guration for RAM Mount Fixtures, use 1.5” ball fi ttings. • Back fi x with the four AMPS holes to suit your application. NOTE: • Shake-proof washers are recommended and thread locking liquid can also be used. Please make a note of the An adaptor plate is available for all the units. -
Page 6: Wiring For Tag Tester & Smart Gateway
5.0 Wiring For Tag Tester & Smart Gateway 5.1 Tag Tester Range Adjustment SECTION B-B SCALE 2 : 1 RV1 - Range DRILL POINT DRILL POINT HOLE FOR POE DAUGHTERBOARD HOLE FOR POE CONN4 Turn clockwise to increase the detection range or anti-clockwise to reduce the range 200.00 AMPS... -
Page 7: Poe Daughter Board Kit
5.2 PoE Daughter Board Kit 6. Configuration & Settings The PoE (Power Over Ethernet) Daughter Board is fitted to the Reader PCB as shown in Figure 4 below. The range on the Reader can be adjusted to detect tags between 1 and 4 metres away. The adjuster is marked as on page 11. Using a flathead screwdriver, turn the adjuster to change the size of the detection zone. • Turn the adjuster clockwise to increase the size of the detection zone •... -
Page 8: Tag Tester & Smart Gateway Settings
6.2 Tag Tester & Smart Gateway Settings 7. FCC Compliance Information Once connected, the user can access the following Reader settings via the internal webpage: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the 6.2.1 General equipment is operated in a commercial environment. - Page 9 www.brigade-electronics.com 4017...
