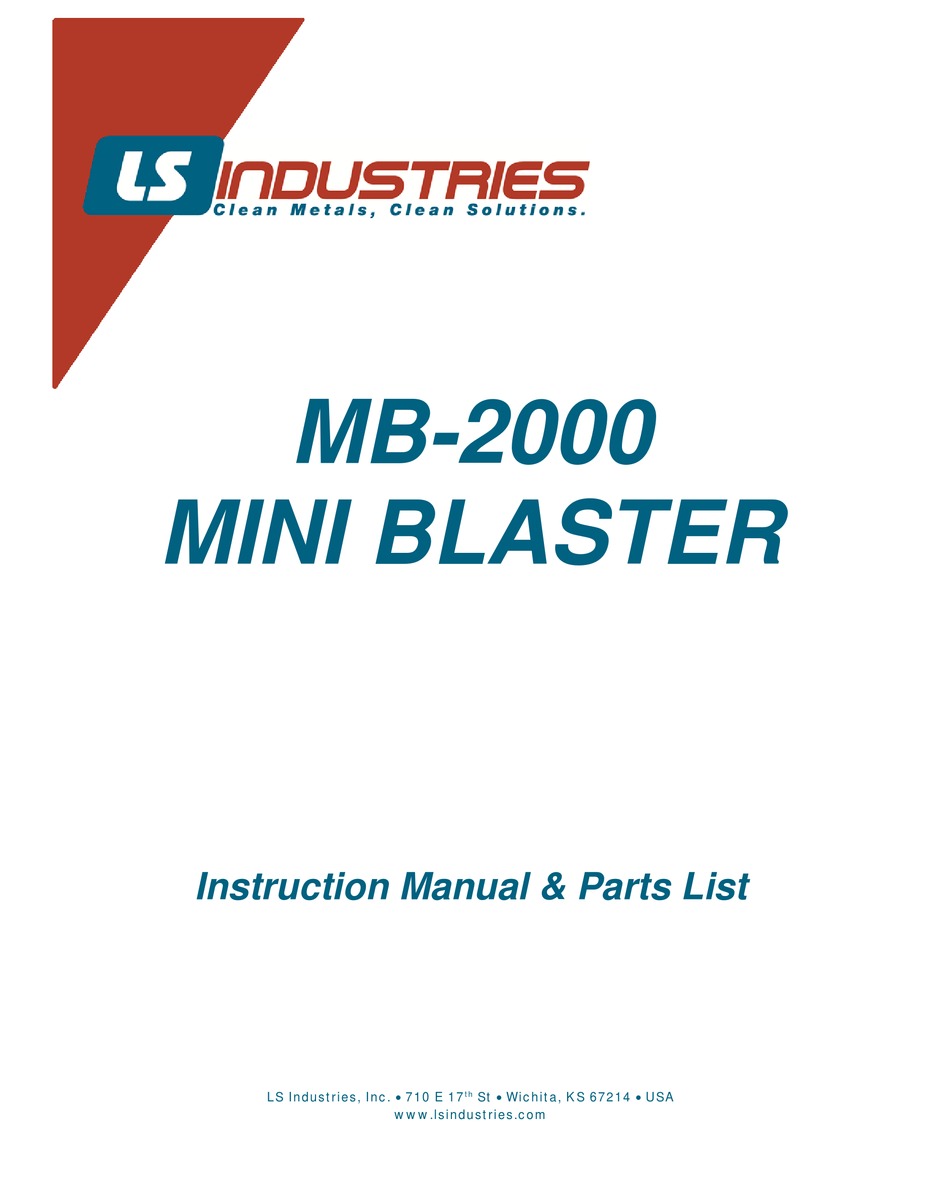

- Page 1 MB-2000 MINI BLASTER Instruction Manual & Parts List LS Industries, Inc. 710 E 17 St Wichita, KS 67214 USA www.lsindustries.com...
- Page 2 LS Industries, 2012 710 E 17 Wichita, KS 67214 Phone (800) 835-0218 • Fax (316) 265-0013 www.lsindustries.com...
-
Page 3: Table Of Contents
T able of Contents 1. About the Mini Blaster.......... 1 2. Safety Considerations..........2 3. Installation............4. Shot Selection............8 5. Operation............... 9 6. Maintenance............12 7. Troubleshooting............ 16 8. Warranty..............17 9. Appendix............... 18... -
Page 4: About The Mini Blaster

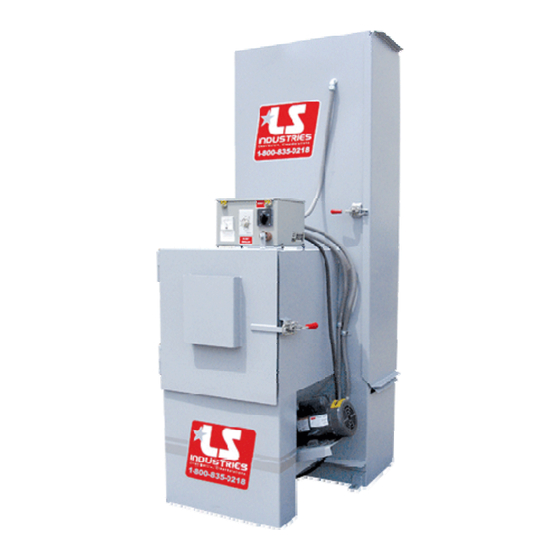

M I N I B L A S T E R The MB-2000 he LS MB-2000 mini blaster is an airless shot blasting machine designed to rapidly and economically remove paint, scale, rust and other surface imperfections from a variety of forgings, castings, welded assemblies and other small metal parts. -
Page 5: Safety Considerations
C O N S I D E R A T I O N S Mini Blaster Safety The MB-2000 mini blaster has been designed and manufactured with safety as a primary consideration. However, due to the nature of any industrial machine, the potential for injury can be created by misuse, incorrect operation or improper maintenance. - Page 6 S A F E T Y C O N S I D E R A T I O N S WARNING Do not mix combustible materials such as aluminum, paper, wood or organic dusts with metal dust. When collecting flammable or explosive materials, locate the collector outdoors. WARNING Do not blast parts wet with solvent or other flammable liquids.
- Page 7 S A F E T Y C O N S I D E R A T I O N S CAUTION Ensure only dry air is allowed into the dust collector. Moist air can clog the cartridge filters and will result in suboptimal filtration. Blaster Safety Warnings WARNING All blasters produce sparks during the blasting process.
- Page 8 S A F E T Y C O N S I D E R A T I O N S CAUTION Never tamper with or attempt to disable safety mechanisms installed on the mini blaster. Doing so will create unnecessary danger, and will void the warranty.
-
Page 9: Installation
Placement and Assembly The MB-2000 Mini Blaster is shipped as one entire unit, ready to connect to the electrical power supply. The MB-2000’s internal dust collector is powered by the same electrical connection that powers the blaster. Very little assembly beyond power connections is necessary. - Page 10 I N S T A L L A T I O N use with aluminum conductors are provided. LS does not supply these terminals. Checking Impeller Rotation After the mini blaster has been installed and connected to appropriate air and power supplies, it will be necessary to check the impeller rotation direction.
-
Page 11: Shot Selection
S H O T S E L E C T I O N Shot Selection LS Industries’ blasters are designed for years of service and quality performance. For best performance, and to preserve the operational life of the blaster, LS recommends the use of only top quality shot in the machine. -
Page 12: Operation
General Operation After setting the desired parts into the basket, close the door to the blaster. The MB-2000 mini blaster is equipped with a door safety limit switch to prevent the blaster from operating with the door open. For operation to commence, this switch must be depressed by the door. - Page 13 O P E R A T I O N During operation, check the amperage meter to ensure the correct amount of shot is present in the blaster. The correct range will be listed on the electrical box near the amperage meters. If there is too much shot present in the mini blaster, the amperage will be high.
- Page 14 O P E R A T I O N they tumble in the basket. The dust collector will turn on whenever the basket drive is activated. If any parts fall through the basket, or do not tumble properly, make appropriate adjustments. Leave the parts basket with enough empty room so that proper cleaning can occur.
-
Page 15: Maintenance
M A I N T E N A N C E Maintenance Maintenance should only be performed by qualified personnel. General Maintenance Inspect and service the following for wear monthly: 1. Impeller blades. If blades are excessively worn, replace the entire set. - Page 16 Replacing the Drive Motor Before conducting any maintenance on the MB-2000 Mini Blaster, disconnect the electrical power and lock the machine in the “Off” position. Remove the bolts holding each impeller blade to the impeller hub, and take the blades off.
- Page 17 Replacing Impeller Blades Due to the abrasive nature of metal blasting machines, some equipment on the MB-2000 Mini Blaster will be subject to extreme wear. Although LS Industries has used high quality materials in the construction of such equipment, these parts will eventually need replaced.
- Page 18 M A I N T E N A N C E Two-blade impeller Adjustable side wear rotates counter clockwise plates must allow to throw shot to the front ” of clearance to impeller blades Figure I. MB-2000 wheel well replacement part diagram.
-
Page 19: Troubleshooting
T R O U B L E S H O O T I N G Troubleshooting Problem: Parts exit the blaster with a dull finish. Solution: A lack of dust removal is likely the problem. Make sure that dust has been emptied from the dust collector and that there is no packed dust on the sides above the cleanout door. -
Page 20: Warranty
W A R R A N T Y One Year Limited Warranty LS Industries, Inc., (“LS”) warrants for a period of twelve (12) months from date of shipment by LS to the original purchaser (“Buyer”) that Equipment manufactured by LS will be free from defects in materials and workmanship when installed and operated in accordance with the instructions in the Equipment manual. -
Page 21: Appendix
A P P E N D I X Appendix Electrical Diagram Parts List... - Page 22 MB ELECTRICAL 1/220/60 LS PART NUMBER PART DESCRIPTION 408979 CIRCUIT BREAKER 4.5-18 AMP 1PH 409596 FUSE BLOCK 600V 30A 1P FINGERSAFE 489999 FUSE MIDGET 250V 10AMP 490051 GROUND LUG, SMALL 490104 AMP METER, 0-15 490112 BOX NEMA 12 A1210 8 DEEP 490113 BOX NEMA 12 X 10 PANEL 490132...
- Page 23 MB2000 MOTORS LS PART NUMBER PART DESCRIPTION 341004 MOTOR-IND, 1HP, 1/220, 3450, 56FR 341006 MOTOR-IND, 2HP, 1/220, 3500,145T 341110 GEARMOTOR 90RPM 1/6HP 1PH 60-50HZ 349066 PULLEY, BK24 5/8 200026-HT BASKET MB-1 AFTER H/T BEFORE FINISH 200036 LATCH, SPRING-LOADED HINGE...
- Page 25 M B - 2 0 0 0 P A R T S L I S T MB-2000 MECHANICAL PARTS LIST PART NO DESCRIPTION QTY U/M 341006 MOTOR, 2 HP, 220 V, 1 PH, 3450 RPM 1.00 MOTOR SPACER, 5/8" X 1.06" OD X 0.89" ID 1.00...
- Page 26 M B - 2 0 0 0 P A R T S L I S T MB-2000 ELECTRICAL PARTS PART NO DESCRIPTION QTY U/M 490112 BOX, NEMA 12, 12" X 10" X 8" 1.00 409364 BOX, PANEL, 12" X 10"...
