LC-1 Accessories:
LMA-3: Auxiliary Input #3 (AuxBox- RPM, Temp,
Duty Cycle, Acceleration, Boost/MAP): #3742
DL-32 (32 Channel Vehicle Mounted Data-Logging System)
#3782

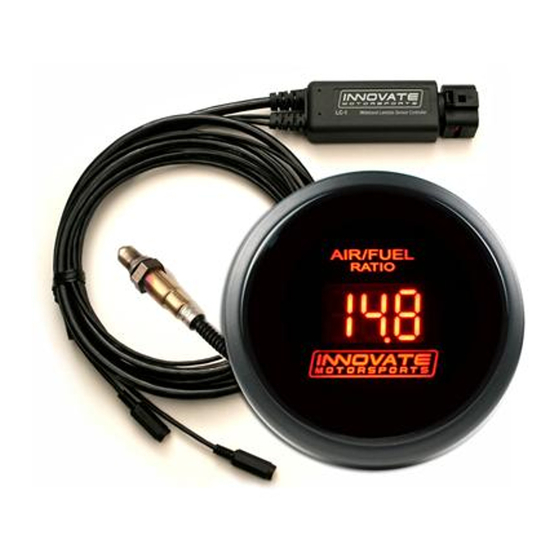

XD-16 (Air/Fuel Digital Gauge) #3780
Exhaust Clamp: #3728
Stainless Steel Bung w/ Steel Plug" #3736
HBX-1: Heat-sinking Bung Extender: #3729
Replacement Parts:
Terminator Plug: #3750
MTS 2.5mm to 2.5mm serial cable: #3760
Bung/Plug set: #3735
Sensor (Bosch LSU4.2): #3737
Serial Programming Cable: #3746
Order parts, get support, find FAQ answers, and read case
studies at www.tuneyourengine.com
Warning!
1) The Oxygen Sensor used with this device gets very hot in
operation. Do not touch the hot sensor. Do not let a hot sensor
touch a combustible surface. Do not use the sensor with or near
flammable liquids or gases. Failure to heed these warnings may
result in severe burns, explosions or fires. 2) When installed in
the exhaust, the oxygen sensor MUST be connected and
operating with the LC-1 whenever the car is running. An un-
powered oxygen sensor will be quickly damaged when exposed
to hot exhaust gases.
< (10-2303.B)
LC-1 (Lambda Cable)
QUICK START GUIDE
The complete instruction manual is on the CD
1) The Oxygen Sensor used with this device gets very hot in operation. Do not touch
the hot sensor or let a hot sensor touch a combustible surface. 2) When installed in
the exhaust, the oxygen sensor MUST be connected and operating with the LC-1
whenever the car is running. An un-powered oxygen sensor will be quickly damaged.
Warning!
Advertisement
Related Manuals for Innovate Motorsports LC-1
Summary of Contents for Innovate Motorsports LC-1
- Page 1 2) When installed in result in severe burns, explosions or fires. 2) When installed in the exhaust, the oxygen sensor MUST be connected and operating with the LC-1 the exhaust, the oxygen sensor MUST be connected and whenever the car is running.
- Page 2 After the to a switched 12V power source, make sure the connection is first time use the LC-1 will use these values to regulate the sensor's fused with a minimum fuse size of 5A. The BLUE and WHITE temperature.
