ANYWAVE

MSP

Multi-Stream Processor

User Manual

Version 1.6

TSP-EAS-1

May 10, 2017

Table of Contents

Need help?

Do you have a question about the TSP-EAS-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anywave TSP-EAS-1

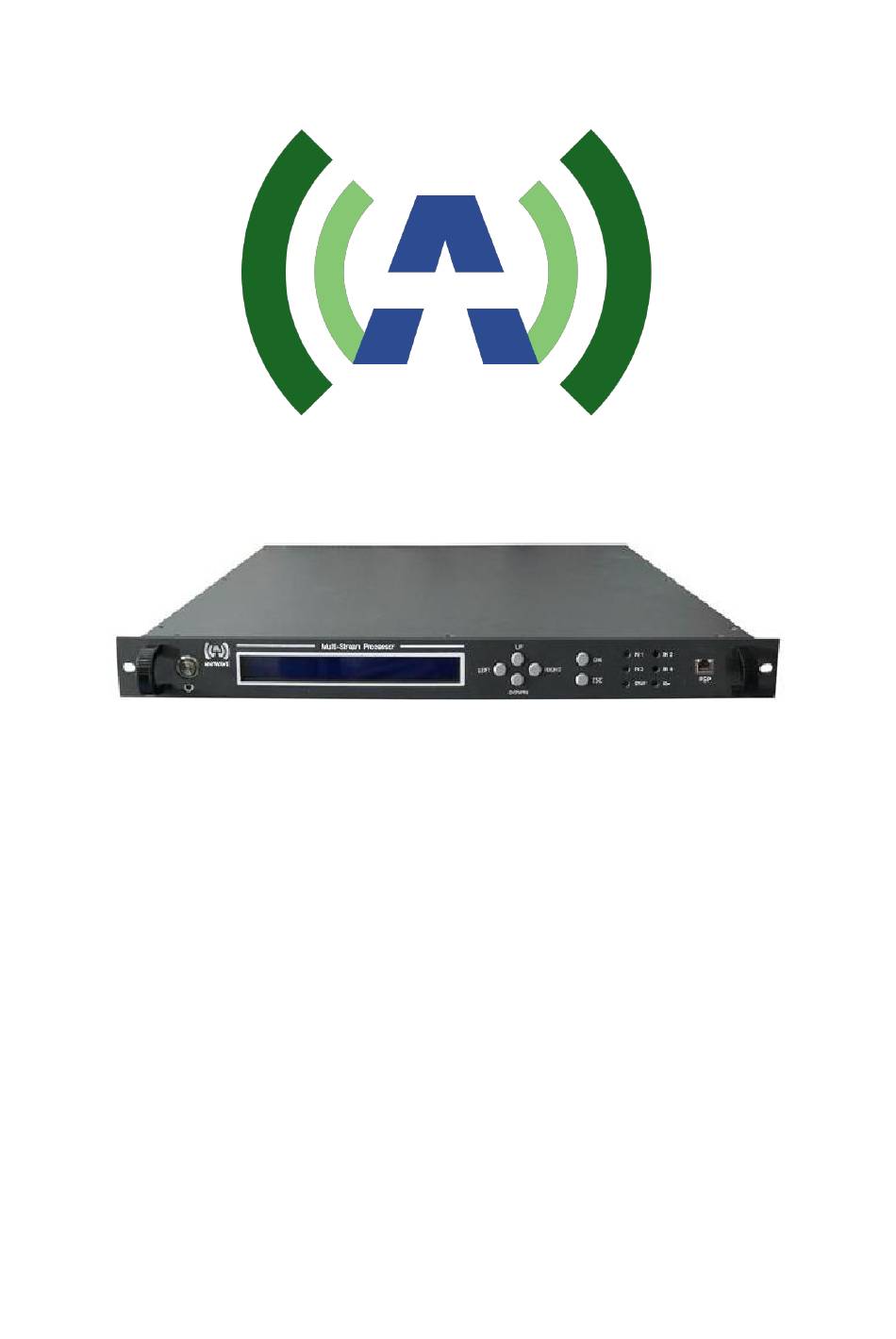

Page 1 ANYWAVE Multi-Stream Processor User Manual Version 1.6 TSP-EAS-1 May 10, 2017...
Page 2 Copyright © Anywave Communication Technologies, Inc. 2015, All rights reserved. No part of this publication may be reproduced, translated, transcribed, stored in a retrieval system, or transmitted into any form or by any means, without the express written permission of Anywave Communication Technologies, Inc.
Page 3: Table Of Contents
TSP-EAS-1 User Manual Contents 1 Product Appearance ..................4 1.1 Front Panel ..................... 4 1.2 Back Panel ..................... 5 2 Operation Specifications ................... 6 3 Menu ......................... 8 3.1 Initialization ....................8 3.2 Query Mode ....................8 3.3 User Menu ....................10 3.4 Advanced Menu ...................
Page 4: Product Appearance
TSP-EAS-1 User Manual 1 Product Appearance 1.1 Front Panel LCD: 40×2 LCD with power saving backlight 6 Buttons : Left, Right, Up, Down, OK, ESC 6 LEDs: IN1: When illuminated, CVBS IN1 or SDI IN1 is connected. When flashing, EAS is triggered.
Page 5: Back Panel
TSP-EAS-1 User Manual 1.2 Back Panel SDI IN 1: Serial digital interface input #1 SDI IN 2: Serial digital interface input #2 SDI IN 3: Serial digital interface input #3 SDI IN 4: Serial digital interface input #4 CVBS 1:...
Page 6: Operation Specifications
TSP-EAS-1 User Manual 2 Operation Specifications  Environment  Operating Temperature: -10 ~ 50  ≤ 95% Operating Humidity:  Atmospheric Pressure: 86 kPa ~ 106 kPa  Power Supply  Voltage: 88 ~ 264 VAC  Frequency: 50 / 60 Hz ...
Page 7 TSP-EAS-1 User Manual  Location: Back Panel  ASI OUT 1/2  Connector: BNC female  Impedance: 75 Ω  Location: Back Panel Table 1 ASI Input Specifications Content Unit Value  200 Input Level  1200 Positive Transition (20%~80%) ...
Page 8: Menu
TSP-EAS-1 User Manual 3 Menu 3.1 Initialization Connect the power supply of the unit and then turn on the MSP via the power switch located on the rear panel. The initialization process takes about 10 seconds to finish for the main unit and about 30 seconds to finish for the (optional) dynamic PSIP module.
Page 9 TSP-EAS-1 User Manual CVBS Note: The “ASIIN” in Error! Reference source not found. shows the status of the ASI input. If no TS is etected and locked in the ASI input, the status shows “N/A”, if TS is detected and locked in the ASI input, the status will alternate between the TS actual rate(Mb/s) and the number of programs in the TS.
Page 10: User Menu
TSP-EAS-1 User Manual 3.3 User Menu In Control mode, the user may modify configuration settings of the MSP. There are two levels of control, the User Menu and the Advanced Menu. To enter the User Menu, press both the "Left" and "Right" buttons at the same time while in query mode.
Page 11 TSP-EAS-1 User Manual If there is no TS detected and locked on a particular ASI input, ASI_IN sub menu will show “NULL” Table 10 MUX_OUT Menu CTRL PSIP_BW TS_RATE PROGRAM Default Static 500kb 19.390Mb (see PROGRAM sub-menu) Static Options Dynamic...
Page 12 TSP-EAS-1 User Manual 2) If select option “AUTO”, MSP will first search signals from CVBS input and convert to SDI output, if no signal detected, MSP will then search signals from SDI input and convert to SDI output. 3) If select option “CVBS”, MSP will always search signals from CVBS input and ignore signal from SDI input.
Page 13: Advanced Menu
999999999999 Note: "SN" shows the serial number of this unit. "PSIP_KEY", MSP needs a valid KEY to enable static PSIP feature, please contact Anywave to obtain a valid KEY. “MAC” shows the mac address of the RJ45 management port. Table 17 PSIP Menu...
Page 14: Management Gui Software
TSP-EAS-1 User Manual 3.4 Management GUI Software The MSP uses a Management software interface to accommodate remote control and monitoring via the rear port REMOTE RJ-45 connection. Once you network the MSP with your PC and login to the interface, you can configuration and monitor the status of the MSP via the Management software.
Page 15 TSP-EAS-1 User Manual Click “Edit” -> “Add Branch” to add a Branch Click the branch you created and click “Edit” -> “Add Equipment” to add a MSP Version 1.6 5/10/2017 Page 15 of 30...
Page 16 TSP-EAS-1 User Manual Click on the MSP name created to start configuration and view the status of this particular MSP. There are 4 tabs across the left top of the window:  Input: Configure the multiplexor, select programs, change PID, edit static PSIP, etc.
Page 17 TSP-EAS-1 User Manual There are 2 sub-tabs under Input: MUX and TS.  After any of the 4 ASI inputs are connected and a valid TS is present, you can choose (cherry pick) which programs are to be multiplexed into the output ASI TS, MSP supports up to 8 programs to be selected into the output ASI TS.
Page 18 TSP-EAS-1 User Manual  In “PAT/PMT” table, you can define the program_number (Prog Num), PCR_PID, and element_PID (ELM PID) by double clicking the entry of each stream.  Either hex (start with 0x) or decimal are allowed for entering of PIDs.
Page 19 TSP-EAS-1 User Manual Output  “TS Rate Max(Mb)” Specify the output TS rate in Mbps  “PSIP Bandwidth(Kb)” Specify the Dynamic PSIP overhead in Kbps   Select the PSIP source “PSIP” Static: use the MUX’s built-in static PSIP insertion...
Page 20 TSP-EAS-1 User Manual to SDI output. If select option “CVBS”, MSP will always search signals from CVBS input and ignore signals from SDI input. If select option “SDI”, MSP will always search signal from SDI input and ignore signals from SDI input.
Page 21 TSP-EAS-1 User Manual Status  “Get”  Click “Get” to refresh MSP’s current status  ASI IN “Program Num”  Displays the number of programs of the particular ASI input. “TS Rate (Mb)”  Displays the TS rate in Mb for the particular ASI input.
Page 22 TSP-EAS-1 User Manual  PSIP “PSIP”  Displays the PSIP insertion source. “STATUS”  Displays if MUX receives the PSIP data from dynamic PSIP module, valid only when PSIP source is Dynamic. “Overflow”  Displays if the received PSIP data rate exceeds the PSIP bandwidth, valid only when PSIP source is Dynamic.
Page 23: Connection
TSP-EAS-1 User Manual 4 Connection 4.1 Connect the MSP  Don’t turn On or Off the exciter when the transmitter is running. The correct order is:  Connect REMOTE and PSIP to network with RJ45 port.  Turn on the MSP.
Page 24: Troubleshooting
TSP-EAS-1 User Manual 5 Troubleshooting 5.1 ASI Input  ASI Input ERROR  Alarm message  LCD: ASIIN# N/A  LED_ ERR: Constant ON  Cause: Input signal to ASI input is lost or has invalid format.  Solution: Check the stream to make sure input signal has valid format.
Page 25: Dpsip
TSP-EAS-1 User Manual  LCD: ASIOUT# N/A  Cause: There is not valid TS in ASI input, or user has not selected a program to be muxed into the ASI output  Solution: Check stream of ASI input, and make sure programs are selected correctly in the control GUI.
Page 26: Dynamic Psip Module (Optional)
TSP-EAS-1 User Manual 6 Dynamic PSIP module (optional) MSP provides an optional Dynamic PSIP module, it’s configured separately to the MSP. It is accessible via the front PSIP RJ-45 port. The default IP address for Dynamic PSIP module is 192.168.1.80.
Page 27 TSP-EAS-1 User Manual Note: 1. Network Interface (eth0) is used to configure the communication interface to MSP, DO NOT change this setting. 2. Network Interface (eth1) is the management interface for Dynamic PSIP module, please change this setting accordingly with your network setting and hit “Apply Changes” on the bottom of the page to submit the change.
Page 28: System
Dynamic PSIP module. Note: 1. If you are using Anywave txt format as the ingest service data of the PSIP generator, you must set the correct time zone to the DPSIP module, since Anywave txt is using local time. Other formats are using UTC time so correct time zone is not a must.
Page 29: Psip Generator
After Network is properly setup and connection to the Dynamic PSIP Module is acquired, you can use PSIP Client software to configure the PSIP Generator. Please refer to Anywave PSIP Client User Manual for the configuration of the PSIP Generator.
Page 30 TSP-EAS-1 User Manual Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ Version 1.6 5/10/2017 Page 30 of 30...
