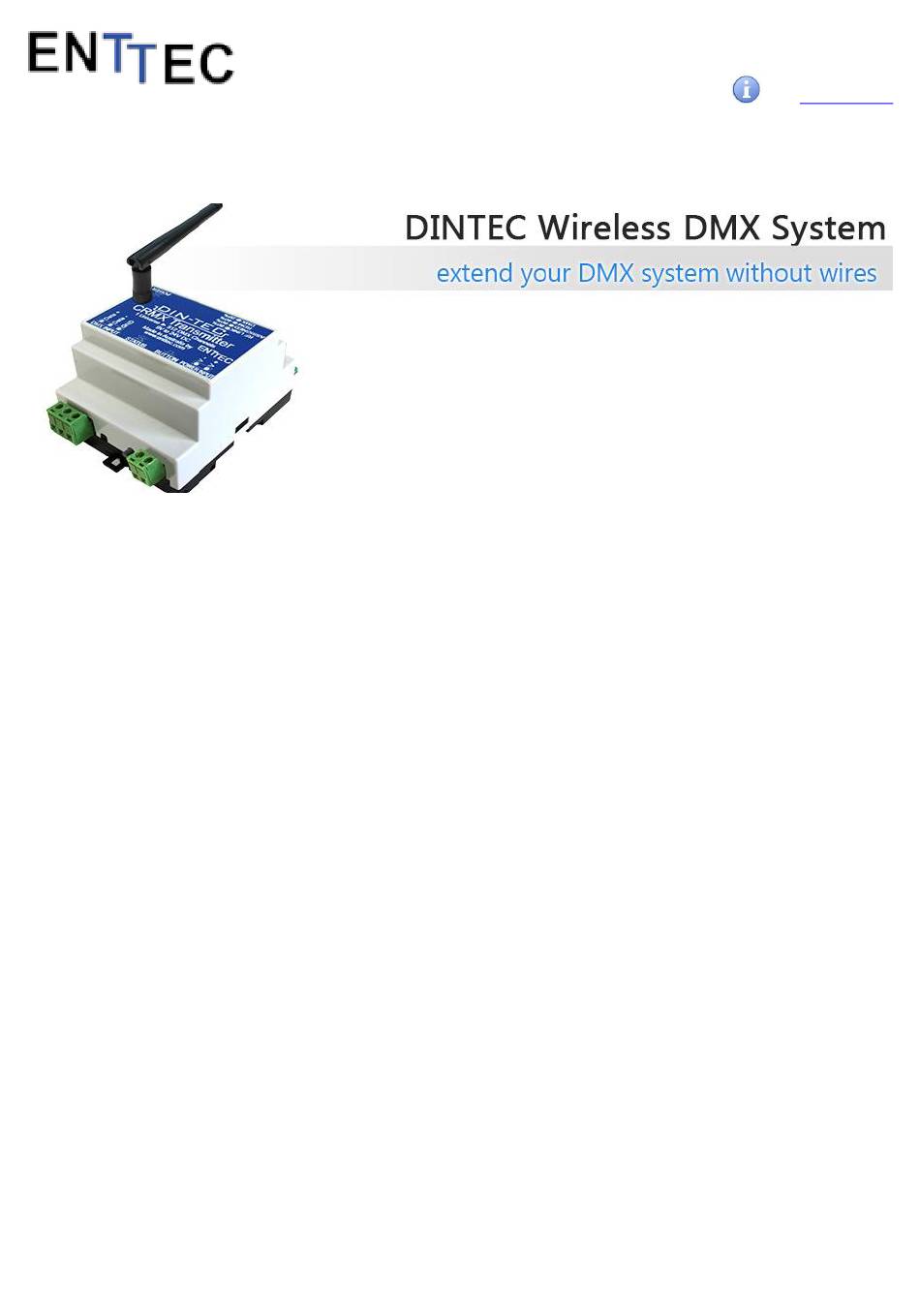

Enttec DINTEC 71015 Quick Start Manual

General Information

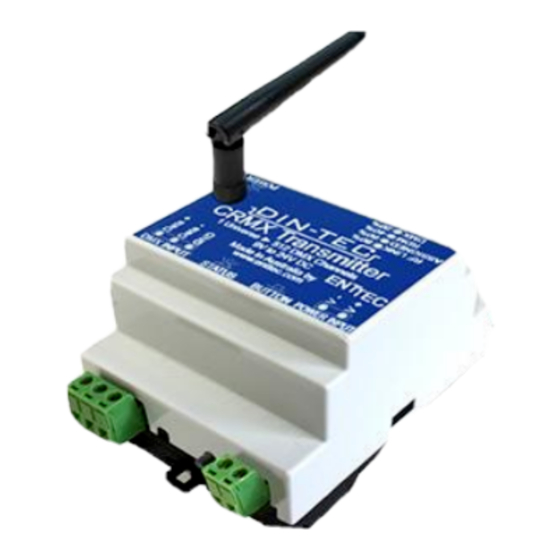

• The DINTEC Wireless DMX is a 2.4GHz wireless
device featuring wireless DMX transmitter and
receiver based on CRMX technology
The Wireless transmitter takes one universe DMX
•
as input signal and transmits it to one or multiple
DINTEC Wireless DMX receivers.
• The DINTEC Wireless receivers will only link to
DINTEC Wireless transmitter and vice-versa.
Only one DMX Transmitter is allowed, however
•
multiple DMX Receivers can be used in one setup.
• This device will require an external DC power
supply (9V-24VDC output, not included), for
normal operation.
Features
2.4GHz wireless transmitter / receiver
•
• Fully compliant with USITT DMX512-A
• 1-830Hz DMX frame rate
• Frame synchronisation is less than 0.01ms
End-to-end DMX latency less than 5ms
•
• Automated cognitive coexistence
• One touch Link to pair devices
1
Dynamic adaptive frequency hopping
•
• Recovery time upon loss of radio link is less than 1s
• Full DMX fidelity and frame integrity
• Error correction and packet recovery
DIN RAIL mountable
•
Safety
Do not expose the DINTEC Wireless to rain or

moisture, doing this will void the warranty
Do not remove the cover, there are no serviceable

parts inside
This unit is intended for indoor use only

Applications
Employ the DINTEC Wireless system, if you need wireless
transmission between DMX devices. Example usages:
Architectural Lighting

Fixed installations

Stage lighting

Home improvements

Office lighting

Quick Start Manual
MANUAL-Wireless-DMX
For latest version visit:
www.enttec.com
ID: 192905
