BEKA Schreder SOLARPOLE Quick Start Manual

Post top

Advertisement

SOLARPOLE
Post Top
Complete solar unit:
The light source fitted in this luminaire shall only be
replaced by a BEKA Schréder employee or agent or a
ENG
similar qualified person. The installation of this product
must be conducted by a qualified electrical person.
For detailed dimensions, please
refer to the SOLARPOLE brochure
Note: Batteries to be recharged
before use

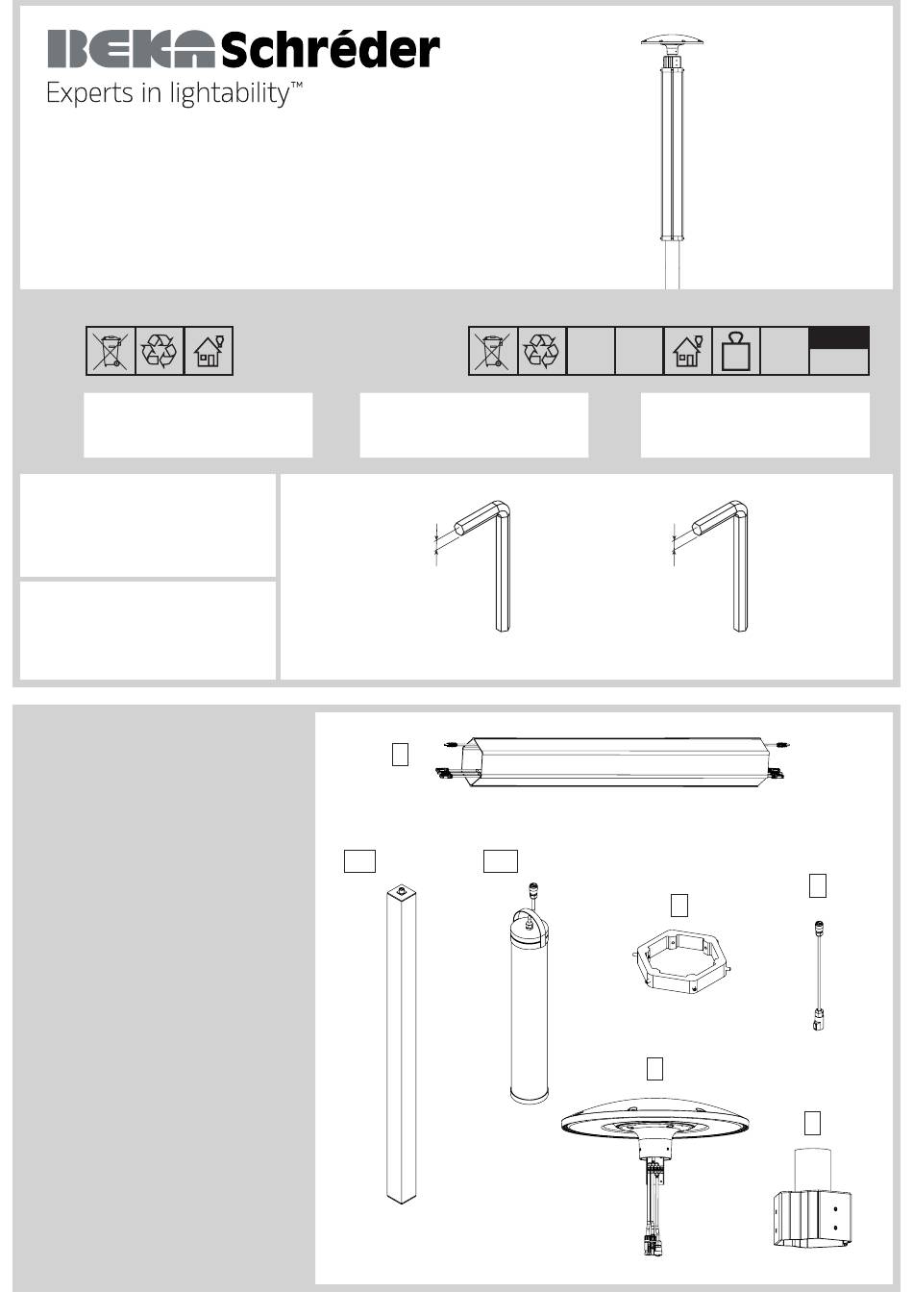

Item List

Quantities will vary depending on the
configuration.
1.
Solar panel
2.1 Battery: SuperCapacitor (x1)
2.2 Battery: Lithium-Ion (x1)
3. Panel bracket (2 x sets)
4. SuperCapacitor cable
(if applicable)
5. Luminaire
6. Spigot
Luminaire:
La source de lumière intégrée dans ce luminaire peut
uniquement être remplacée par un employé de
FRA
BEKA Schréder, un agent ou une autre personne qualifiée.
L'installation de ce produit doit être effectuée par un
électricien qualifié.
3
Please note: Tools are not included (except for 1 x T40 bit)
1
2.1
2.2
SANS
IP 66
4.9
60598
kg
A fonte de luz montada nesta luminária só pode ser
substituída por um funcionário ou agente da BEKA Schréder
POR
ou por profissional qualificado autorizado para o efeito. A
instalação deste produto deve ser realizada por uma pessoa
elétrica qualificada.
4
3
5
IK
12V
10
4
6
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLARPOLE and is the answer not in the manual?

Questions and answers

Summary of Contents for BEKA Schreder SOLARPOLE

  • Page 1 électricien qualifié. elétrica qualificada. For detailed dimensions, please refer to the SOLARPOLE brochure Note: Batteries to be recharged before use Please note: Tools are not included (except for 1 x T40 bit)
  • Page 2 1.1 Lithium-Ion 1.2 SuperCapacitor 13 N.m. Please note! Gently insert the battery into the pole until it reaches the stopper! 13 N.m.
  • Page 3 Red cables! 13V-18V Red cables!
  • Page 4 6 N.m. 11.1 Lithium-Ion 11.2 SuperCapacitor Item 5 Plug & Twist Plug & Twist...
  • Page 5 Click 13 N.m. Push cables into cavity behind panel...
  • Page 6 Troubleshoot Problem Possible Cause Solution Battery cable terminals loose Check battery terminals are tightly fastened with spanner. Check battery voltage is above 11.3V. Remove battery and charge using Battery over discharged. Exceeded AC power or disconnect load for 2 days to allow batteries Autonomy days.
  • Page 7 Pole Planting Specification Buried Pole Foundation dimensions Pole Backfill ratio Buried Plinth strength length (mm) width x length x depth (mm) 6m surface mount 900 x 900 x 900 Class 10 Concrete 8m surface mount 900 x 900 x 900 Class 10 Concrete 6m buried Ø600 auger...
  • Page 8 www.beka-schreder.co.za...
