BOQF10 Series Quick Fit Adapters
For universal BOQF10, BOQF10H
(w/manual or hydraulic lock)
Including model specific variants.
BOQF10 Series

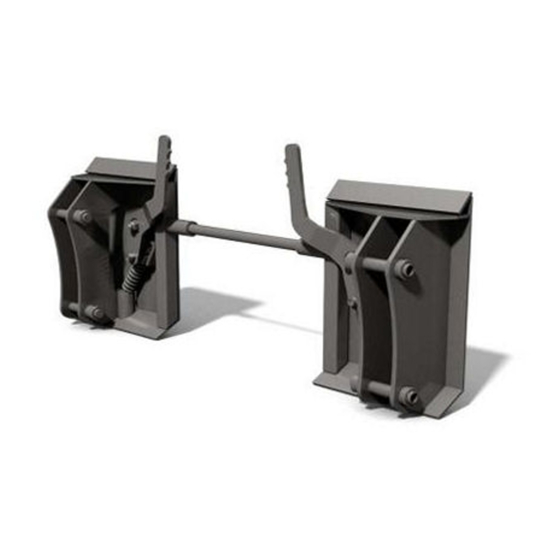

HLA attachments quick fit adapter converts your skid steer pin-on style loader to the universal skid
steer style quick fit setup, allowing you to use a greater variety of attachments. Its a great way to in-
crease the versatility of your skid steer or compact loader.
This kit is specially designed for skid steer and compact loaders for use with quality HLA attachments
as well as other attachments outfitted with universal mounts.
Typically when you receive your adapter it has been configured to fit your loader. All that is required is
to remove your current attachment and replace it with the BOQF10 quick fit adapter. When installing
the quick fit adapter, be sure to use the new pins supplied with the adapter to ensure optimum per-
formance.
The BOQF10 manual lock features a secure spring loaded over the centre attachment lock. The
BOQF10HYD in cab controllable hydraulic cylinder ensures a dependable solid lock.
Your kit components may not be the same as the ones illustrated in this manual. The proced-
ure outlined here applies to installation of all adapter variations and is to be used as a general
guide only.
Serial Number
The serial number for your BOQF10 series is located on the back side of the adapter assembly.
Please record your serial number here as a handy reference. In case of warranty issues, your dealer
will ask for the serial to verify your warranty.
_________________________________________________________
Serial Number
_________________________________________________________
Model Number
_______________________________________________________
Skid Steer Model
Parts List
The most current parts lists for this product can be found online. Visit
be directed to our online parts catalogue.
Rev 110319
PRINTED IN CANADA
HORST WELDING
8082 Rd 129
Listowel, ON N4W 3G8
519-291-4162, 1-866-567-4162
Fax 1-519-291-5388
sales@horstwelding.com
www.horstwelding.com
BOQF10 example
hlaattachments.com
HA00104 BOQF10 Series Quick Fit Owner Manual.070319
Canada
and click on the PARTS tab to
Advertisement
Table of Contents
Summary of Contents for HLA BOQF10 Series
- Page 1 Serial Number The serial number for your BOQF10 series is located on the back side of the adapter assembly. Please record your serial number here as a handy reference. In case of warranty issues, your dealer will ask for the serial to verify your warranty.
- Page 2 This Safety Alert symbol means ATTENTION! BE ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert symbol identifies important safety messages in this instruction, as well as on the machine and in the operators manual. When you see this symbol, be alert to the possibility of personal injury or death.
- Page 3 Pins • Remove the old attachment from the immediate work area. • Move the BOQF10 series adapter in its place, and roughly align the hitch plate bushings on the adapter with the loader lift arm and tilt cylinder bushings. Pins •...
- Page 4 Hydraulic Equipped BOQF10HYD 7/16-20 or SAE#4” ORB Hoses and fittings are not included with BOQF- 10HYD. Attach hydraulic hoses to the cylinder, connect to the auxiliary ports on your loader to operate the attachment lock Hydraulic hose and fitting requirements: •...
