Geostar GeoS-5 RTK UHF EVK Quick Start

Quick start for GeoS-5 RTK UHF EVK

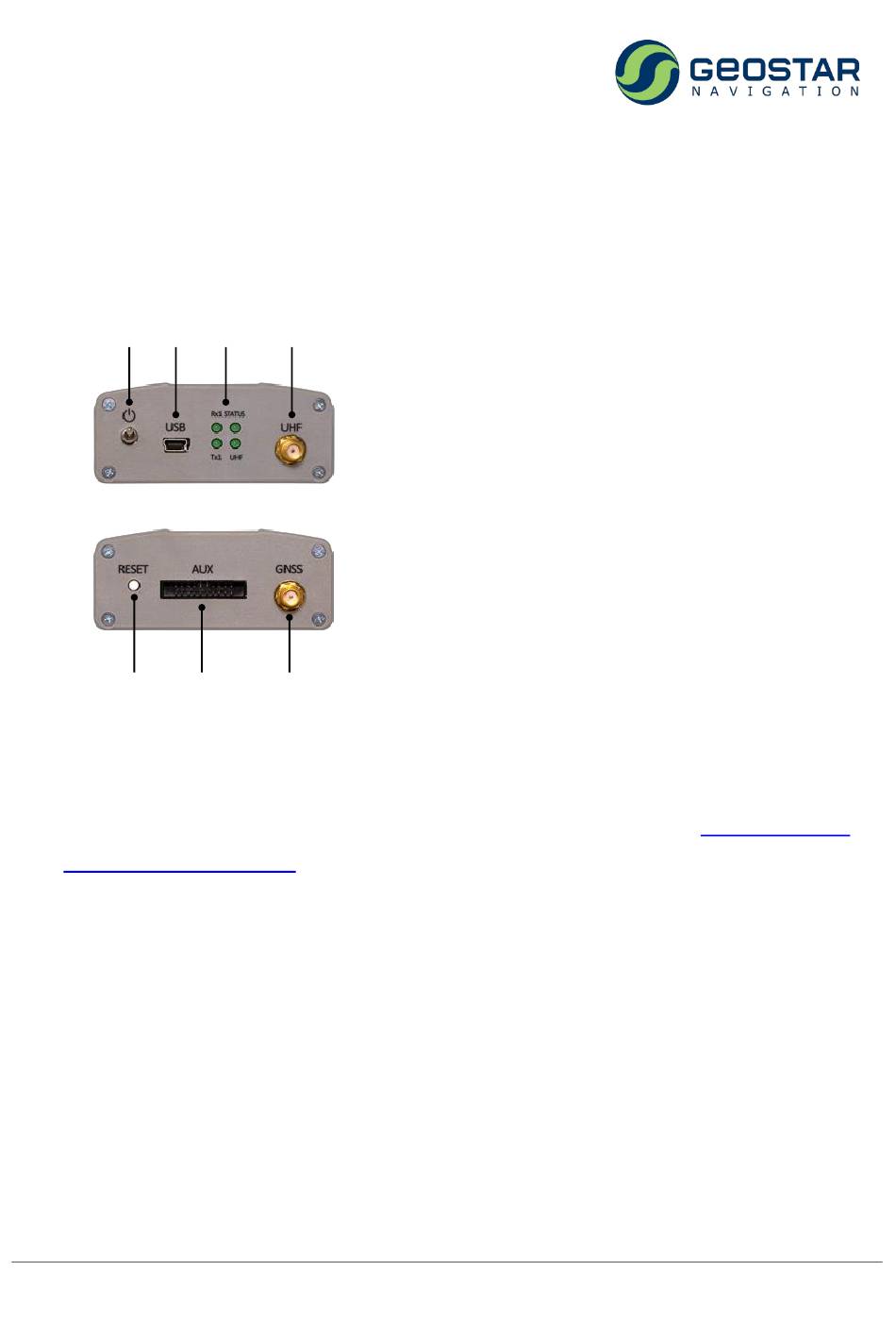

Overview

A B C
E F

Setup

1. Download and install GeoSDemo5
navi.com/en/software/
2. Connect UHF antenna to EVK unit (D).
3. Connect GNSS antenna to EVK unit (G) and place the antenna under clear sky view.
Please find below the recommendations for GNSS antenna placement.
4. Connect EVK's USB port (B) to a PC (the USB driver will be installed automatically
with GeoSDemo5® software).
5. Switch the EVK unit on (A).
6. Run GeoSDemo5® on PC, select COM ports manually or using autodetect function.
7. LEDs (C) will indicate GNSS operation and UHF communication status.
8. Setup GNSS module for Base or Rover configuration according to marking on EVK
unit.
Quick Start GeoS-5 RTK UHF EVK
D
G
®
(and documentation) from
A. Power On/Off switch
B. USB port
C. LED Indicators
D. UHF antenna connector
E. Reset button
F. Test & Production interfaice
G. GNSS antenna connector
www.geostar-navi.com
http://geostar-
