Efka Outdoor 40 Installation Manual

Installation manual Outdoor 40
Determine the right location for the frame, and take into account the type of surface and joints. Before
mounting, check whether the fabric falls within the specified tolerance; see page two. The frame is
supplied with four corner connectors, leaf springs, Allen screws and an Allen key.
200
400 400 400 400 400
200
500 500 500 500
200
600 600 600
4
2
1

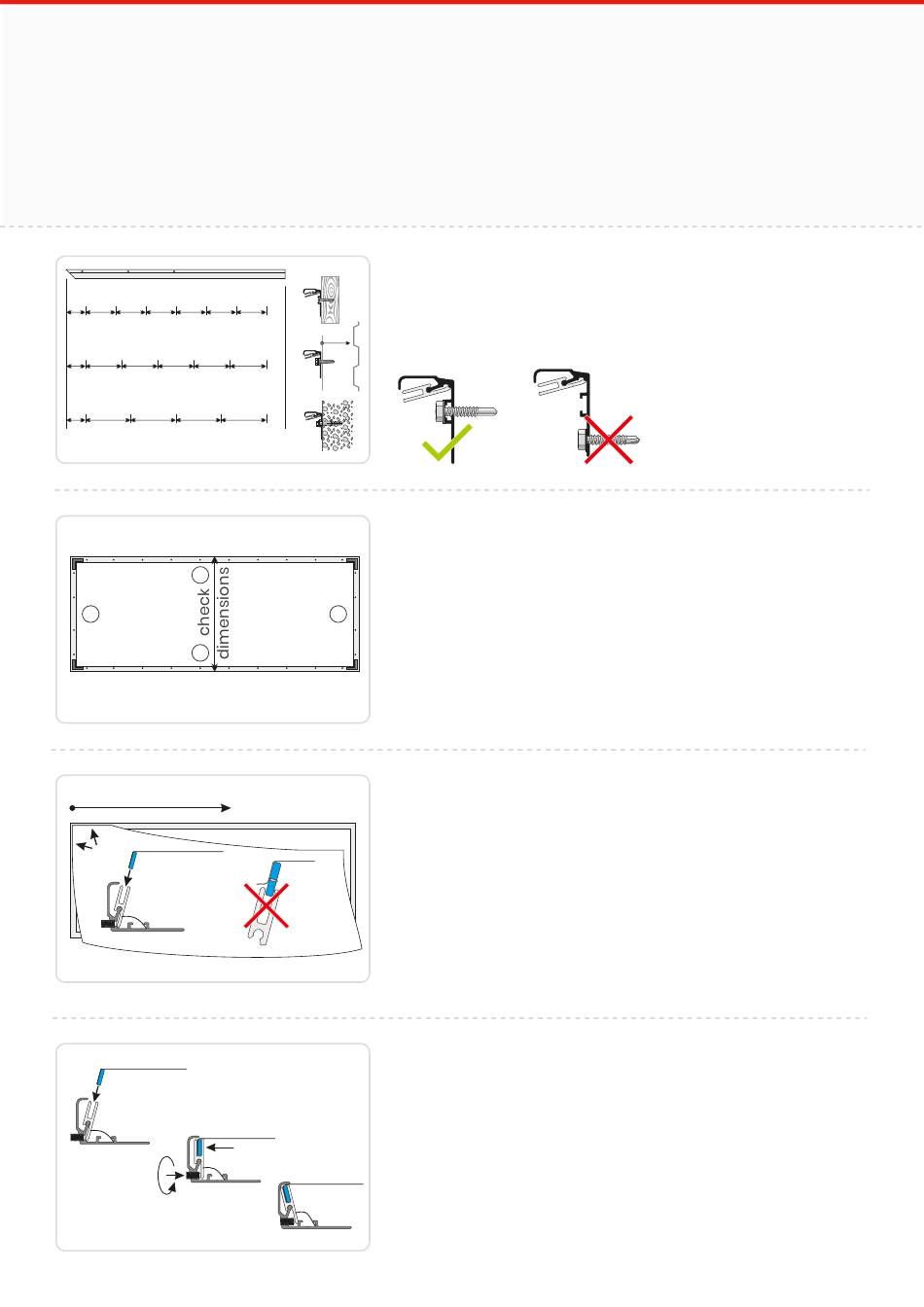

1. Drilling holes in the profile

The Outdoor 40 profile is delivered without pre-drilled holes. Depen-
400
ding on the hardness of the surface, a sufficient number of holes
should be drilled in the profile. Drill the holes in the right place:
500
600

2. Mounting the profile on the wall

Mount the bottom profile level onto the facade. Then mount the left
and right sides at right angles to the bottom profile and lastly the
upper profile. Check that the profiles are mounted straight.
3
The corners are connected with metal corner connectors using the
Allen key provided.

3. Attaching the PVC fabric

Slide the silicone strip into the profile, starting at the top left-hand corner.
Then slide the silicone strip into the entire upper profile, after which you
half-tighten the Allen screws of the upper profile. The silicone strip can
then be slide into the left and right sides of the frame and, lastly, into the
bottom.
Please note: the silicone strip should be as close to the edge of the fabric
as possible.

4. Tensioning the PVC fabric

Fully tighten the bottom Allen screws, then the sides and lastly the
upper side.
Please note: it is not advisable to attach the fabric into the frame
when there is too much wind.
Outdoor 40
Single-sided outdoor frame
