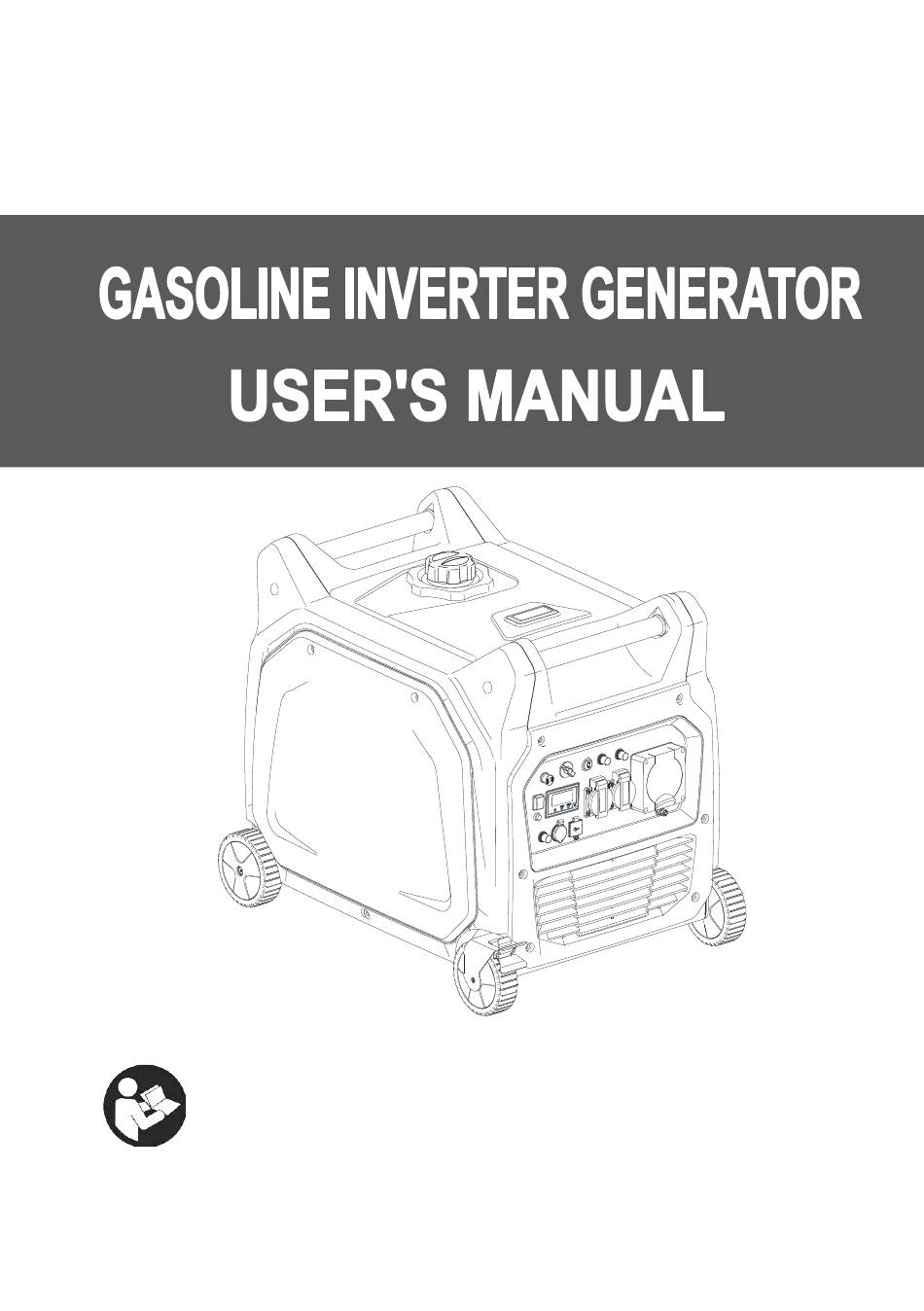

- Page 1 IMPORTANT ─ Please make certain that persons who are to use this equipment thoroughly read and understand this user’s manual prior to operation 2021-8-27 (REV:01)
-
Page 2: Table Of Contents
INTRODUCTION Thank you for purchasing this Inverter Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. C O N T E N T S SAFETY INFORMATION ......................... -
Page 3: Safety Information
! WARNING PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THE MATCHINE. SAFETY INFORMATION EXHAUST FUMES ARE POISONOUS Never operate the engine in a closed area or it may cause unconsciousness and death within a short time. Operate ⚫ the engine in a well ventilated area. -
Page 4: Control Function
CONNECTION NOTES Avoid connecting the generator to commercial power outlet. ⚫ Avoid connecting the generator in parallel with any other generator. ⚫ CONTROL FUNCTION (1) Spark plug (2) Fuel tank (3) Fuel tank cap (4) Fuel filter (5) Carrying handle (6) Fuel level gauge (7) Muffler (8) Battery... - Page 5 OIL WARNING SYSTEM When the oil level falls below the lower level, the engine stops automatically. Unless you refill with oil, the engine will not start again. ENGINE SWITCH The engine switch controls the ignition system. ① Ignition circuit is switched on. The engine can be started. STOP ②...
- Page 6 REMOTE CONTROL SWITCH The remote control switch controls the ignition system ① The starter motor starts. ② The engine will not run. BRAKE LEVER The function of brake lever is preventing generator moving. ① Brake lever is not working, generator can move. ②...
-
Page 7: Pre-Operation Check
PRE-OPERATION CHECK NOTE: Pre-operation checks should be made each time the generator is ⚫ used. CHECK ENGINE FUEL ⚫ Make sure there is sufficient fuel in the tank. ⚫ If fuel is low, refill with unleaded automotive gasoline. ⚫ Be sure to use the fuel filter screen on the fuel filter neck. ⚫... -
Page 8: Operation
GROUND (Earth) Make sure to ground (earth) the generator. CONNET BATTERY Loosen the screw and remove the battery cover. ⚫ Clamp the red wire to the positive (+) terminal and the black wire ⚫ to the negative (-) terminal of the battery. Do not reverse these positions. - Page 9 4. Turn the engine switch to the RUN position. ENGINE SWITCH Push choke rod to the RUN position. 6. Warm up the engine without a load for a few minutes. B Remote start CHOKE ROD 1. Please make sure the fuel shutoff valve to the ON position, the choke rod to the RUN position, the engine switch to the RUN position.
- Page 10 2．OVERLOAD INDICATOR LIGHT The overload indicator light flickers when an overload of a connected electrical device is detected. This situation shall not be kept for a long time and it just needs to decrease the loads to its normal range and the overload indicator light will go off.
- Page 11 (b) Connect between the DC output socket and the battery terminals using the charging leads. The leads shall be connected making sure of the (+) and (-) polarity. (c) The DC circuit protector is to be set to ON after confirming the connection, if the protector is in OFF position.
-
Page 12: Periodic Maintenance
PERIODIC MAINTENANCE MAINTENANCE CHART Pre-operation Initial Every Every Every check 1 months 3 months 6 months 12 months Item Remarks (daily) or 20 Hr or 50Hr or 100Hr or 300Hr Spark Check condition adjust gap and ⚫ Plug clean. Replace if necessary. Engine Check oil level ⚫... - Page 13 ENGINE OIL REPLACEMENT Place the machine on a level surface and warm up the engine for several minutes. Then stop the engine and turn the fuel cock knob to OFF. Turn the fuel tank cap air vent knob clockwise. Loosen the screw and remove the cover. Remove the oil filler cap Place an oil pan under the engine.
- Page 14 CAUTION: The engine should never run without the element; excessive piston and/or cylinder wear may result. CLEANING AND ADJUSTING SPARK PLUG 1. Remove the cover. 2. Check for discoloration and remove the carbon. 3. Check the spark plug type and gap. 4.
-
Page 15: Trouble Shooting
Use the flathead screw driver to pry the spark arrester out from the muffler Remove the carbon deposits on the muffler screen and spark arrester using a wire brush. Install the muffler screen. Install the cover TROUBLE SHOOTING Engine won’t start 1. -
Page 16: Storage
STORAGE Long term storage of your machine will require some preventive procedures to guard against deterioration. DRAIN THE FUEL Remove the fuel tank cap, drain the fuel from the fuel tank Remove the cover, drain fuel from the carburetor by loosening the drain screw. ENGINE Remove the spark plug, pour in about one tablespoon of SAE 10W30 or 20W40 motor oil into the spark plug hole and reinstall the spark plug. -
Page 17: Specification
SPECIFICATION MODEL XYG6500iE Type Inverter Generator 240V AC Voltage 50Hz Max. Output 6.6 kW Rated Output 6.0 kW Power Factor DC Output 12V / 5.0A 5V/3.1A Model XY188F-1 Type Air-cooled, 4 cycle, OHV, Gasoline Engine Bore×Stroke mm×mm 88×64 Displacement 389cc Max. -
Page 18: Wiring Diagram
WIRING DIAGRAM 240V CONTROL PANEL BLOCK GENERATOR BLOCK FUSE 15A DC 12V OUTPUT DC PROTECTOR 6A WINDING RECTIFIER WINDING DC5V OUTPUT GROUND TERMINAL MAIN WINDING INVERTER PROTECTOR PROTECTOR UNIT AC OUTPUT WINDING U-I-P-Hz-T OUTPUT RESET ECON. SWITCH IGNITION IGNITION CONTROLLER WINDING ELECTRIC LOCK STEPPER MOTOR ASSY.
