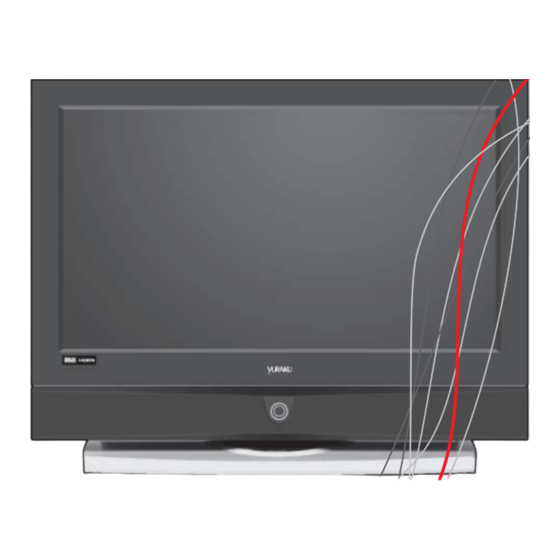

Colour Television
Colour Television
Owner's Manual
LC-40IEB3, LC-46IEB3
Please read this manual carefully before operating your set.
Retain it for future reference.
See the label attached on the back cover and quote this information to your
dealer when you require service.
create >> excite >> inspire
www.yuraku.com.sg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-40IEB3 and is the answer not in the manual?

Questions and answers

Related Manuals for YURAKU LC-40IEB3

Summary of Contents for YURAKU LC-40IEB3

  • Page 1 Colour Television Colour Television Owner’s Manual LC-40IEB3, LC-46IEB3 Please read this manual carefully before operating your set. Retain it for future reference. See the label attached on the back cover and quote this information to your dealer when you require service.

  • Page 2: Table Of Contents

    Installation AVL (Auto Volume Leveler) Remote control handset TV Speaker Controls Stereo/Dual/NICAM reception Battery installation Time Menu 27-29 Controls of Clock Front panel On/Off Time Auto sleep / Sleep timer Connections of Setup Menu Back panel Front Light Connection to Child Lock External equipment 8-12...

  • Page 3: Installation

    Power Location This set operates on an AC mains supply, the voltage is as Position your set so that no bright light or sunlight falls indicated on the label on the back cover. Never apply DC directly onto the screen. Care should be taken not to power to the set.

  • Page 4: Controls

    - All the functions can be controlled with the remote control handset. - Some functions can also be adjusted with the buttons on the front panel of the set. POWER MUTE switches the set On from standby or Off to switches the sound On or Off.

  • Page 5: Battery Installation

    - Your remote control handset is powered by two AAA type batteries. To insert batteries, turn the remote Put the two batteries into the compart- Replace the cover. control handset over and remove the ment observing battery polarity. battery cover. To avoid damage from possible bat- tery leakage, remove the batteries if you do not plan to use the remote con-...
  • Page 6 - Shown is a simplified representation of the set. - Here shown may be somewhat different from your set. On/Off 1. MAIN POWER 5. INPUT switches the set On or Off. selects S-VIDEO, COMPO- NENT1 COMPONENT2 PC-RGB HDMI1 HDMI2 (Programme Up/Down) mode.
  • Page 7 (R)AUDIO(L) ANT. IN DIGITAL AUDIO HDMI1 IN HDMI2 IN AUDIO IN RGB IN RS-232C IN AC IN COMPONENT1 IN (OPTICAL) OUT (DVI) (DVI) (RGB/DVI) (PC/DTV) (CONTROL) 1. HDMI1 IN / HDMI2 IN / AUDIO IN / RGB IN SOCKETS Note : In standby mode, these ports will not work. Connect the set output socket of the PERSONAL COMPUTER to this socket.
  • Page 8 - You can connect additional equipment, such as VCRs, camcorders etc. to your set. However please check with your manufacturers instruction books for specific information. Make sure all connections are made with both your set and additional appliance unplugged from the mains to avoid damaging your equipment. Here shown may be somewhat dif- ferent from your set.
  • Page 9 Watching Cable TV Watching external AV source < Back panel of the set > DIGITAL AUDIO < Back panel of the set > AC IN (OPTICAL) OUT Camcorder For cable TV AUDIO VIDEO Video game set (R) AUDIO (L) VIDEO (R) AUDIO (L) VIDEO <...
  • Page 10 Watching DVD < Side panel of the set > (R)AUDIO(L) VIDEO ONENT2 IN AV4 IN S-VIDEO IN (R) AUDIO (L) (R) AUDIO (L) S-VIDEO < Back panel of a DVD player > How to connect Connect DVD video inputs to Y, P of COMPONENT (DVD INPUT) and audio inputs to Audio sockets of AUDIO INPUT.
  • Page 11 Connecting HDMI (DTV) < Back panel of the set > (R)AUDIO(L) HDMI2 IN RGB IN HDMI1 IN AUDIO IN RS-232C IN (DVI) (DVI) (RGB/DVI) (PC/DTV) (CONTROL) HDMI OUTPUT (R) AUDIO (L) Connect the signal cable from the monitor output socket of HDMI Interface with HDCP Copy Protection enables all- the PERSONAL COMPUTER to the HDMI IN socket of the digital rendering of video without the losses.
  • Page 12 Connecting Digital Audio Connecting PC (DTV) < Back panel of the set > < Back panel of the set > (R)AUDIO(L) AUDIO IN RGB IN RS-232C IN COMPONENT1 IN (RGB/DVI) (PC/DTV) (CONTROL) DIGITAL AUDIO AC IN (OPTICAL) OUT RGB OUTPUT RGB OUTPUT (R) AUDIO (L) AUDIO (L)

  • Page 13: Remote Control Handset

    On and Off Programme selection On screen language selec- tion Press the main power button to You can select a programme number Press the MENU button and then use switch the set on. button to select the SETUP with the or NUMBER buttons.
  • Page 14 - The dialogue between you and your set takes place on screen with an operator menu. The buttons required for the operating steps are also displayed. Press the MENU button and Change the setting of an item in the sub Press the button and then use then use...

  • Page 15: Setting Up Tv Stations

    - Up to 100 TV stations can be stored by programme numbers (0 to 99). Once you have preset the stations, you will be able to use the or NUMBER buttons to scan the stations you programmed. Stations can be tuned using automatic or manual modes. - All stations that can be received are stored by this method.

  • Page 16: Manual Programme Tuning

    - Manual programme lets you manually tune and arrange the stations in whatever order you desire. Also you can assign a station name with five characters to each programme number. Press the MENU Press the button and then use Press the button to select System button and then use...
  • Page 17 Normally fine tuning is only necessary if Press the button to select Name reception is poor. Press the button on the Name pull-down menu. Press the button to select Fine Press the button. You can use a blank, , the numeric and the alphabet Press the...
  • Page 18 - This function enables you to delete or skip the stored programmes. Also you can move some stations to other pro- gramme numbers or insert a blank station data into the selected programme number. Press the MENU button Deleting a programme Moving a programme and then use but-...

  • Page 19: Calling The Programme Table

    - You can check the programmes stored in the memory by displaying the programme table. Skipping a programme number Displaying programme table Select a programme number to be Press the LIST button to display the menu. Programme table skipped with the button.

  • Page 20: Picture Adjustment

    CSM (Colour Status Memory) To initialize values (reset to default settings), select the You can adjust red, green, or blue to any colour tempera- ture you prefer. Normal option. Press the MENU button and then use button to Press the MENU button and then button to select the PICTURE menu.

  • Page 21: Psm (Picture Status Memory)

    PSM (Picture Status Memory) Manual Picture Control Press the MENU button and then use button to Press the MENU button and then use button to select the PICTURE menu. select the PICTURE menu. Press the button and then use button to select Press the button and then use button to select the...

  • Page 22: Picture Format

    Picture format You can watch TV in various picture formats; 16:9, 14:9, 4:3, ZOOM1, ZOOM2, SPECTACLE, AUTO. Repeatedly press the ARC button to select your desired picture format. 1. Press the ARC button to select a desired picture format. • Each press of ARC button changes the screen display as shown below. •...

  • Page 23: Sound Adjustment

    SSM (Sound Status Memory) Press the MENU button and then Sound Frequency Adjustment You can also recall a desired sound Flat Music Movie Speech button to select the a. Press the button in User User ) with SSM button on the remote SOUND menu.

  • Page 24: Balance

    Balance AVL (Auto Volume Leveler) Press the MENU button and then use button to Press the MENU button and then use button to select the SOUND menu. select the SOUND menu. Press the button and then use button to select Press the button and then use button to select...

  • Page 25: Srs

    TV Speaker is a trademark of SRS Labs, Inc. - Turn TV speakers off if using external audio TruSurround XT ruSurround XT equipment. - TruSurround XT technology is incorporated under license form SRS Labs, Inc. Press the MENU button and then use - Manufactured under license form Dolby Laboratories.

  • Page 26: Stereo/Dual/Nicam Reception

    Stereo/Dual/NICAM reception Language selection for dual language broadcast If a programme received in two languages (dual language), you can switch In AV mode, you can select output sound DUAL I DUAL II DUAL I+II by pressing the I/II button repeatedly. for the left and right loudspeakers.

  • Page 27: Time Menu

    Clock You must set the time correctly before using on/off time Press the button and then D / E button to select Clock function. Press the button and then D / E button to adjust the D / E Press the MENU button and then button to select hour / minute.

  • Page 28: On/Off Time

    On/Off Time The off timer automatically switches the set to standby at Only On time function; Press the button and then D / E the preset time. button to adjust volume level and programe number. D / E Press the MENU button and then button to select Repeatedly press the MENU button to return to normal TV the TIME menu.

  • Page 29: Auto Sleep / Sleep Timer

    Auto sleep Sleep timer You don’t have to remember to switch the set off before If you select on the Auto Sleep menu, the set will auto- you go to sleep. The sleep timer automatically switch- matically switch itself to standby mode approximately ten es the set to standby after the preset time has elapsed.

  • Page 30: Setup Menu

    Front Light Child Lock You can switch Front Light LED on or off. The TV can be set so that the remote control handset is needed to control it. This feature can be used to prevent Press the MENU button and then D / E button to select unauthorized viewing.

  • Page 31: Pc Setup

    PC Setup You can adjust horizontal/vertical position, clock, phase, This function allows you to remove any horizontal noise and auto-configure, reset as you prefer. and clear or sharpen the image of characters. Press the MENU button and then button to select Auto-configure the SETUP menu.

  • Page 32: Pip (Picture-In-Picture) Feature

    - PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the other source will show a smaller inset image. Watching PIP PIP Audio Output Press the PIP button to show the sub picture. PIP mode - main and sub picture audio select.

  • Page 33: Moving The Pip

    Moving the PIP Swapping the PIP Press the PIP POSITION button. Press the SWAP button to exchange the main and sub pictures. Press the PIP POSITION button repeatedly until desired position is achieved. The sub pictures move clockwise. Main Picture Sub Picture MAIN S-VIDEO COMP.1 COMP.2 PC-RGB...

  • Page 34: Selecting A Input Signal Source For The Pip

    Programme scan Selecting a Input Signal Source for the PIP Use the PIP INPUT button to select the input source for the This function enables you to search all the stored stations sub picture. on 4 or 16 sub pictures and see your favourite station by exchanging the main and sub pictures.

  • Page 35: Teletext (Option)

    Teletext (or TOP text) is an optional function, therefore only Four teletext page numbers of your choice can be colour a set with the teletext system can receive the teletext coded and easily selected by pressing the corresponding broadcast. coloured button on the remote control handset. 1.
  • Page 36 FASTEXT ber. Press this button to view the updated teletext page. The teletext pages are colour coded along the bottom of HOLD the screen and are selected by pressing the correspond- Stops the automatic page change which will occur if a tele- ing coloured button.

  • Page 37: External Control Device Setup

    - Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and con- trol the set’s functions externally. How to connect external control equipment Type of connector; D-Sub 9-pin male Pin name No connection <...
  • Page 38 Set ID Command Reference List COMMAND DATA (Hexadecimal) Press the MENU button and then D / E but- 01. Power 0x01 ton to select the SETUP menu. 02. Volume Mute 0x02 03. Screen Mute 0x03 04. Contrast 0x04 0~64 Press the button and then D / E button to...
  • Page 39 01. Power Transmission / Receiving Protocol G To control Power On/Off of the set Transmission Transmission [F6][Command][SetID][Data][CS][6F] [F6][01][SetID][Data][CS][6F] * [F6] : Start of Communication Data 0 : Power Off 1 : Power On * [Command] : Command set OK Acknowledgement * [Set ID] : You can adjust the set ID to choose desired monitor ID number in SETUP...
  • Page 40 03. Screen Mute 06. Colour G To select screen mute On/Off G To adjust screen colour. You can also adjust colour in the PICTURE menu. Transmission Transmission [F6][03][SetID][Data][CS][6F] [F6][06][SetID][Data][CS][6F] Data 0 : Screen Mute Off (Picture On) 1 : Screen Mute On (Picture Off) Data Min : 0 ~ Max : 64 OK Acknowledgement * Refer to 'Real data mapping1'.
  • Page 41 09. PSM 12. Balance G To select picture mode. G To adjust sound balance. You can also adjust PSM. In the PICTURE menu. You can also adjust Balance. In the SOUND menu. Transmission Transmission [F6][09][SetID][Data][CS][6F] [F6][0C][SetID][Data][CS][6F] Data 0 : Dynamic 1 : Standard Data Min : 0 ~ Max : 64 2 : Mild...
  • Page 42 15. TV Speaker 18. PIP Size G To control TV Speaker On/Off of the set. G To select PIP Size. You can also adjust TV Speaker. In the SOUND menu. You can also adjust PIP Size. In the PIP menu. Transmission Transmission [F6][0F][SetID][Data][CS][6F]...
  • Page 43 21. Clock 24. Vertical G To adjust clock. G To adjust vertical. You can also adjust Clock. In the PC Control of SETUP menu. You can also adjust V-Pos. In the PC Control of SETUP menu. Transmission Transmission [F6][2A][SetID][Data][CS][6F] [F6][2D][SetID][Data][CS][6F] Data Min : 0 ~ Max : 64 Data Min : 0 ~ Max : 64 * Refer to 'Real data mapping1'.
  • Page 44 27. Main Input 30. Child Lock G To select Input. G To control child lock mode. You can also select Input. In the PIP menu. You can also control Child Lock. In the SETUP menu. Transmission Transmission [F6][30][SetID][Data][CS][6F] [F6][34][SetID][Data][CS][6F] Data 0 : Off 1 : On Data 0 : TV 1 : AV1...
  • Page 45 33. Programme Selection G To select a programme for the main picture. * Real data mapping 1 * Real data mapping 2 Transmission step 0 0 : -50, Left [F6][37][SetID][Data][CS][6F] Data 0 : Pr Up 1 : Pr Down step 10 31: -1, Left OK Acknowledgement...

  • Page 46: Displayable Monitor Specification

    RGB Mode / HDMI Mode Horizontal Vertical MODE Resolution Frequency (Hz) Frequency (KHz) 31.5 640X350 70.0 31.5 70.0 720X400 37.9 85.0 31.5 60.0 37.8 72.0 640X480 Note: 37.5 75.0 a. If the set is cold, there may be a small “flicker” when the 43.2 85.0 set is switched on.
  • Page 47 Symptoms No picture, no sound Sound OK, poor picture Picture OK, poor sound Picture blurred Lines or streaks in picture Poor reception on some channels No colour Poor colour Remote control does not work Incorrect position Vertical bars or stripes on background Horizontal noise Signal Cable message appears Check these items and try to adjust these...
