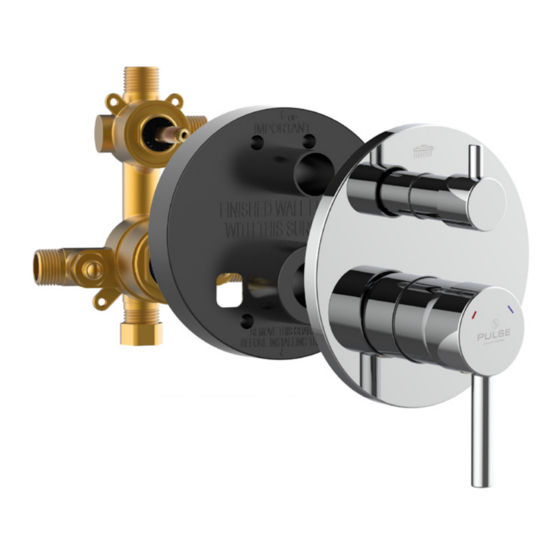

Tru-Temp Two Way Diverter Valve
Model #3005-RIVD-BN, 3005-RIVD-CH, 3005-RIVD-MB, 3005-RIVD-ORB
PW-93005-64TRBRN, PW-93005-64TRCP, PW-93005-64TRBM, PW-93005-64TRBRZ
Tru-Temp Two Way Diverter Valve with Square Trim
Model #3007-RIVD-BN, 3007-RIVD-CH, 3007-RIVD-MB, 3007-RIVD-ORB
PW-93007-65TRBRN, PW-93007-65TRCP, PW-93007-65TRBM, PW-93007-65TRBRZ
Advertisement
Table of Contents
Related Manuals for Pulse Shower Spas 3007-RIVD-BN
Summary of Contents for Pulse Shower Spas 3007-RIVD-BN
- Page 1 Tru-Temp Two Way Diverter Valve Model #3005-RIVD-BN, 3005-RIVD-CH, 3005-RIVD-MB, 3005-RIVD-ORB PW-93005-64TRBRN, PW-93005-64TRCP, PW-93005-64TRBM, PW-93005-64TRBRZ Tru-Temp Two Way Diverter Valve with Square Trim Model #3007-RIVD-BN, 3007-RIVD-CH, 3007-RIVD-MB, 3007-RIVD-ORB PW-93007-65TRBRN, PW-93007-65TRCP, PW-93007-65TRBM, PW-93007-65TRBRZ...
- Page 2 Tru-Temp Two Way Diverter Valve Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Valve Handle 8. O-ring.......(2) 15. Diverter Cap 2. Set Screw 9. Plaster Guard 16. Valve Trim Sleeve 3. Cover 10. Screw......(4) 17. Diverter Cartridge 4. Diverter Body 11. Trim Nut 18. Pressure Balance Valve Cartridge 5. Diverter Threaded Pin 12.
- Page 4 Dimensions 2 in. - 0.4 in. - 49 mm 10 mm 3005 0.7 in. - 16.8 mm 0.9 in. - 23.5 mm 0.8 in. - 21.5 mm 2.75 in. - 70 mm 6.7 in. - 170 mm 2 in. - 49 mm 3007 0.7 in.
-
Page 5: Before You Begin
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your valve will fit properly. Confirm the installation position and remove the If no tub, keep the tub spout cap (20). Apply plumbers plaster guard (9). tape on all joint threads needed. If welding, plumbers tape is not necessary. - Page 6 without tub installation Installation Instructions finished wall wall trim plate without tub installation with tub installation stud Connect the water and confirm there is no Install trim plate (7). water leakage. finished wall finished wall Step 2 finished wall Step 1 with tub installation wall trim plate...
-
Page 7: Operation
Installation Instructions OPERATION: VALVE FUNCTIONS: DIVERTER FUNCTIONS: Showerhead Showerhead Showerhead Showerhead water ON water ON Turning valve ON, lift valve handle up. Diverter handle facing up for showerhead. water ON water ON Hand Shower Hand Shower Hand Shower Hand Shower Cold Cold Cold... -
Page 8: Care And Maintenance
Ch e m i c a l s O r A b r a s i ve s ! MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in...
