MOD-6207

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 20 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

Customer Service 609- 256- 9000 w w w .modw ay.com

Component

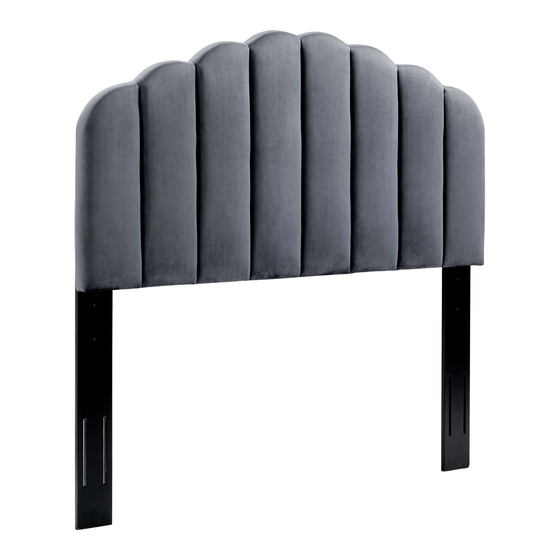

HEADBOARD

SUPPORT WOOD

BED FRAME

(DOES NOT INCLUDE

WITH THE PURCHASE)

1 PC

2 PCS

01 of 03

Need help?

Do you have a question about the MOD-6207 and is the answer not in the manual?

Page 1 MOD-6207 Thank you for purchasing the MODWAY BED! Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions. 2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
Page 2 MOD-6207 HARDWARE HEADBOARD HARDWARE BED FRAME JCBB BOLT M6 x 60mm JCBB BOLT M8 x 60mm 4 PCS 4 PCS M8 FLAT WASHER JCBB BOLT M6 x 35mm 4 PCS 4 PCS M6 FLAT WASHER M5 ALLEN KEY 1 PC...
Page 3 MOD-6207 STEP 2 2.1 Line up the bed frame board's pre-drilled holes to match those of the headboard. 2.2 Secure the headboard to the bed frame by using 2x bolt (4) for the thicker bed frame, and 2x bolt (5) for the thinner bed frame. Before...
