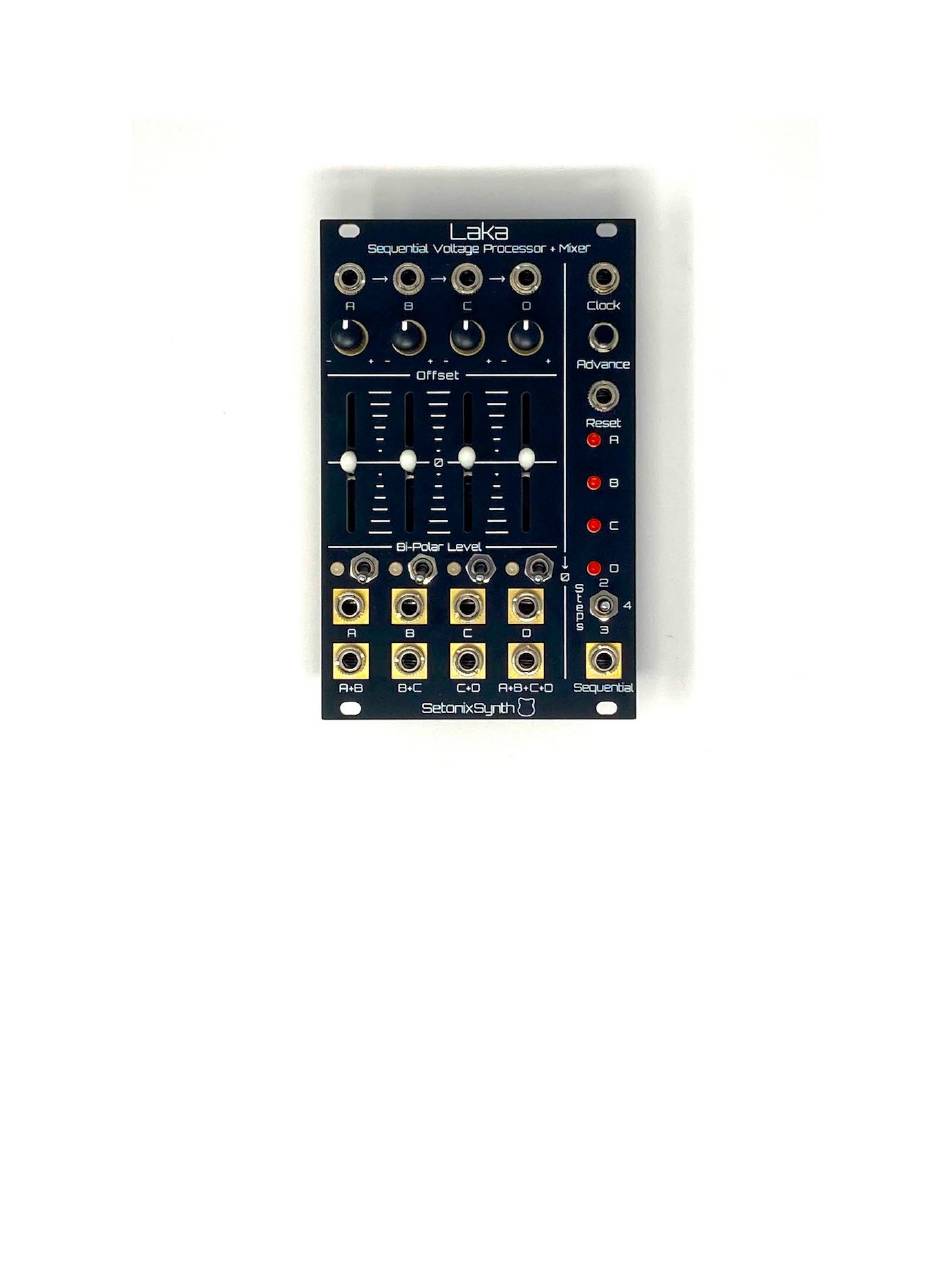

- Page 1 Laka Sequential Voltage Processor + Mixer Build Manual - Eurorack Copyright 2022 SetonixSynth. All rights reserved.
- Page 2 Hello and thank you for building the Laka Sequential Voltage Processor + Mixer. We hope you will find its processing power most pleasing! Assembly Instructions: 1. Install surface mount components on the rear of the PCB. We recommend using No-Clean liquid flux on the board before applying quality solder paste such as Chip-Quik SMD291SNL, tweezing components onto the board, and reflowing with a hot air station or oven.
- Page 3 3. Once all rear through-hole parts have been soldered, place one of the B100k faders in a footprint on the Panel side of the board and use a couple fingers to hold it snug against the PCB so that all pins sit as evenly as possible in their respective through-holes.
- Page 4 10. Laka is a dense PCB with lots of hardware, and it’s very easy to miss a solder joint in the excitement to finish the module. Do yourself a favor and double- or even triple-check to make sure every single piece of hardware and all LEDs are soldered to each pad provided with an ample amount of solder, including the mechanical pads.
- Page 5 (You will need a multimeter and 1V/Oct voltage source) 1. Power on Laka and allow it to warm up for a few minutes. 2. Use a multimeter on the DC Voltage setting to adjust +VREF and -VREF. Connect the black probe to one of the terminals marked “-Gnd-”...
