Summary of Contents for American Home AWF-M7020D

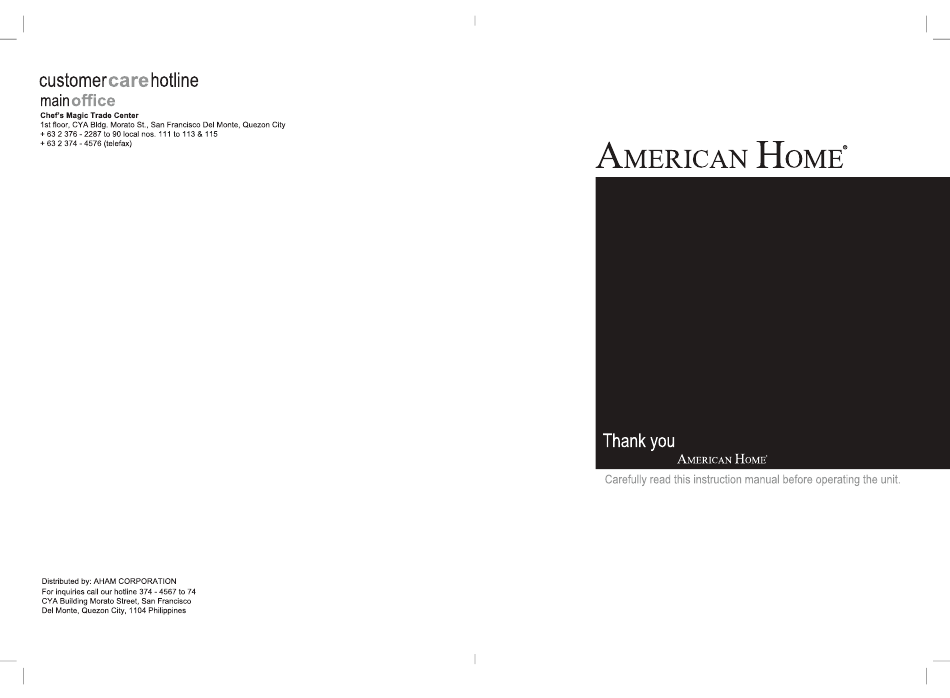

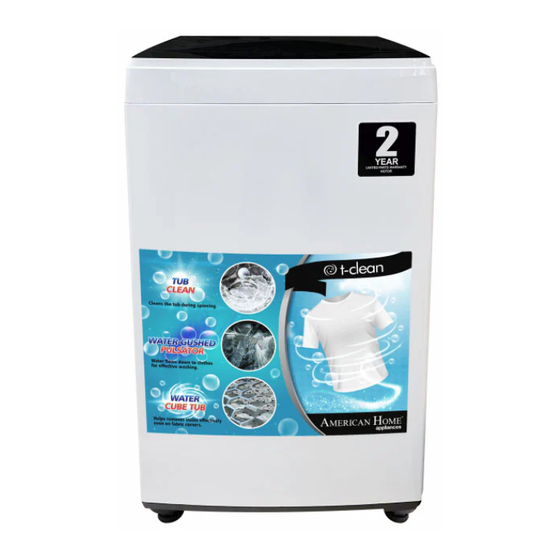

- Page 1 owner’s manual for purchasing washing machine top.load.washing.machine AWF- M7020D 7kg capacity...
-
Page 2: Table Of Contents
Contents Safety Precautions Safety precautions......................1 WARNING Part’s name........................3 Accessories........................4 • This appliance is not intended for use by persons (including children) with Specifications.......................4 reduced physical, sensory or mental capabilities or lack of experience and Installation........................5 knowledge unless they have been given supervision or instruction concerning Operation........................9 use of the appliance by a person responsible for their safety. -
Page 3: Part's Name
Adjustable Drain hose foot knob Specification Model AWF-M7020D The picture above is for illustration only. There might be a slight difference with the actual Rated Capacity unit purchased. Power Supply 230V~ 60Hz... -
Page 4: Installation
Installation Installation INSTALLATION OF DRAIN HOSE UNPACKING THE WASHING MACHINE • Packaging material (e.g. films, styrofoam) can be Drain hose inserted into the drain Clamping spring dangerous for children. • There is a risk of suffocation. Keep all packaging away from children. •... - Page 5 Installation Installation CONNECTION OF INLET HOSE, FAUCET AND WASHING MACHINE LEVELLING THE WASHING MACHINE • The lock nuts on all four feet must be screwed tightly against the housing. 1. Connection between ordinary faucet and inlet hose. 1.Check if the legs are closely attached to the cabinet. If not, please turn them to their wall original positions and tighten the nuts.
-
Page 6: Operation
Operations Operations PREPARATIONS BEFORE WASHING • The working condition of the washer should be (0-40)°C. • Please check the labels and the explanation on detergent use before washing. Non- foaming or less-foaming detergent is suitable for use in this machine. CAUTION •... -
Page 7: Control Panel
Control Panel Control Panel WATER LEVEL Select water level according to clothing categories, degree of soiling and washing habits of customers. t-clean WASH / RINSE / SPIN Washing time, rinsing times, spinning time and other settings can be selectable. DELAY 1. -
Page 8: Washing Program
Washing Program Washing Program Customers can select washing program according to actual demand, and set washing Program are available according to the laundry type. time, rinsing times, spinning time, water volume and appointment time. Jeans Suitable to wash heavy stained clothes. Program Water level Set soak/washing/spinning... -
Page 9: Maintenance
Maintenance Maintenance CLEANING AND CARE CLEANING DRAIN PUMP FILTER Before your maintenance starts, please unplug the machine and close the faucet. • Be careful of hot water. • Allow it to cool down. • Unplug the machine to avoid electrical shock before cleaning. •... -
Page 10: Troubleshooting
Troubleshooting Troubleshooting When the machine has not started or has stopped operating, try to find a solution first Error code Description Solution by referring to the items listed below: Check faucet if open or not. Alarm for abnormal water intake. Check the water level sensor and Alarm for water drain has not finished.
