1 Document
This document describes the specifications of thermal imaging camera, Thermal expert TE-SQ1
2 Summary
TE-SQ1 is a portable thermal imaging camera that combines a micro-bolometer IR sensor
(320x240, 12µm pixel pitch) and a visible sensor. TE-SQ1 applied with Android 8 version and 5
inch large display, can take both thermal images and visible images at the same time, and can
share images through Wi-Fi communication. Using Analysis tool in SQ1, users can generate and
submit reports immediately, and analysis software for Windows OS will be provided as well.

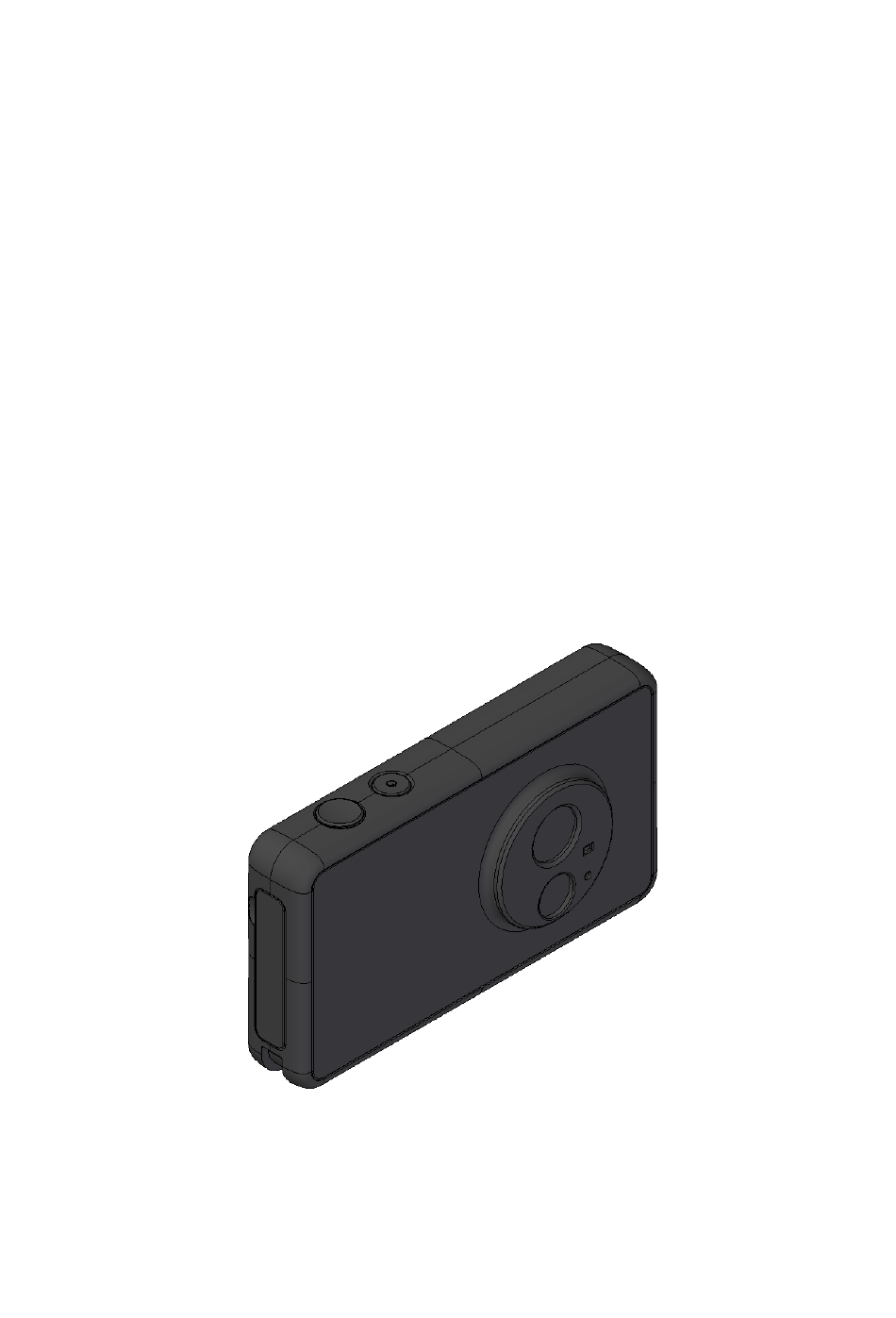

FIGURE 1 : Thermal Expert SQ1
© 2021. I3SYSTEM, Inc. All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the TE-SQ1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for i3system TE-SQ1

Summary of Contents for i3system TE-SQ1

  • Page 1 TE-SQ1 is a portable thermal imaging camera that combines a micro-bolometer IR sensor (320x240, 12µm pixel pitch) and a visible sensor. TE-SQ1 applied with Android 8 version and 5 inch large display, can take both thermal images and visible images at the same time, and can share images through Wi-Fi communication.

  • Page 2: Product Specification

    Size 34mm x 38mm x 24.5mm Specification Weigh 375g Battery Type Built in rechargeable Li-ion Battery, 4200mA Battery Life 3hours Power Charging Time 3hours Charging Device 5V DC Power charger, USB-C cable included © 2021. I3SYSTEM, Inc. All Rights Reserved...

  • Page 3: Product Image

    Storage Temperature -20 ~ 60℃ Operating Temperature -10 ~ 50℃ IP Code IP54 1) Temperature accuracy can be further calibrated through blackbody and software processing 3.2 Product image FIGURE 2 : Thermal Expert SQ1 © 2021. I3SYSTEM, Inc. All Rights Reserved...
  • Page 4 Item in the box 4.1 Item in the box TE-SQ1 DC Power Supply Charging cable Wrist strap TE-SQ1 Product User Guide Power Butten © 2021. I3SYSTEM, Inc. All Rights Reserved...
  • Page 5 2. As soon as the camera is turned on, device will show lock screen as it is above. 3. Unlock the device and open the TE-SA application on the app menu 3.1 As soon as app is opened, Image #2 will be on the display. © 2021. I3SYSTEM, Inc. All Rights Reserved...
  • Page 6 4. When the app runs, IR image is on the display. When you click the screen once, product menu appears on the left side of the screen Color map Setting Temperature Setting Image Setting Display Setting Additional Setting © 2021. I3SYSTEM, Inc. All Rights Reserved...

  • Page 7: Warranty

    This product does not support Bluetooth Communication. 6.2 Warranty TE-SQ1 is a thermal imaging camera designed for thermography, and when using it for other purposes, prior consultation with the manufacturer is required. The warranty period is 12 months and begins on the date of shipment. Product issues occurring within the warranty period will be repaired or replaced free of charge.
  • Page 8 This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. © 2021. I3SYSTEM, Inc. All Rights Reserved...
