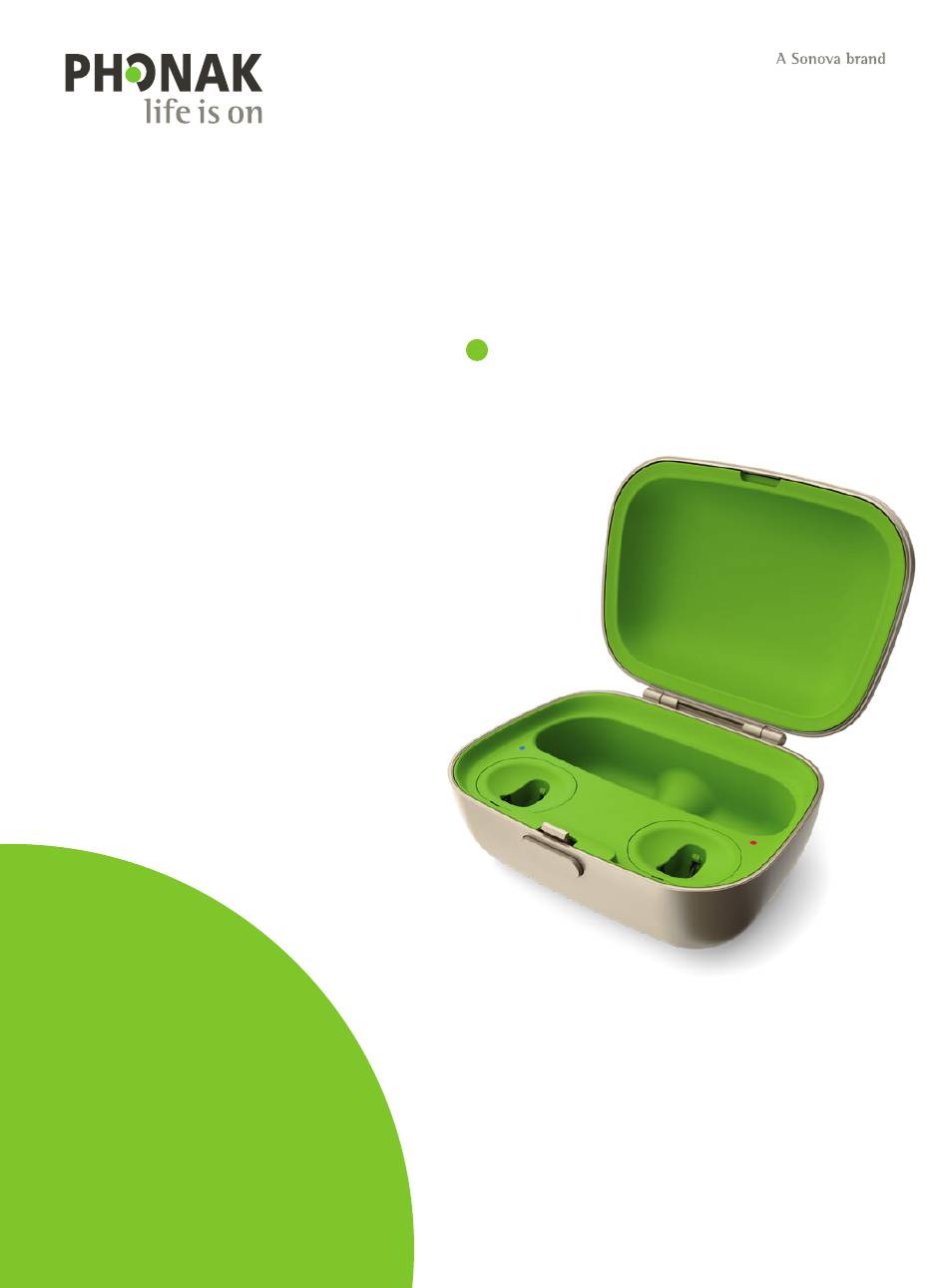

  • Page 1 Phonak Charger Combi BTE User Guide Phonak Charger Combi BTE...
  • Page 2 This user guide is valid for: Non wireless charging accessories Phonak Charger Combi BTE Optional Power Pack...
  • Page 3 Your charger details Please also read safety information regarding handling the charger (chapter 10). Device Phonak Charger Combi BTE incl. power supply and USB cable (< 1 m) Compatible hearing aid models Phonak Naída P-PR (P90/P70/P50/P30/Trial) Phonak Bolero M-PR (M90/M70/M50/M30/Trial)
  • Page 4 Your charger has been developed by Phonak – a world leader in hearing solutions based in Zurich, Switzerland. The Phonak Charger Combi BTE is a device intended to charge rechargeable hearing aids. Please read the user guide carefully to make sure that you understand and get the best out of your charger.

  • Page 5: Table Of Contents

    Contents Your charger 1. Parts of the charger Using the charger 2. Preparing the charger 3. Charging the hearing aids 4. Using the optional Power Pack Further information 5. Operation, transport and storage conditions 6. Care and maintenance 7. Service and warranty 8.

  • Page 6: Parts Of The Charger

    1. Parts of the charger Charger Charger Combi BTE Space for earpieces Hearing aid charging slots with left/right indicators Charger Combi BTE with optional Power Pack Indicator light for power micro-USB connection to external power supply Power Pack...
  • Page 7 micro-USB connection to external power supply Battery check button Indicator light for battery status and external power Power Pack lock and release Accessories Power supply with USB cable (< 1 m) wallplug adapter Power supply and charger specification Power supply output voltage: 5 VDC +/-5%, current 1 A Power supply input voltage: 100-240 VAC, 50/60Hz, current...

  • Page 8: Preparing The Charger

    2. Preparing the charger Connecting the power supply a) Plug the larger end of the charging cable into the power supply. b) Plug the smaller end into the USB port on the charger. c) Plug the power supply into a power outlet. d) The indicator light is green when the charger is connected to the power supply...

  • Page 9: Charging The Hearing Aids

    3. Charging the hearing aids Low power: You will hear two beeps when the battery is low. You will have approximately 60 minutes before you have to charge the hearing aids (this can vary, depending on the hearing aid settings). Before using your hearing aids for the first time, it is recommended to charge them for 3 hours.
  • Page 10 Please refer to chapter 2 for how to set up the charger. Insert the hearing aids into the charging slots. The hearing aids will automatically be switched off when inserted into the charger. Make sure the left and right hearing aid markings match the left (blue), right (red) indicators next to the charging slots.
  • Page 11 The indicator light on the hearing aids will show the charging state of the battery until the hearing aids are fully charged. When fully charged the indicator light will remain on, i.e. solid green light.
  • Page 12 The charging process will automatically stop when the batteries are fully charged, so the hearing aids can be safely left in the charger. It can take up to 3 hours to charge the hearing aids. The charger cover can be closed while charging.
  • Page 13 Remove the hearing aids from the charging slots by 1. tilting the hearing aids gently towards the back and 2. lifting them out of the charger. Do not hold the tubes to remove the hearing aids from the charger as this can damage the tubes.
  • Page 14 The hearing aids switch on automatically when removed from the charger. The indicator light starts blinking. The solid green light indicates the hearing aids are ready. To switch off the charger, remove the power supply from the power outlet. Turn off your hearing aids before inserting them in the disconnected charger to store them.

  • Page 15: Using The Optional Power Pack

    4. Using the optional Power Pack Attach the Power Pack to the bottom of the charger and lock Plug in the micro-USB and connect to an external power supply. The Power Pack and hearing aids will be charged at the same time. While connected to an external power supply, the Power Pack indicator light will show the current battery charge status of the Power Pack.
  • Page 16 micro-USB connection to external power source Indicator light battery status: 0%-29% • 30%-59% •• 60%-100% ••• Battery check push button Power Pack lock and release To check the remaining battery capacity of the Power Pack, press the battery check push button. The indicator lights will show the status.
  • Page 17 If the device has been subject to storage and transportation conditions outside of the recommended use conditions, wait 15 minutes before starting the device This charger is classified as IP22. This means that the charger is protected from vertically falling drops of water when the charger is tilted up to 15 degrees from the horizontal.

  • Page 18: Operation, Transport And Storage Conditions

    5. Operation, transport and storage conditions Please ensure to operate, transport and store the charging accessories according to the following conditions: Operation Transport storage* Temperature +5° to + 40° -20° to + 60° -20° to + 60° Celsius Celsius Celsius Maximum range (41°...

  • Page 19: Care And Maintenance

    6. Care and maintenance Expected service life The charger has the expected service life of five years. The device is expected to remain safe for use for this duration. Commercial service period Diligent and routine care of your charger contributes to outstanding performance and a long service life.
  • Page 20 General information Please make sure that the charger is used and maintained as described in this user guide. Daily Make sure that charging slots are clean. Never use cleaning agents such as household detergents, soap, etc. for cleaning your charger. Weekly Remove dust or dirt from the charging slots.

  • Page 21: Service And Warranty

    7. Service and warranty Local warranty Please ask the hearing care professional where you purchased your charger about the terms of the local warranty. International warranty Sonova AG offers a one year limited international warranty, valid from the date of purchase. This limited warranty covers manufacturing and material defects in the charger.
  • Page 22 Warranty limitation This warranty does not cover damage from improper handling or care, exposure to chemicals or undue stress. Damage caused by third parties or non-authorized service centers renders the warranty null and void. This warranty does not include any services performed by a hearing care professional in their office.

  • Page 23: Compliance Information

    8. Compliance information Europe: Declaration of Conformity Hereby Sonova AG declares that this product meets the requirements of the EU Medical Devices Regulation 2017/745 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired...
  • Page 24 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 25 Compliance with emission and immunity standards Emission standards EN 60601-1-2 IEC 60601-1-2 EN 55011 CISPR11 CISPR32 CISPR25 EN 55025...
  • Page 26 Immunity standards EN 60601-1-2 IEC 60601-1-2 EN 61000-4-2 IEC 61000-4-2 EN IEC 61000-4-3 IEC 61000-4-3 EN 61000-4-4 IEC 61000-4-4 EN 61000-4-5 IEC 61000-4-5 EN 61000-4-6 IEC 61000-4-6 EN 61000-4-8 IEC 61000-4-8 EN 61000-4-11 IEC 61000-4-11 IEC60601-1 ISO 7637-2...

  • Page 27: Information And Description Of Symbols

    9. Information and description of symbols With the CE symbol, Sonova AG confirms that this product meets the requirements of the EU Medical Device Regulation 2017/745. Indicates the medical device manufacturer, as defined in EU Medical Device Regulation 2017/745. Indicates the Authorized representative in the European Community.
  • Page 28 This symbol indicates that it is important for the user to pay attention to the relevant warning notices in this user guide. Important information for handling and product safety. Indicates the manufacturer’s serial number so that a specific medical device can be identified. Indicates the manufacturer’s catalogue number so that the medical device can be identified.
  • Page 29 IP Rating = Ingress Protection Rating. IP22 rating indicates that the device is protected against solid foreign objects of 12,5 mm diameter and greater and is additionally protected against vertically falling water drops when enclosure tilted up to 15°. Temperature during transportation and storage: –20°...
  • Page 30 The symbol with the crossed-out garbage bin is to make you aware that this charger may not be thrown away as normal household waste. Please dispose of old or unused charger, at waste disposal sites intended for electronic waste, or give your charger to your hearing care professional for disposal.
  • Page 31 Symbols applicable to the European power supply only Power supply with double isolation. Device designed for indoor use only. Safety isolating transformer, short circuit proof.

  • Page 32: Troubleshooting

    Troubleshooting Problem Causes Charging does not start Charger not connected to power supply Hearing aids not inserted correctly into charger If the problem persists, contact your hearing care professional for assistance.
  • Page 33 What to do Connect the charger to power supply (chapter 2) Insert hearing aids correctly into the charger (chapter 3) Please check https://www.phonak.com/com/en/support.html for further information.

  • Page 34: Important Safety Information

    11. Important safety information Please read the relevant safety information and limitations- of-use information on the following pages before using your device. Intended use The charger is intended to charge the battery of the rechargeable hearing aids. The Power Pack is intended to allow the compatible charger to recharge the battery of the rechargeable hearing aid, when no external power source is available.
  • Page 35 Indication Indications are not derived from the charging accessories but from the compatible hearing aids. General clinical indications for the use of hearing aids and Tinnitus feature are:   • Presence of a hearing loss • Uni- or bilatera • Conductive, sensorineural or mixed •...
  • Page 36 • Neural hearing loss   The primary criteria for the referral of a patient for a medical or other specialist opinion and / or treatment are as follows:     • Visible congenital or traumatic deformity of the ear; • History of active drainage from the ear in the previous 90 days;...
  • Page 37 The hearing care professional may decide that referral is not appropriate or in the best interests of the patient when the following applies:     • When there is sufficient evidence that the condition has been fully investigated by a medical specialist and any possible treatment has been provided;...
  • Page 38 Clinical benefits The charging accessories themselves do not provide a direct clinical benefit. An indirect clinical benefit is provided by enabling the rechargeable hearing aids to achieve their intended purpose. Any serious incident that has occurred in relation to the charging accessories, should be reported to the manufacturer representative and the competent authority of the state of residence.
  • Page 39 11.1 Hazard warnings Do not use the charging accessories in explosive areas (mines or industrial areas with danger of explosions, oxygen rich environments or areas where flammable anesthetics are handled) The device is not ATEX certified. Keep the charging accessories out of reach of children, individuals with cognitive impairment and pets.
  • Page 40 The following is only applicable for persons with active implantable medical devices (i.e. pacemakers, defibrillators, etc.): Keep the charging device at least 15 cm (6 inches) away from the active implant. If you experience any interference do not use the charging device and contact the manufacturer of the active implant.
  • Page 41 Cables and cords wrapped around the neck may cause strangulation. Do not leave the device and its components unattended with children, individuals with cognitive impairment or pets. The USB port of the charger is to be used for the described purpose only.
  • Page 42 11.2 Information on product safety Protect your charging accessories from heat (never leave near a window or in the car). Never use a microwave or other heating devices to dry your charging accessories (due to risk of fire or explosion). Ask your hearing care professional about suitable drying methods.
  • Page 43 Do not use your charging accessories in areas where electronic equipment is prohibited. The hearing aids have to be dry before charging. Otherwise the charging reliability cannot be guaranteed.
  • Page 44 Your hearing care professional: Australian Sponsor: Sonova Deutschland GmbH Sonova Australia Pty Ltd Max-Eyth-Strasse 20 12 Inglewood Place, 70736 Fellbach-Oeffingen Norwest NSW 2153 Germany Australia Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland www.phonak.com...
