eCopy ScanStation Support Frame Kit
1NS-0056 v01

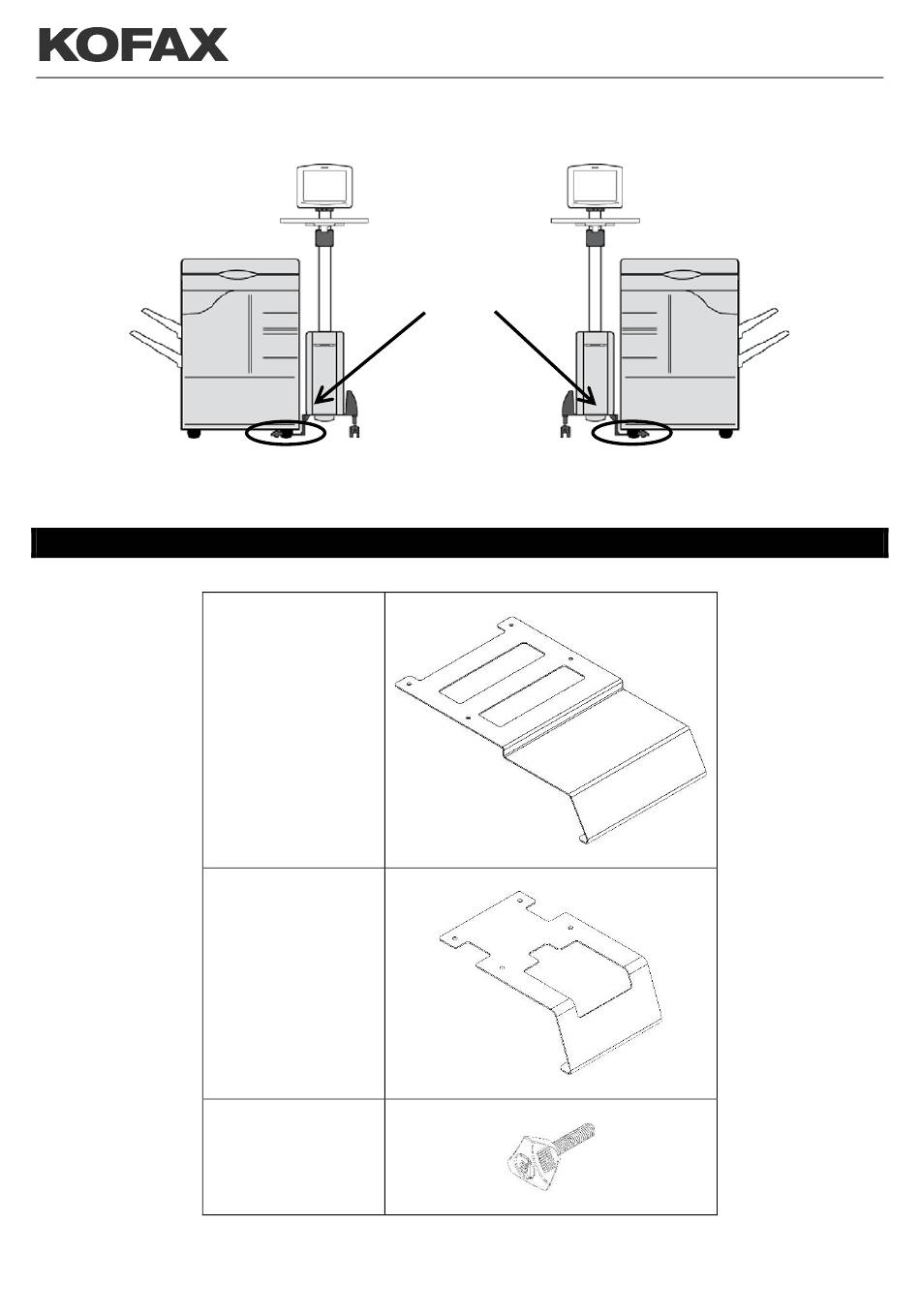

The Kofax eCopy ScanStation is intended for use with its forklifts positioned beneath a full-sized,
floor-standing Multi-Function Printer:
Forklifts
These instructions explain how to assemble the eCopy ScanStation Support Frame Kit for situations when
the stand is not positioned with its forklifts beneath a Multi-Function Printer.
Kit contents
Side frame
End frame, 2x
Knob, M6 x 25 mm, 4x
© 2020 Kofax. Kofax and the Kofax logo are trademarks of Kofax, registered in the United States and/or other countries.
1 |
P a g e
All other trademarks are the property of their respective owners.
