Summary of Contents for Boca B-BOX VE0100

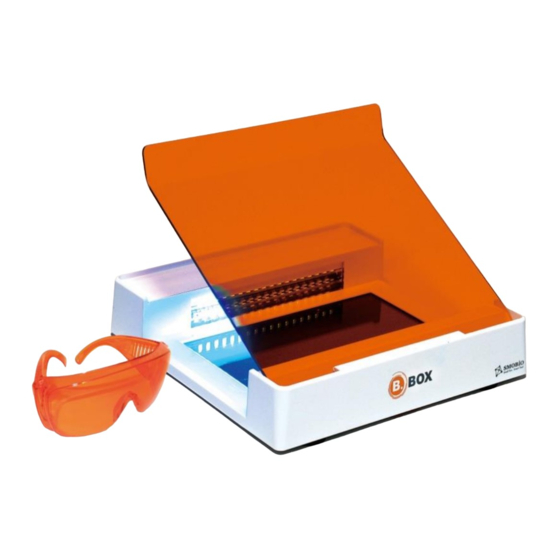

- Page 1 B-BOX™ Blue Light LED epi-illuminator Catalogue No.: VE0100 Operator’s Manual Ver. 1.3.1...
- Page 2 Checking List VE0100 B-BOX™ Blue Light LED epi-illuminator VE0101 dapter, AC 100-240V, 50/ 60 Hz, 1.8m Power Cord VE0102 ulti-angle Filter Plate (0°, 30°, 60° and 90°) for B-BOX , Acrylic, Amber Color, 154 x 194 (mm) VE0103 Goggles, Amber Color Operator’s Manual and Warranty Certificate 2013 Product of SMOBiO, Inc.
- Page 3 Contents A. Introduction B. Important Safety Information C. Description and Specifications D. Installation and Operation E. Warranty Policy F. Troubleshooting G. Ordering Information H. Related Products www.bocascientific.com • (781) 686-1631 • info@bocascientific.com...
- Page 4 A. Introduction The SMOBiO B-BOX™ Blue Light LED epi-illuminator is designed to meet the need of a light and compact bench top illuminator for visualizing electrophoresis products. The B-BOX™ features light-emitting diode (LED) blue light modules which emit high intensity blue light of 470 nm wave length while emitting only minute amount of heat.
- Page 5 C. Description and Specifications Overall Dimension (mm): 201.4 x 200 x 38 (D x W x H) Viewing Area (mm): 158 x 96 (D x W) Wavelength of LED (nm): 470 Number of LED Unit: 72 PCS Super Flux LED ...
- Page 6 Caution!!! Do not place heavy object on the filter plate or bend it forcefully. Avoid contact of the filter plate’s viewing surface with rough surfaces. Avoid organic solvent such as isopropanol or ethanol while cleaning the illuminator. ...
- Page 7 E. Warranty policy The B.BOX™ Blue Light LED epi-illuminator is warranted against defects and workmanship for a period of one year. Any defect which occurred within the warranty period will be repaired or defective part replaced by SMOBiO without charge. However under the following circumstances the warranty will be specifically excluded: User failed to register for warranty or unable to provide proof of purchase ...
- Page 8 G. Ordering Information VE0100 B-BOX™ Blue Light LED epi-illuminator, DC 12 Volt, 0.72 Amp Complete Set Includes: VE0101, VE0102, VE0103 and Operator’s Manual VE0101 Adapter, AC 100-240V, 50/ 60 Hz, 1.8m Power Cord VE0102 Multi-angle Filter Plate (0°, 30°, 60° and 90°) for B-BOX , Acrylic, Amber Color, 154 x 194 (mm) VE0103...
