Summary of Contents for Sequoia F.8L Falco

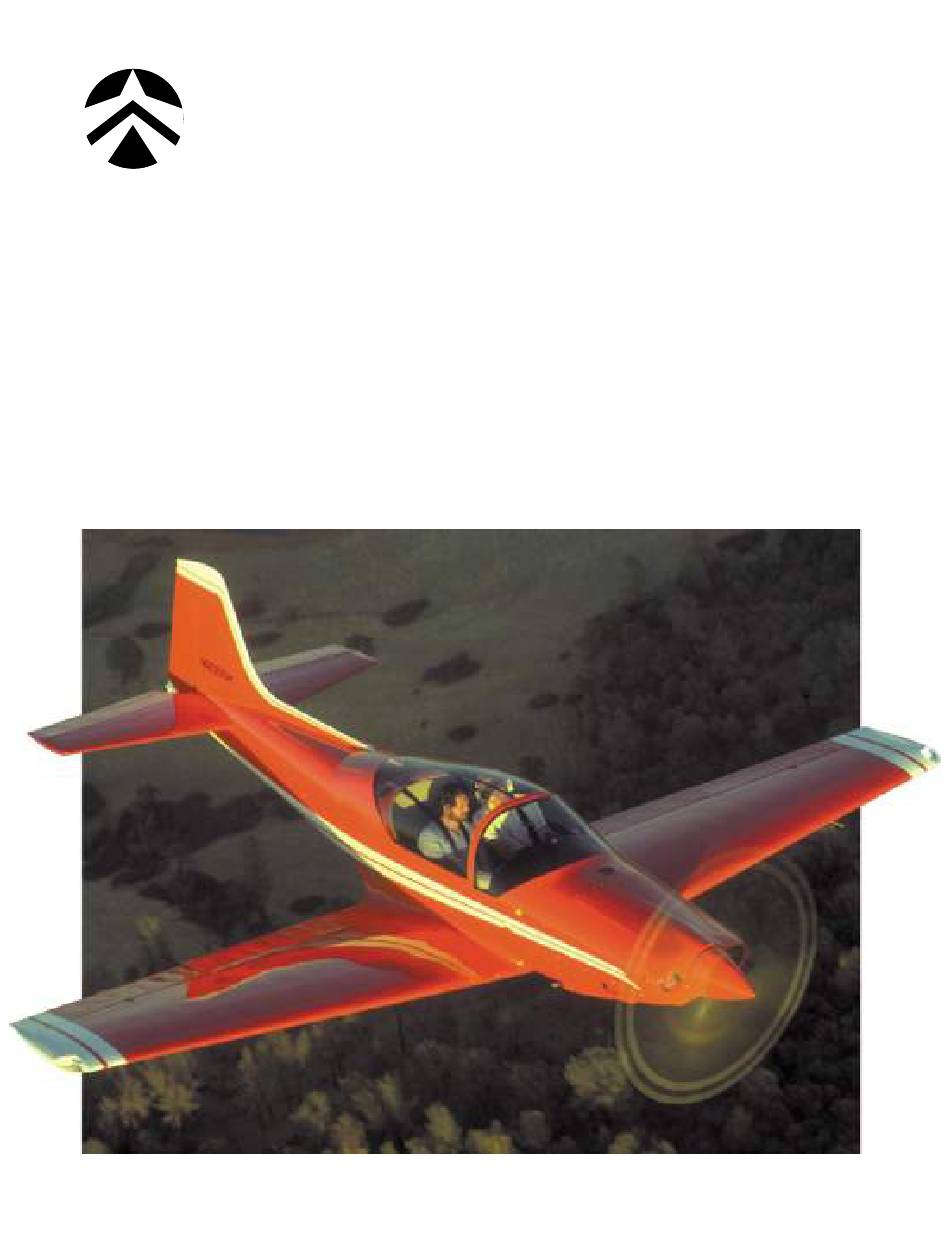

  • Page 1 F.8L Falco Flight Manual...
  • Page 2 General Description The F.8L Falco is a two seat aircraft with side by side seating for the pilot and passenger and provisions for adding a third seat in the luggage compartment behind the pilot and passenger's seat. This third seat is limited to a maximum weight of 90 pounds.
  • Page 3 20° of flaps may be used for the full range indicated by the white arc. The maximum landing gear retraction or extension speed is indicated by a small . The maneuvering speeds are also indicated, the utility category and for the acrobatic category. F.8L Falco Flight Manual 1–2...
  • Page 4 Isocom, and the magnetic compass. The instrument panel is provided with post lights at the instruments. In addition, the glare shield has four lights which illuminate the instrument panel. F.8L Falco Flight Manual 1–3...
  • Page 5 F l a p s Percent of wing span Average relative chord Movement Neutral to 45° down Surface area (each) 5.06 sq ft Fuselage Overall length 21’ 4” Interior width (cockpit) 4 0 ” Height 7’ 6” F.8L Falco Flight Manual 1–4...
  • Page 6 Oil capacity 8 qts Oil used Above 60°F SAE 50 32°F to 90°F SAE 40 -4°F to 68°F SAE 30 Below 14°F SAE 20 ◆ Note: Mineral oil is recommended during engine break-in (first 50 hours). F.8L Falco Flight Manual 1–5...
  • Page 7 Circuit breaker (5 amp) panel lights Circuit breaker (5 amp) instrumentation Circuit breaker (5 amp) instrumentation Circuit breaker (7.5 amp) COM 1, NAV 1 Circuit breaker (7.5 amp) COM 2, NAV 2 Circuit breaker (5 amp) transponder, altitude encoder F.8L Falco Flight Manual 1–6...
  • Page 8 Marker beacon receiver, with switch and three lights (optional) Transponder (optional) Altitude encoder (optional) LORAN navigation receiver (optional) COM 1 internal antenna COM 2 internal antenna NAV internal antenna NAV splitter Marker beacon internal antenna DME internal antenna Transponder internal antenna F.8L Falco Flight Manual 1–7...
  • Page 9 Left hand throttle control lever (optional) Cabin heat Fresh air vents (2) Windshield defrost (optional) Carburetor heat (if applicable) Alternate air (if applicable) Other Equipment Dry vacuum pump Suction regulator with filter Instrument filter Alternate static source F.8L Falco Flight Manual 1–8...
  • Page 10 Section 2 Operating Limitations The following limitations must be observed when flying the F.8L Falco with Lycoming engine IO-320-B1A and Hartzell HC-C2YL-1BF/F7663-4 constant speed propeller. Engine Limitations Maximum Temperature Cylinder Head For all operations: 2700 245°F 500°F ◆ Note: For 180 hp engines, avoid continuous operation between 2000 and 2250 rpm.
  • Page 11 3 to 19-7/8 U.S.gal. Red arc: 0 to 3 U.S. gal. ◆ Note: Inverted header tank, if installed, increases capacity of aft tank by approximately 2 U.S. gallons, which is not indicated on the gauge. F.8L Falco Flight Manual 2–2...
  • Page 12 3. Any increase in maximum weight will result in an increase in take-off and landing roll, and will also decrease the rate of climb. For safe operations, the maximum weight should allow the aircraft to climb at a minimum of 600 ft/min in sea-level standard conditions. F.8L Falco Flight Manual 2–3...
  • Page 13 Total moment at takeoff: 135,731.4 CG at takeoff: 135,731.4 ÷ 1,815 = 74.78 Okay, within the 68.5” to 74.8” limits CG at landing: 115,125.0 ÷ 1,560 = 73.80 Okay, within the 68.5” to 74.8” limits F.8L Falco Flight Manual 2–4...
  • Page 14 LANDING: GEAR: DOWN FLAPS: 15° FLAPS: 20° MIXTURE: RICH MIXTURE: RICH CANOPY: LOCKED FUEL PUMP: ON SEAT BELTS: FASTENED CARB HEAT: ON If equipped with carbureted engine, fixed pitch propeller and no electric fuel pump: F.8L Falco Flight Manual 2–5...
  • Page 15 At audio panel: COM1 COM1 COM 2 NAV 1 NAV 2 COM 2 At master and alternator switches: MASTER ALTERNATOR At ignition switch: OFF R L BOTH START At alternate static source: ALTERNATE STATIC SOURCE F.8L Falco Flight Manual 2–6...
  • Page 16 WARNING: RELEASE ALL AIR PRESSURE FROM STRUT BEFORE DISASSEMBLY At front fuel tank filler cap: CAPACITY: 21 U.S. GALLONS FUEL: 100/130 AVGAS At aft fuel tank filler cap: CAPACITY: 19 U.S. GALLONS FUEL: 100/130 AVGAS At oil dip stick: CAPACITY: 8 QTS F.8L Falco Flight Manual 2–7...
  • Page 17 ◆ Note: If the propeller continues to turn (windmill), no other action (other than switching tanks) is normally necessary. If the propeller stops turning, it may be necessary to lean the mixture of fuel injected engines to restart the engine. F.8L Falco Flight Manual 3–1...

  • Page 18: Table Of Contents

    Immediate action: Ignition switch ..............O f f Mixture...................Lean Fuel selector valve ............O f f Make emergency landing as described below. F.8L Falco Flight Manual 3–2...
  • Page 19 If the propeller fails to stop in a horizontal position, actuate the starter to inch the propeller to a horizontal position so as to preclude damage. Turn the master switch OFF. Adjust approach speed as required for flaps up landing. F.8L Falco Flight Manual 3–3...

  • Page 20: Fuel Selector

    As the ground is approached, the aircraft may be flared out by carefully employing the elevator trim control. The throttle is closed immediately prior to contacting the ground. F.8L Falco Flight Manual 3–4...
  • Page 21 If the aircraft is in a flat spin and standard recovery techniques have failed, experience with other aircraft has shown that opening the canopy can sometimes assist in the recovery since the airflow over the canopy can cause the aircraft to pitch nose-down. F.8L Falco Flight Manual 3–5...
  • Page 22 Such preparations, however, should not be used if they will prevent the control of the aircraft. All such impacts should be made in a normal landing attitude (wings level, nose high) and as slow as possible (flaps fully down). F.8L Falco Flight Manual 3–6...

  • Page 23: Ignition Switch

    If the engine has been inactive for several hours, especially in cold weather, rotate the propeller by hand for two or three complete turns. During cold weather operation, make a thorough check of airplane for freedom from frost, snow and ice on exterior surfaces. F.8L Falco Flight Manual 4–1...

  • Page 24: Propeller Rpm

    Engine will crank over 6 to 8 times before starting. Mixture (after engine fires)............Rich (Advance mixture at moderate rate—about 1 second. Too rapid enrichment can choke engine.) Throttle (after engine starts)..........Retard to 800 RPM Minimum oil pressure must be indicated within 30 seconds F.8L Falco Flight Manual 4–2...
  • Page 25 During low power warm-up and taxi, the mixture may be leaned approximately halfway. The mixture must be full rich for takeoff. * During warm-up and taxi, the auxiliary fuel pump is off to check the operation of the engine-driven mechanical fuel pump. F.8L Falco Flight Manual 4–3...
  • Page 26 Failure to use aft fuel tank after intial climb can cause CG of aircraft to shift beyond aft limits, creating a dangerous situation. When the aft CG limits are exceeded, the aircraft will become unstable and uncontrollable. ▲ F.8L Falco Flight Manual 4–4...
  • Page 27 Carburetor heat................O f f Auxiliary fuel pump..............O f f Flaps (not the landing gear!).............U p Parking Parking brake..................Set Avionics ....................O f f Tachometer ..................1000 RPM Mixture....................Lean Ignition switch (when engine stops)........O f f All switches..................O f f F.8L Falco Flight Manual 4–5...
  • Page 28 All operating data have been calculated on the basis of measurements obtained during flight testing on original production F.8L Falco aircraft, and (for such aircraft) are reproducible under similar conditions providing the aircraft and engine are in good condition and the pilot possesses average flying skill.
  • Page 29 Outside Air Temperature Altitude 0°F 25°F 50°F 75°F 100°F Sea Level 2000 ft 4000 ft 6000 ft Stalling Speed (Knots) Power off Angle of bank 0° 20° 40° 60° Flaps up 83.5 Flaps full down F.8L Falco Flight Manual 5–2...
