ZETTLER PROFILE FBI800 Quick Start Manual

PROFILE Fire detection system
FBI800 Fire Brigade Interface Card
Part No. 557.202.845
1
2
3
4
5
6
7

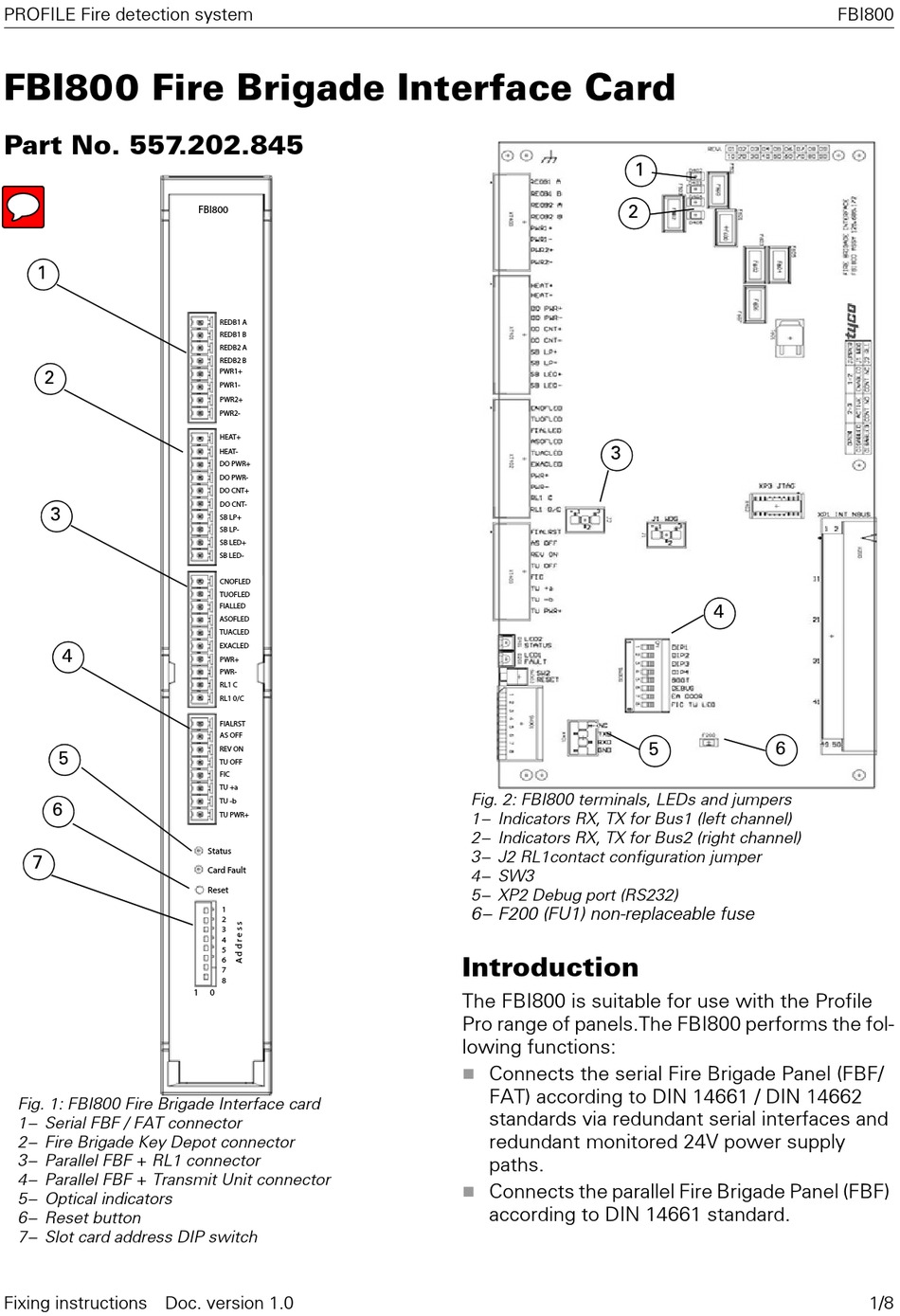

Fig. 1: FBI800 Fire Brigade Interface card
1 – Serial FBF / FAT connector
2 – Fire Brigade Key Depot connector
3 – Parallel FBF + RL1 connector
4 – Parallel FBF + Transmit Unit connector
5 – Optical indicators
6 – Reset button
7 – Slot card address DIP switch
Fixing instructions Doc. version 1.0
FBI800
REDB1 A
REDB1 B
REDB2 A
REDB2 B
PWR1+
PWR1-
PWR2+
PWR2-
HEAT+
HEAT-
DO PWR+
DO PWR-
DO CNT+
DO CNT-
SB LP+
SB LP-
SB LED+
SB LED-
CNOFLED
TUOFLED
FIALLED
ASOFLED
TUACLED
EXACLED
PWR+
PWR-
RL1 C
RL1 0/C
FIALRST
AS OFF
REV ON
TU OFF
FIC
TU +a
TU -b
TU PWR+
Status
Card Fault
Reset
1 0
2
3
Fig. 2: FBI800 terminals, LEDs and jumpers
1 – Indicators RX, TX for Bus1 (left channel)
2 – Indicators RX, TX for Bus2 (right channel)
3 – J2 RL1contact configuration jumper
4 – SW3
5 – XP2 Debug port (RS232)
6 – F200 (FU1) non-replaceable fuse
Introduction
The FBI800 is suitable for use with the Profile
Pro range of panels.The FBI800 performs the fol-
lowing functions:
 Connects the serial Fire Brigade Panel (FBF/
FAT) according to DIN 14661 / DIN 14662
standards via redundant serial interfaces and
redundant monitored 24V power supply
paths.
 Connects the parallel Fire Brigade Panel (FBF)
according to DIN 14661 standard.
1
4
6
5
FBI800
1/8
