Summary of Contents for Htzsafe HB-4040S

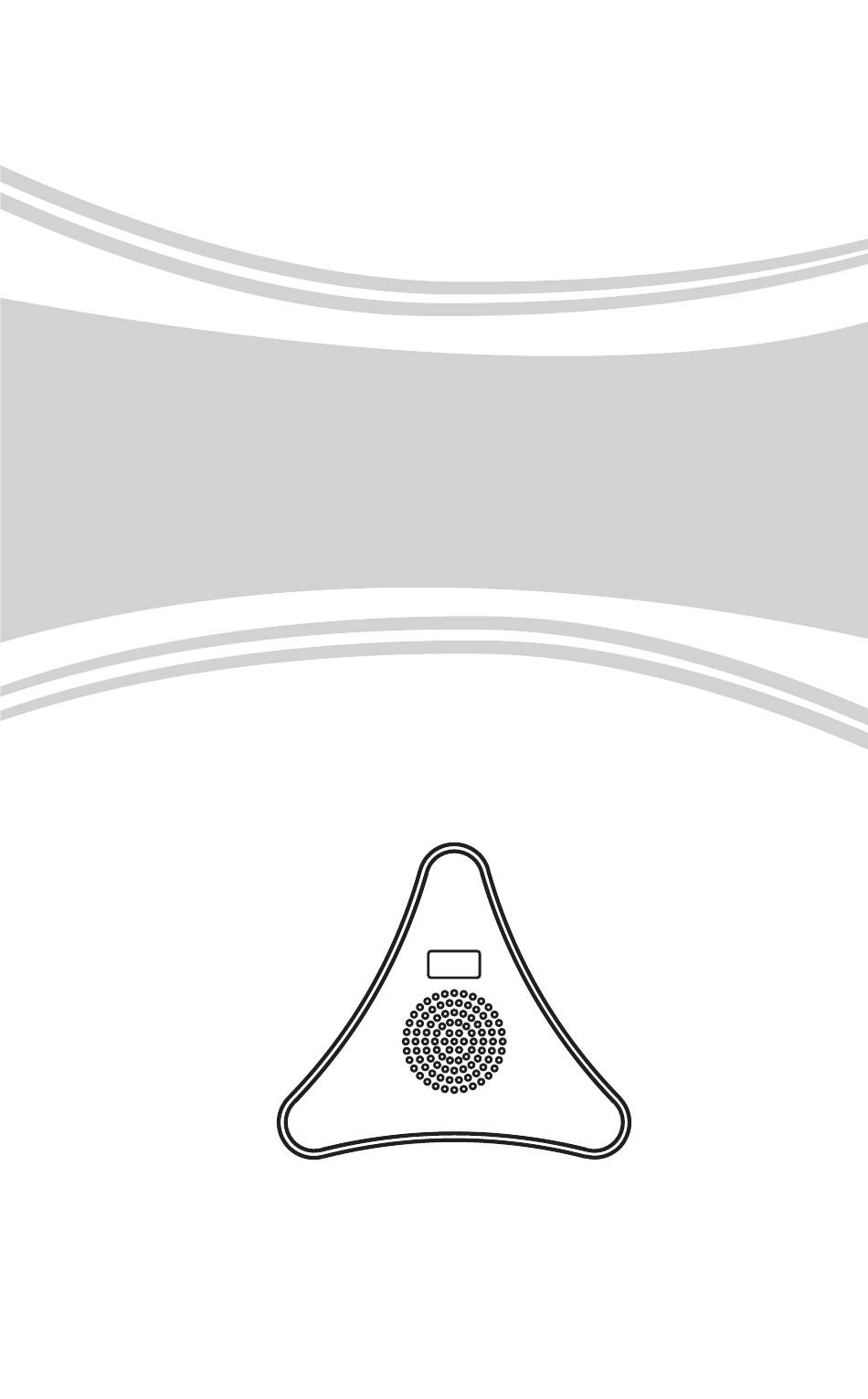

- Page 1 Wireless Alarm Receiver User Manual...

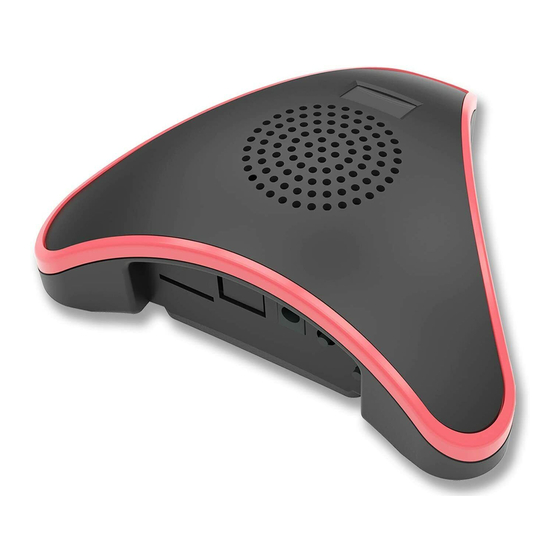

- Page 2 1. Configuration List 1 piece (includes 1 set installation accessories) Wireless Alarm Receiver 1 piece English Manual 2. System Components And Usage Wireless Alarm Receiver Indicator Light Speaker Indicator Light: Will be red if power on;Will be flashing if on setting mode Speaker: Will alarm for 5 seconds if the detector be triggered Backup Battery Compartment...
- Page 3 Power Tone Button ON/OFF Power : power jack(DC5V) ON/OFF: power switch(turn on/off the wireless alarm receiver) set button(add/delete the detectors of the wireless alarm receiver) Tone Button: switch the ring tones(total 4 ring tones optional) 3. Operation Instructions (1)How to add detectors to the wireless alarm receiver Step 1 Power on the wireless alarm receiver...
- Page 4 Step 2 long time press the “ON/OFF” button for 5 seconds and release the button when the indicator light flashing; light up flashing ON/OFF ON/OFF press the ON/OFF button release the button for 5 seconds Step 3 Trigger the detector(for example,trigger the solar&wireless photoelectric beam sensor) stop flashing (a bleep prompt and the indicator light stops flashing means the detector has been added to...
- Page 5 (2)How to delete the detectors of the wireless alarm receiver Step 1 Power on the wireless alarm receiver by the power adapter Step 2 long time press both the “ON/OFF” button and “Tone Button for 10 seconds and release ” the buttons when you heard a long bleep;...
- Page 6 5. Technical Parameters 162mm 52mm Technical Parameters Item Technical Parameters Working Voltage DC5V Static Current 20mA; Alarming Current 180mA Working Current Wireless Frequency 433MHz FSK+FHSS Backup Battery 4 pieces AA 1.5V batteries(package is not included)
Need help?
Do you have a question about the HB-4040S and is the answer not in the manual?
Questions and answers
The HB-4040S receiver does not turn on when plugged in. It does when batteries are in and not plugged in. I bought a sensor separate to use with HB-4040S receiver. It will not sync. I had an owl receiver from an earlier purchase that it will sync to. I would like for it to sync to HB-4040S. How does can I get it to do it?
1. Ensure the wireless alarm receiver is correctly connected to the power adapter and that the adapter is functional.
2. Check if the backup batteries (4 AA 1.5V batteries, not included) are installed and functional.
3. If the receiver still does not turn on, try using a different power outlet or adapter.
4. Once the receiver powers on, follow these steps to sync a sensor:
- Press and hold the "ON/OFF" button for 5 seconds until the indicator light starts flashing.
- Trigger the sensor (e.g., activate the photoelectric beam sensor).
- If successful, a bleep sound will play, and the indicator will stop flashing.
- Trigger the sensor again to confirm it has been added.
This answer is automatically generated
@Mr. Anderson It is the adaptor. Should I send it all back or just the adapter?
