CIPU CSPPV711 Manual

Hide thumbs

Advertisement

Table of Contents

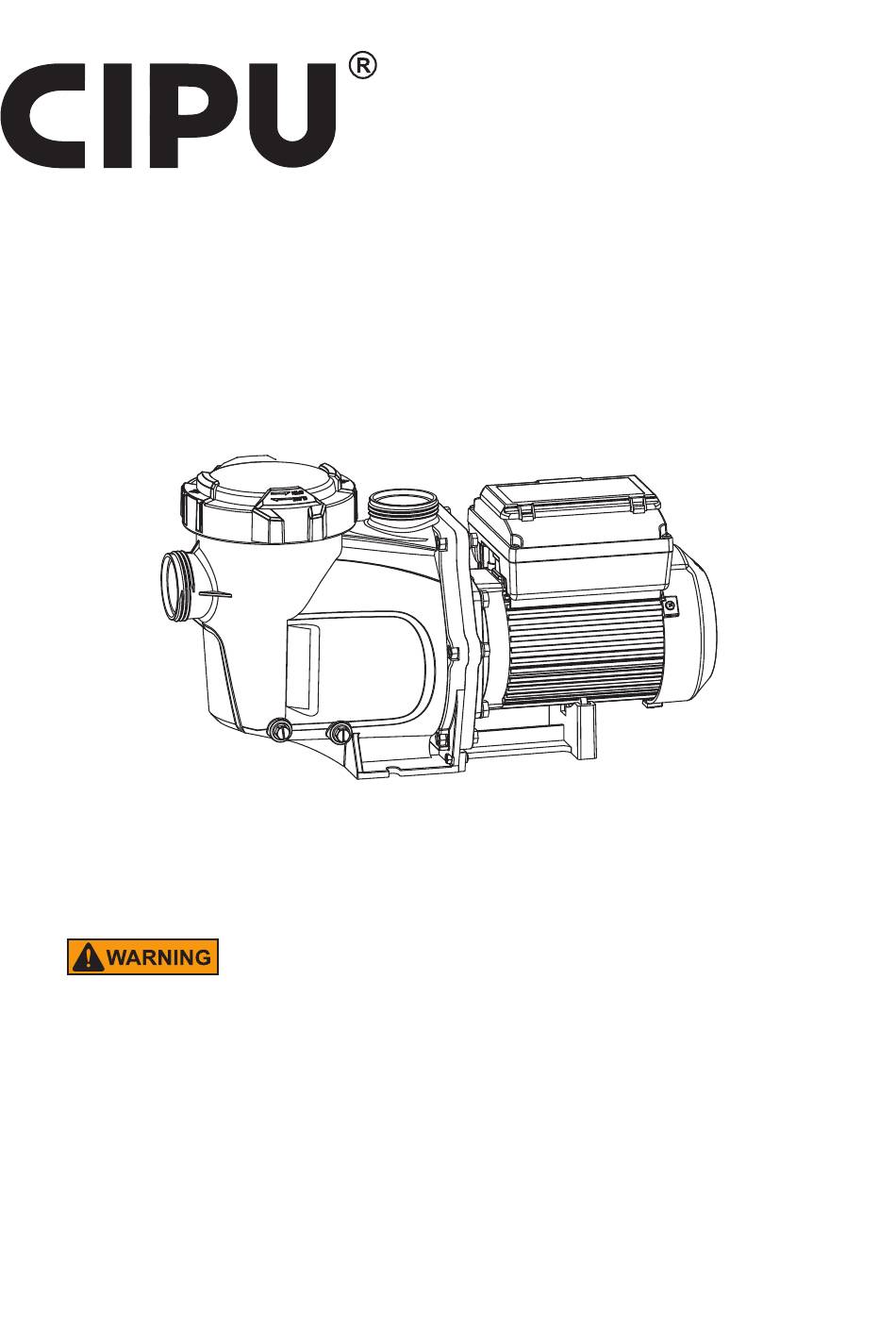

Inground
VS Pumps
Item # CSPPV711
READ AND FOLLOW ALL INSTRUCTIONS IN THIS OWNER'S
MANUAL AND ON EQUIPMENT.
This equipment must be installed and serviced by a qualified technician or professional,
in accordance with the National Electrical Code and all applicable local codes and
Ordinances. Improper installation can create electrical hazards which could result in
property damage, serious injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation and safe
use of this product. Once the product has been installed this manual must be given to
the owner/ operator of this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSPPV711 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CIPU CSPPV711

  • Page 1 Inground VS Pumps Item # CSPPV711 READ AND FOLLOW ALL INSTRUCTIONS IN THIS OWNER’S MANUAL AND ON EQUIPMENT. This equipment must be installed and serviced by a qualified technician or professional, in accordance with the National Electrical Code and all applicable local codes and Ordinances.
  • Page 2 Water temperature in excess of 100° F (37.7° C) may be hazardous to your health. Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above normal body temperature of 98.6° F (37° C.). Effects of hyperthermia include: (1) Unawareness of impending danger.

  • Page 3: General Safety Rules

    WARNINGS AND IMPORTANT SAFETY PRECAUTIONS SUCTION ENTRAPMENT HAZARD Hair Entanglement – When the hair tangles or knots in the drain cover, trapping the swimmer underwater. This hazard is present when the flow rating of the cover is too small for the pump or pumps.

  • Page 4: Installation

    8. The operating safety of the pump is only guaranteed if the installation and service instructions are correctly followed. 9. The limit values stated in the technical table should not be exceeded under any condition. 10. In the event of defective operation or fault, contact the technical support department of the manufacturer or it’s nearest authorized agents.
  • Page 5 6. Install the pump with a rear clearance of at least 3 inches (76.2mm) so that the motor can be removed easily for maintenance and repair. See Figure 1. Piping 1. For improved pool plumbing, it is recommended to use a larger pipe size. When installing the inlet and outlet fittings (male adaptors), use thread sealant.
  • Page 6 prevent reverse rotation of the impeller and motor. Electrical Requirements ·Install all equipment in accordance with the National Electrical Code and all applicable local codes and ordinances ·A means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

  • Page 7: Production Introduction

    Grounding 1. Permanently ground the motor using the green ground screw, as shown below. Use the correct wire size and type specified by National Electrical Code. Be sure the ground wire is connected to an electrical service ground. 2. The pump should be permanently connected to a circuit breaker, 2-pole timer or 2-pole relay Note: If AC power is supplied by a GFCI circuit breaker, the pump should be wired on its own independent circuit unless the pump is operated in tandem with a salt chlorine generator.

  • Page 8: Arrow Buttons

    6! Keep records of scheduled programs for maximally 15 days after power off. 7! Run 5 minutes high speed when first start the pump 8! Step-by-step acceleration and deceleration of the speed to extend the use life of the motor and control panel 2.
  • Page 9 3.Stop And Run The Pump 3.1 Start the Pump 1) Make sure the pump is connected with electricity. When power is on, the display screen will display the time. Press one of ECO/CLEAN/BOOST, the pump will run. The light on the corresponding program will be lit.
  • Page 10 NOTE: PRM for S2 and S4 or S1 and S3 are always the same. The default for S1 and S3 is2400RPM, the adjustable range is 2400 to 2850RPM. The default for S2 and S4 is 1500RPM.The adjustable range is 1000 to 2400PRM. 3.4 Pump Run Under Pre -programmed Conditions Pump has three quick start button ECO/CLEAN/BOOST, as below figure.
  • Page 11 4.2 How to Set and Change Specification of MODE1/MODE2 1) Make sure STOP button is pressed before set up, and pump is not working. Press MENU, LED screen will display the current time (time will not count during set-up), use arrow buttons to adjust the time.
  • Page 13 6. Control Panel Menu Structure...
  • Page 14 7.Alert and Warnings The pump displays all alerts and warnings on the control panel. When an alarm or warning condition exists, the corresponding LEDs will be lit on the display. All control panel buttons are disabled until the alarm or warning is acknowledged with the ENTER button. Disconnect power to the pump and wait until the screen has all turned off.

  • Page 15: Maintenance

    2. Replace the lid ensuring the o-ring is correctly located and start the pump. ring is correctly located and start the pump. After you have done this allow a few minutes (maximum) running for the pump to start After you have done this allow a few minutes (maximum) running for the pump to start After you have done this allow a few minutes (maximum) running for the pump to start delivering water.
  • Page 16 4. Before starting the pump, verify the c 4. Before starting the pump, verify the calibration of the electrical protection devices of the alibration of the electrical protection devices of the motor and that the protections against electrical and mechanical contacts are correctly the protections against electrical and mechanical contacts are correctly the protections against electrical and mechanical contacts are correctly positioned and attached.

  • Page 17: Technical Data

    If supplementary instructions are required or if special problems arise, do not hesitate to contact the distributor or to address directly the manufacturer of the pump. TECHNICAL DATA Item CSPPV711 Input Power 125w H. Max 59ft Q.

  • Page 18: Illustrated Parts List

    Seal Assembly 647254702 Pump Cover 65244015000 Gasket M10 65244032000 Spring Washer M10 65225003000 Screw 3/8-16*1 1/2 UNC 65023399000 Variable Speed 1.5HP Motor For CSPPV711 65221008000 Screw M10*25 65232001106 Nut 3/8-16 65432002080 Drain Plug Gasket 648860105 Drain Plug 65231002106 Nut M6...

  • Page 19: Troubleshooting

    TROUBLESHOOTING Problem Cause Solution Low flow Dirty filter Backwash or clean cartridge Dirty skimmer and pump Clean skimmer and pump strainer strainer Suction air leak Make sure water level is correct through suction points. Ensure baskets and strainers are free of debris.
  • Page 20 debris. Tighten all fittings/unions on the suction side of the pump, remove and replace mechanical seal Suction blockage Locate and clean blockage Disturbance in impeller Contact supplier Cavitations Improve suction, reduce suction lift, reduce number of fittings, increase pipe size, increase discharge pressure and reduce flow by throttling discharge valve Motor runs...
