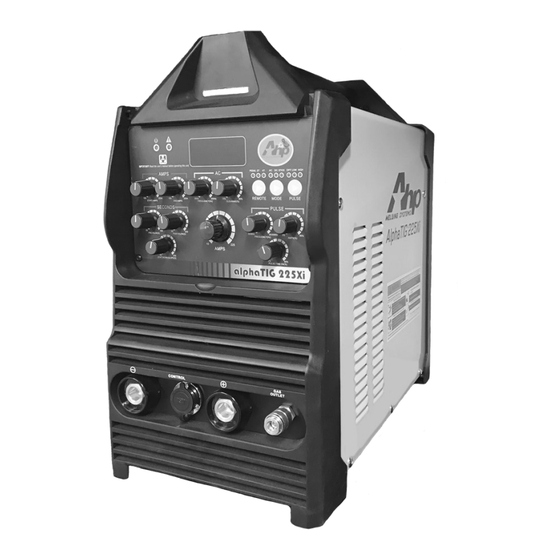

alphaTIG 225Xi
OPERATOR'S MANUAL
SAFETY AND USE INSTRUCTIONS
Purchase Date (Attach Receipt to Cover For Proof of Purchase)
Serial Number
380 Swift Ave. #11 South San Francisco, CA 94080

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the alphaTIG 225Xi and is the answer not in the manual?

Questions and answers

Related Manuals for AHP alphaTIG 225Xi

Summary of Contents for AHP alphaTIG 225Xi

  • Page 1 OPERATOR’S MANUAL Contact: tech@ahpwelds.com 925-391-3599 (Ext. 102) SAFETY AND USE INSTRUCTIONS Purchase Date (Attach Receipt to Cover For Proof of Purchase) Serial Number Issue Date: 04/01/2020 Publication: AHP225XI-101 © Ahp Welding Systems 380 Swift Ave. #11 South San Francisco, CA 94080...

  • Page 2: Table Of Contents

    CONTENTS Shipping Issues? CA Proposition 65 Warning Safety First Information Safety Warning, Dangers, Cautions and Instructions About the Alpha TIG 225Xi Warranty Statement Specifications Generator Operation Information Duty Cycle Performance Routine Required Maintenance HF Point Gap Maintenance TIG Shielding Gas Information TIG Polarity and Tungsten Type Tungsten Preparation Stick Polarity and Electrode Types...

  • Page 3: Shipping Issues

    IMPORTANT! This unit has been thoroughly tested and inspected for function at the factory. However, you should be prepared to inspect and test this unit completely within 72 hours after receipt. Please do not delay in doing this. Ahp needs to know if there is any damage caused in shipping as soon as possible.

  • Page 4: Ca Proposition 65 Warning

    Ahp Welding Systems makes no warranty for merchantability or fitness for a particular purpose or application. Any claims of such are expressly denied by Ahp Welding Systems. Fur- thermore, Ahp Welding Systems does not accept liability for injury or damages, consequential or incidental, resulting...

  • Page 5: Safety First Information

    SAFETY FIRST! Ahp Welding Systems takes safety seriously. You should as well. Please read this entire manual before using. Keep a copy of this manual available for all employees or potential users of this machine to read and thoroughly review before use.

  • Page 6: Safety Warning, Dangers, Cautions And Instructions

    Safety Warnings, Dangers, Cautions and Instructions NOTICE. This unit manual is intended for users with basic knowledge and skillset in welding. It is your responsibility to make certain that the use of this welder is restricted to persons who have read, understand and follow the warnings and instructions in this manual.
  • Page 7 Safety Warnings, Dangers, Cautions and Instructions DANGER! Welding and cutting operations pose serious inhalation hazards. Some of these hazards are immediate while others are cumulative in their effect. Do not weld in enclosed spaces or in areas without adequate ventilation. Fumes and gases released in the welding and cutting opera- tions can be toxic.
  • Page 8 Safety Warnings, Dangers, Cautions and Instructions CAUTION! Welded metal can stay hot long after welding is completed. Burns may occur. Always wear gloves or use tongs/pliers when handling welded or cut metal. Remember the heat from the metal may catch other material on fire. Always have a fire-proof area ready to place welded compo- nents until they fully cool.

  • Page 9: About The Alphatig 225Xi

    Specifications and Need-to-Know Information About the AlphaTIG 225Xi All new AHP welders, shall be warrantied to the original owner for a period to extend for 3 years from date of purchase against breakage, malfunction, or other unit failure resulting from manufacturing de- The AlphaTIG 225Xi is the latest evolution of the long running Al- fect.

  • Page 10: Specifications

    225Xi Specifications and Need-to-Know Information Feature and Range AlphaTIG 225Xi Specifications Feature Range Start Type HF and Lift Start (Lift is initiated with switch or pedal only) Input/Output Operating Range Process AC/DC TIG and Stick Input Voltage Welding Process...

  • Page 11: Generator Operation Information

    225Xi Specifications and Need-to-Know Information Generator Operation Information intentionally and repeatedly surpassing the duty cycle will shorten the lifespan of the unit. Routine overheating damage will usually leave signs that can be determined during warranty repair. Damage This unit may be used with any clean power rated 240V caused by intentional abuse of the duty cycle will not be covered un- generator with a 9000 Surge Watt rating.

  • Page 12: Hf Point Gap Maintenance

    (But if after adjustment they do coverage off weld. Move to 6-8 feet away. not fire, contact Ahp technical support at the number listed on the • Dirty or contaminated metal Preclean aluminum with Stainless front of this manual.) If you do not see the arc location, look up and...

  • Page 13: Tig Shielding Gas Information

    Argon, or find another store willing to sell 100% pure argon. (Medical grade purity is not necessary). Pure Argon is recommended for use in your Ahp TIG welder. This The regulator is a floating ball type. This means that when gas is is the best, most tried and true shielding gas for TIG.

  • Page 14: Tig Polarity And Tungsten Type

    We recommend use with Lanthanted Tungsten in AC and DC. The content of the Lanthanum is roughly between 1.5 to 2%. The color Ahp recommends Lanthanated 2% (blue band) Tungsten for all TIG band is blue for 2% Lanthanated Tungsten. For 1..5% Lanthanated welding, whether welding in DC or AC modes.

  • Page 15: Tungsten Preparation

    225Xi Specifications and Need-to-Know Information Tungsten Preparation However, if you do not have one, you may use a bench grinder with a fine grit stone that is dedicated to grinding Tungsten only. Proper Tungsten electrode preparation is important to arc stability...
  • Page 16 225Xi Specifications and Need-to-Know Information penetration. However, in certain conditions, if the work piece be- but especially for E6011 with this machine. For general purpose fab- comes magnetized, or some part of the welding table does, then the rication, and practical use, consider using E7014. This is considered a arc may become highly unstable while welding in DCEP.

  • Page 17: Front Panel Features

    If this safety feature to prevent accidental arc starting and flashing of happens discontinue use and contact Ahp Technical support. the eyes. Unplug this connection while Stick welding. Power Input Cable and NEMA 6-50 plug (Plug not pictured). The Positive Terminal.
  • Page 18 Water-Cooler Outlet This outlet is designed for use with an op- al duty cycle at maximum output when compared to most systems that tional Ahp or similar 240V water cooler plug only. Although this utilize a thermostatically controlled fan. The always-on design helps unit will supply 120V output while on 120V, the outlet should not the unit operate at a much lower average temperature than “as-...

  • Page 19: Control Panel Features

    225Xi Component Identification and Explanation of Function Control Panel Features The control panel layout has been arranged with convenience and speed of adjustment in mind. The graphics on the panel have been grouped and color coded (the brackets themselves) to remind the user what value the controls are indexed in and/or what function the con- trols are related to.
  • Page 20 225Xi Component Identification and Explanation of Function Control Panel Features 5. Down-Slope (Seconds, 0-10). The Down-Slope is used exclusively with the 2T/4T settings while the torch switch is in use. This provides a “crater fill” time and gradually diminishes the welding amperage down to the End Amp setting. This provides the user time to properly fill the crater left at the end of the weld pool.
  • Page 21 225Xi Component Identification and Explanation of Function Control Panel Features 11. Pulse Functions. Pulse can be used to control heat, wetting and warpage on thin materials. It can help improve arc control at higher frequencies, or im- prove weld appearance at lower frequencies (typically 1-3 Hz) by helping the user to time filler metal addition and forward travel speeds. Pulse is actually the oscillation of the welding Amperage between a relatively High Amp Value, and a lower Amp value.

  • Page 22: Using Ac Controls In Tig Welding

    Electrode Positive + tive. The overall effect is improved welding speed, better wet in with Cleaning lower Amperage, and longer Tungsten life. With the Ahp inverter tech- nology, the amount of Electrode Positive present in the AC cycle can be Electrode Negative- Penetration adjusted through the use of the AC balance control.

  • Page 23: Using 2T/4T/Pedal Functions

    NOTICE: It may appear that welding at higher frequencies may in- crease penetration. While some additional penetration may be Another improvement offered by this Ahp inverter welder is the ability achieved in some circumstances, much of what appears to be addition- to adjust the frequency of the AC cycle.

  • Page 24: Pulse Use And Operation

    225Xi Component Identification and Explanation of Function and proceed to the next one or group of functions. minimum to the maximum Amperage set on the panel. When the pe- dal is backed down, and eventually released, the Amperage will re- 2T operation is the simplest way of welding.

  • Page 25: Starting The Tig Arc

    225Xi Component Identification and Explanation of Function penetration. Pulse Balance is also known in the industry as “duty cy- ment. See the safety and warnings sections for more information cle”. This machine uses the term “Pulse Time On” to help convey the concerning the use of High Frequency.

  • Page 26: Welding In Stick Mode

    The stick function of this unit is designed for general purpose stick welding. It is not designed for E6010 and some other types of cellu- lose based flux rods. Ahp recommends that rods such as E6013, E7014, and E7018 be used. E 6011 may be used as well, but you may have to experiment with brands to determine the best performing rod for you.

  • Page 27: Useful Tig Settings

    225Xi Component Identification and Explanation of Function Useful TIG Settings Pulse Time On: 50-65% It is very hard to recommend a welding setting that is good for all applications. In reality, there is no such setting. However we have compiled a few basics that you can use to help you in many different settings.

  • Page 28: Series Air-Cooled Tig Torch Information

    225Xi Component Identification and Explanation of Function 26 Series Air-Cooled Welding Torch (Typical Type) Parts and Assembly. Typical Everlast and NOVA Torch Assembly (17,18, 26 Series) (Some parts may not appear exactly the same but are equal in assembly order and type.) Tungsten not included.

  • Page 29: Pinout Connector Information

    225Xi Component Identification and Explanation of Function 7 PIN CONNECTOR Bridge a Jumper to Pin 7 To Pedal or Torch Switch ON/OFF Bridge a Jumper to Pin 6 To Pedal or Torch Switch ON/OFF High Middle Potentiometer (VR)

  • Page 30: Troubleshooting

    Solution Unit will not turn on. No lights on panel. Unit Not plugged in. Bad Outlet Main Breaker tripped. Investigate cause and remedy. If switch is suspected contact Ahp. Check sim- Faulty welder switch. plest issues first. Unit switches on, no fan noise.
