Summary of Contents for Ella's Bubbles ELLA MICROBUBBLE THERAPY PET SPA

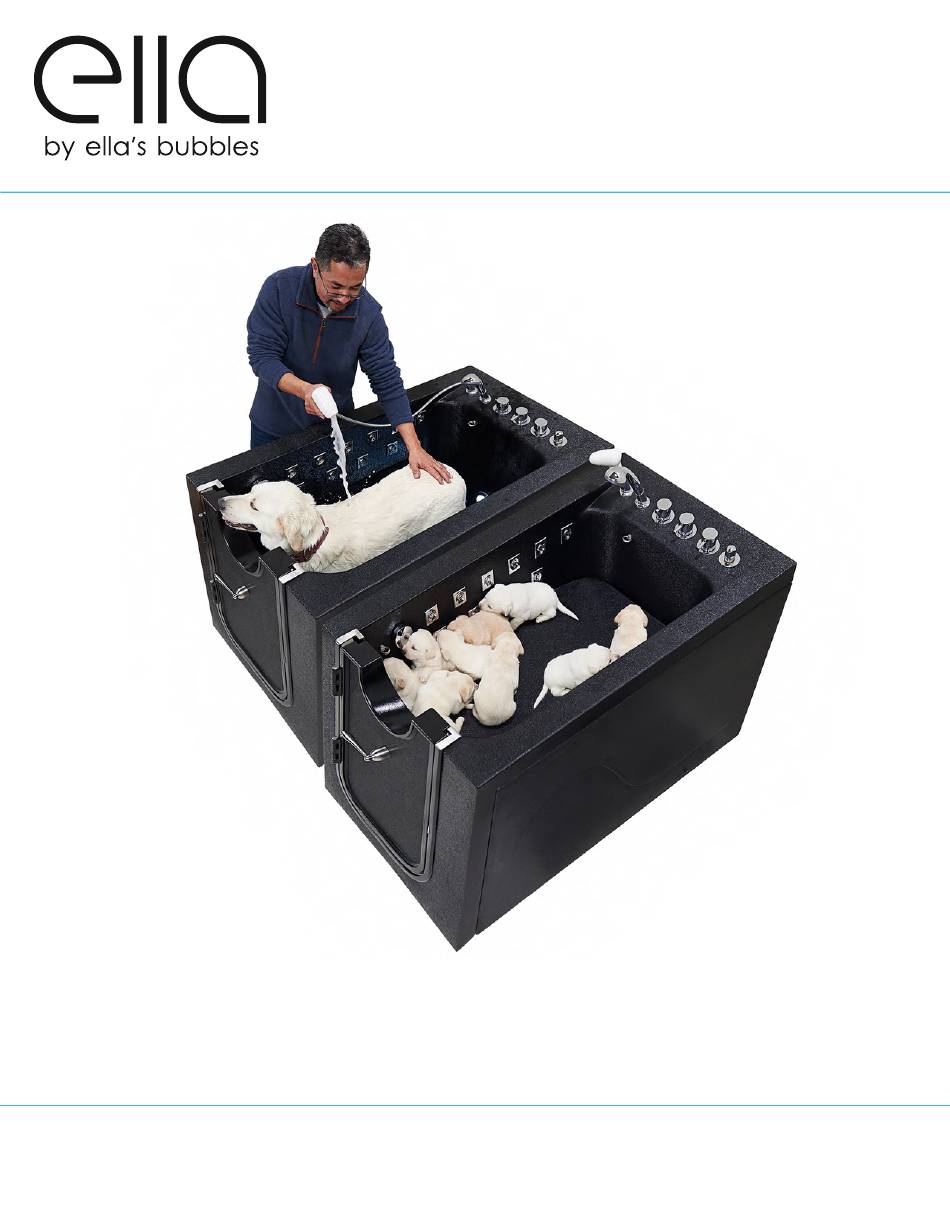

- Page 1 ELLA MICROBUBBLE THERAPY PET SPA OWNERS MANUAL Customer Support 800.480.6850 Email: info@ellasbubbles.com ellasbubbles.com...
- Page 2 Unpacking and Inspecting the Pet Spa Upon receiving your Pet Spa, please inspect the crate and carton for any damages. If damages found please take few pictures of damages with your phone and record the details on the shippers delivery document and ask the driver to sign it.
- Page 3 Pet Spa Drain Installation Warning The screw from the drain plug gets adjusted and then you tight the backnut. Backnut MUST be securely tightened. Failure to do so will cause loosening over time resulting in it coming apart and falling down the drain. Drain open all the way Drain closed completely Drain must open completely to drain properly and...
-
Page 4: Important Safety Instructions
Contract a licensed plumber and electrician for installation. Be sure you and your contractor are aware and follow all local plumbing and electrical codes. Your Ella Microbubble Therapy Pet Spa is not intended for outdoor use. Install the tub in accordance with the instructions in the manual. - Page 5 Required Steps Prior to Installation Electrical: The unit MUST be connected to a circuit protected by a ground fault circuit interrupter (GFCI) provided and installed by a licensed electrician and tested periodically (refer to instructions provided by GFCI manufacturer). Operating the pumps without first filling the bath to above the jets can cause permanent damage to your equipment.
- Page 6 2" PVC Drain 2" PVC drain connected via PVC glue to a 2" drain pipe Cable Operated 2'' PVC Coupling Lever Overflow PEX Tubing Overflow PEX Tubing 07/2022 www.ellasbubbles.com Page. 7...
- Page 7 Door and Frame Adjustments Your walk in bathtub has been tested and leveled properly before leaving our facility. Our Microbubble Pet Spa have been set on a perfectly level surface to ensure no leaks and proper door closing. It is up to your installer to test and make any adjustments necessary to ensure that all leveling legs support the tub frame and that the door is aligned correctly to prevent any leaks.
- Page 8 Service Access and Door Seal It is the responsibility of the installer or owner to provide access for service required, per code. Ella is not responsible for any costs related to obtaining access for repair. The owner shall assume responsibility for such costs, and if appropriate, must seek recovery from the installer. Do not insulate around the tub equipment.
- Page 9 Deck Mounted Thermostatic Control Valve What is a Thermostatic Control Valve: The purpose of a Thermostatic Control Valve (TCV) is to regulate the temperature of water before it reaches your sink or bathtub faucet. A TCV ensures constant temperature of water by blending hot water with cold water to prevent scalding or thermal shock.
- Page 10 Deck Mounted Thermostatic Control Valve Continued How Does A Thermostatic Control Valve Work: Before the use of tempered water in a bathtub, outlet temperature is adjusted by a thermostat in the mixing chamber of the valve. The thermostat automatically positions a seat assembly which controls the flow of hot and cold water supplied to the mixing chamber.
- Page 11 Infusion Microbubble Therapy Pet Spa Features & Benefits 2" Single Drain Two (2) Dog Chain Hooks Textured Floor Removable Platform For Larger Aluminum Door with Microbubble Hand Shower or Smaller Sized Dogs Stainless Steel Hinges with Ozone Sterilization Hand Shower with a Twenty (20) Adjustable Sidewall Interior LED Light (Turns on Retractable Stainless Steel...
- Page 12 Infusion Microbubble Therapy Pet Spa Operations Instructions 1. Entering the Microbubble Therapy Pet Spa: The Pet Spa features an Aluminum composite outward-swing door with stainless steel hinges for added security. The handle is located on the outside of the tub, and is designed for an easy entry/exit. A removable platform (41 1/4"L x 23"W) is included for small to medium sized dogs.
- Page 13 Infusion Microbubble Therapy Pet Spa Operation Instructions Image 1 Image 2 3. Hand Shower: To use the hand shower, turn the second lever to the right. (See Image 1) To use the hand shower AND the side wall jets, turn the diverter clockwise.
- Page 14 Ella's Bubbles offers cleaning service for the cartridges for a nominal fee: labor + shipping. The cartridge cleaning is done at Ella's Bubbles facility, or it can be done by the contractor hired by customer. The removal and cleaning of TCV should only be performed by a licensed and insured contractor or plumber following online instructions.
-
Page 15: Installer's Information
Warranty Activation Form 1 of 2 Installer's Information INSTALLER'S INFORMATION ___________________________________________________________________________________________________________ Name ___________________________________________________________________________________________________________ Address City State Zip _________________________________ _________________________________________________________________________ Telephone / Email _________________________________ _________________________________________________________________________ Date / Signature Upon completing the installation of an Ella Walk In Bath, the following Warranty Activation Form must be completed, signed by both the customer and installer, and returned to Ella’s Bubbles, LLC. -
Page 16: Owner's Information
Copy of sales receipt must be included with warranty activation forms. To activate manufacturer's warranty, please complete both pages and use one of the options below to submit. Via mail: Ella's Bubbles, LLC. Warranty Department 2101 S. Carpenter St., Chicago, IL 60608 Via fax: 1-312-666-3551 Via email: warranty@ellasbubbles.com...
