ELK22MP
MICROPROCESSOR DIGITAL
ELECTRONIC REGULATOR
INSTRUCTIONS FOR USE
Ver. 04 (EN) – 02/22
EL.CO. S.r.l.
Via Lago di Molveno, 20
36015 SCHIO (VI) ITALY
TEL.: +39 0445 661722
FAX: +39 0445 661792
internet : http://www.elco-italy.com
INTRODUCTION
This manual contains the information required
for proper installation and the instructions for
use and maintenance of the product. It is
therefore recommended to read it carefully and
to preserve it.
This publication is the exclusive property of
EL.CO.
prohibition of reproduction and disclosure, even partial, if not
expressly authorized.
EL.CO. S.R.L. reserves the right to make aesthetic and
functional changes at any time and without notice.
If a malfunction or failure of the device can create hazardous or
dangerous situations for people, animals or property, the
system must be equipped with additional security devices.
EL.CO. S.R.L. and its legal representatives do not assume any
responsibility for any damage to people, things or animals
deriving from tampering, improper use, incorrect use or
otherwise not complying with the device's features.
S.R.L. that places the
EL.CO. S.R.L. – ELK22MP - INSTRUCTIONS FOR USE - Ver.05 - 03/22 - PAG. 1

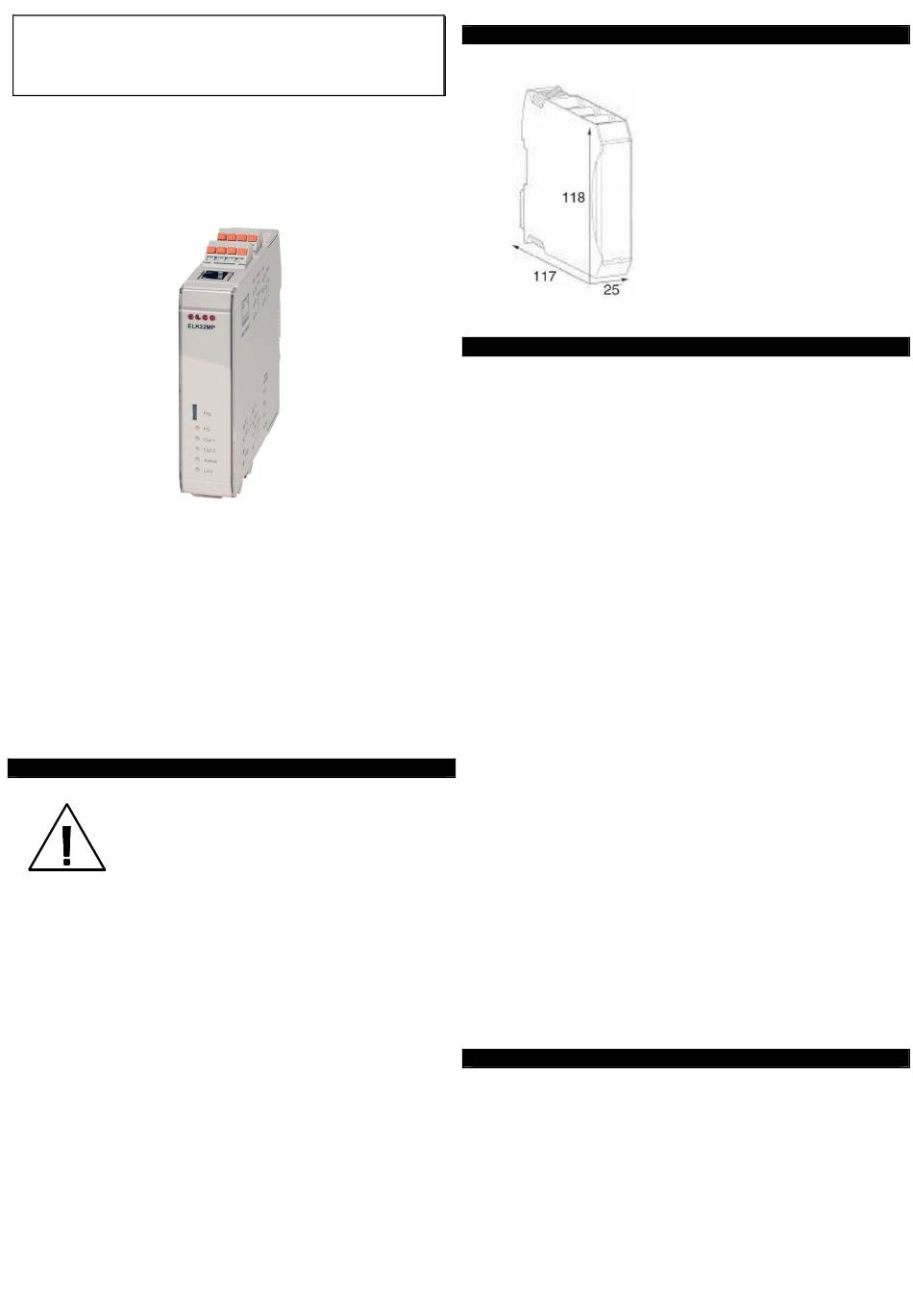

1 – DIMENSION (mm)
1.1 – ELK22MP MODULE FOR DIN RAIL ASSEMBLY
2 - DEVICE DESCRIPTION
2.1 - GENERAL DESCRIPTION
The ELK22MP series is made up of digital microprocessor
controllers, with ON / OFF, ON / OFF neutral zone, PID and with
AUTOTUNING function for PID regulation.
The instrument can have up to 3 outputs, for settingstatic relays
(SSR) or 2 relays. It is compatible with TC, J, K - RTD Pt 100
temperature probes; PTC KTY8 1-121; NTC 103AT-1 - For
normalized signals 4... 20mA, 0... 10V.
It is designed for mounting on a din rail.
The ELK22MP series consists of 4 models. 3 of these act as a
centralizer and one of them as a slave. The models of the
ELK22MP series are:
- ELK22MP: Control unit equipped with programmable inputs and
outputs with the ELK22DKP keyboard
- ELK22MPM: Centralizer equipped with programmable inputs and
outputs via ELK22DKP keyboard andRS485
- ELK22MPE: Centralizer equipped with programmable inputs and
outputs via RJ45 (Ethernet).
- ELK22MPS: Slave equipped with inputs and outputs, controlled
via bus by ELK22MP or ELK22MPM or ELK22MPE
The configuration of the instrument foresees the connection of 1
centraliser product (ELK22MP, ELK22MPM) connected to 15
ELK22MPS via bus located on the back of the product, sold as an
accessory (see Paragraph 10.6). Using the ELK22MPE centralizer it
is possible to connect 31 ELK22MPS devices, again via the bus
located on the back of the product, which can be sold as an
accessory (see Paragraph 10.6).
absolute Using an external device (for example ELK22DKP (see Paragraph
3.2), PLC, PC ...) it is possible to program the centralizer and the
slave devices connected to it via the bus on the back (see
Paragraph 4.6).
Throughout the manual we consider ELK22MP, ELK22MPM or
ELK22MPE devices as "centralizing devices" and ELK22MPS
devices as "slave devices". If there are any particular functions then
we will refer to the particular model.
3 - PROGRAMMING
3.1 – PROGRAMMABLE MODELS
The programming phase must take place when the product is
switched on. According to what has been described, the
configuration of a series of ELK22MP foresees the installation of a
centralizing device with n slave devices connected through the bus
(see Paragraph 4.6).
The various programming modes are:
- Via keypad
ELK22MPM)
SCRIZIONE STRUMENTO
ELK22DKP (only for ELK22MP and
