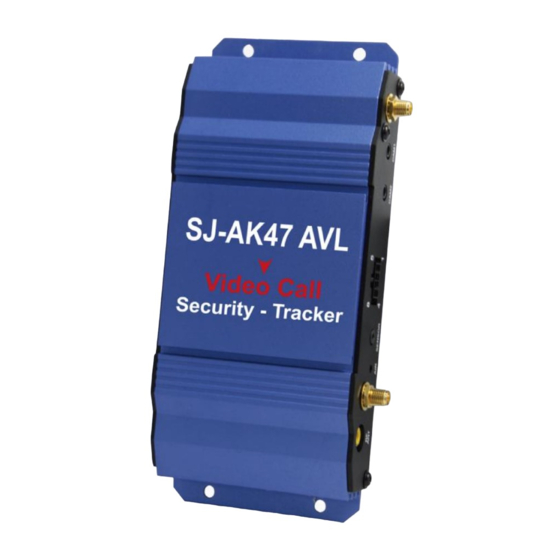

Summary of Contents for Sheng Jay Automation Technologies SJ-AK47 AVL
-
Page 2: Table Of Contents
Catalog Package ................................3 Hardware Profile ..............................4 Hardware Specification ............................5 Feature................................6 Installation Steps ..............................6 Hardware Installation ............................7 LED Status ................................. 8 RF Remote Controller ............................9 Install the Driver .............................. 10 Software Setting ............................... 12 Authorized Number ............................ -
Page 3: Package
Package 2 pieces external camera 8 M camera extension cable 4M camera extension cable Power / Input Output cable RF external antenna Ultrasonic sensor PC setting cable Remote Controller GSM external antenna Micro SD card Manual and PC setting software GPS external antenna Please check your package to ensue all items in included. -
Page 4: Hardware Profile
Hardware Profile Rear Side RF antenna connector 8 PIN I/O connector GPS antenna connector Camera 2 input Air Pressure sensor Camera 1 input Ultrasonic sensor connector GSM antenna connector Front Side External micro phone & PC setting cable connector Motion sensor sensitivity speaker Micro SD card slot LED 1. -
Page 5: Hardware Specification
Hardware Specification Housing Sensors L x W x H: 177mm X 76mm X 28mm Ultrasonic sensor (optional) Housing: Aluminum Air pressure sensor (optional) Power Motion sensor (optional) DC Voltage: input 9 ~ 24 VDC Memory Rechargeable Battery Micro SD card: Up to 4G Minimum Capacity : 1000mAh Interface/I/O Nominal Voltage : 7.6V... -
Page 6: Feature
Feature Video Call to view the real time video from inside of the vehicle GPS real-time position tracking via cell phone or server Car security system: Ultrasonic detection / Vibration detection /Air pressure detection Backup server support ... -
Page 7: Hardware Installation
Hardware Installation Please use 3G SIM card with support video call function 3G SIM Card Only No PIN code protection for SIM card allowed Insert the SIM card and Micro SD Use pointy tool to eject SIM card tray holder, and insert the SIM card to the AK47 Step 3. -
Page 8: Led Status
LED Status Red 4 Red 3 Alarm status Battery status Green 2 Yellow 1 L/K status GSM status display LED status display table Blink twice per seconds SIM Error Blink twice per two APN Error seconds Yellow(1) Blink GSM registering Data transfer Idle Light on... -
Page 9: Rf Remote Controller
RF Remote Controller Security on Security off SOS botton Undefined Learn the Remote controller Press the LK button on the AK47 for 5 seconds, than LED 2 on the device will be light on Press the any key of the remote controller Device buzz four times , when it has learnt the controller Up to 4 remote controllers supported Remote Controller buzz table... -
Page 10: Install The Driver
Install the Driver Connect the PC setting cable to AK47 with your PC Check your Device Manager Select the AK47 and right click to select the Update Driver Software Select the Browse my computer for driver software... - Page 11 Select the AK473G folder in the CD Select Install this driver software anyway Wait for installation finished Check your Device Manager. Make sure you can find the SJA-AK47...
-
Page 12: Software Setting
Software Setting Please install the driver before you configure the AK47 Run the “AK473G PC Setting.exe” Configure setting and activate the functions wanted. Please refer below AK47 PC Setting interface... -
Page 13: Authorized Number
Authorized Number Security alarm、SOS alarm、Low battery alert SMS and SD Card warning SMS will be sent to the authorized number Only authorized number can change the AK47 setting via SMS. The unauthorized number will not get any reply from AK47 SOS button Press SOS button on the remote controller to make vide call to authorized number. -
Page 14: Sos Map Message
How to Set Run 3GAK47.exe Click “Connect” Key in mobile number in authorized number No.2 /No.3/No.4 Click “Save” Click “Disconnect” Press the SOS button on the remote controller ※Make sure your remote controller has been learnt by the device . Please refer the “RF Remote Controller selection”... -
Page 15: Video Call
Video Call Use 3G mobile to call the AK47 1. Key in the number of the AK47 2. Select the Video call on your mobile phone 3. Dial the number to AK47 to see the video ※Check your mobile „s manual to learn how to make a video call GPS real-time position tracking via mobile Send SMS to the AK47 to get the location map. -
Page 16: Gps Real-Time Position Tracking Via Server
GPS real-time position tracking via server AK47 sends data to the remote server by GPRS continuously. User can see the status of AK47 on the server How to set GPRS Enable / Disable the GRPS transmission. Select on to enable the GRPS Device ID Name an ID for the device. -
Page 17: Acc Mode
Server IP_1 Set an IP address and port for your server. If Server IP_1 link is failed or input column is empty, device auto-connect to Server IP_2 Device server connection priority DNS > IP 1 >IP 2 Server IP_2 Set the backup IP address and port for your server. The server IP_2 will assign an IP address to the device, when it received a connect request. -
Page 18: Security Alarm
Security Alarm Press the “Security on key”on the remote controller to activate the security system If one of security sensor has been triggered, the AK47 will call a video call to authorized number to notice the car owner. Authorized number pick the phone call and press key “5” to confirm the call to see the video If first authorized number does not pick up the phone, AK47 call next authorized number. -
Page 19: Security Alarm Sensitivity
Security Alarm sensitivity You can change the sensitivity of the sensor by adjusting the VR Right turn is sensitivity high Left turn is sensitivity low Time Zone Set your time zone in your area Geo-Fence GEO-Fence is a virtual perimeter for a real-world geographic area. You can set 5 GEO-Fences for the AK47. - Page 20 How to set Click Connect Enable Geo-Fence ON: Activated the GEO-Fence function OFF: Disable the GEO-Fence function Select the Group 1- 5 Choose your location on the Map Map Zoom in Double click mouse left key or Mouse scroll wheel forward Zoom out Double click mouse right key or Mouse scroll wheel backward Mark your location...
-
Page 21: Language
Define the radius of marked position Define range from 0 to255 (per 100 M). Put 3 digital numbers to define the radius of the GEO-Fence. EX: 100 = 10 Km Alarm Type Disable: Disable this group Enter: when enter this area alarm Leave: when leave this area alarm 7. -
Page 22: Input / Output The Setting File
Input / Output the setting file Output Click the Output to export the setting file Name your setting file. *.sja Input Click the Input the load the setting file. Select the setting file *.sja Click open Cellular Positioning If the AK47 move to indoor or the GPS signal is too weak, AK47 use GSM base station to position and send based station information to the authorized number or report to the server. -
Page 23: Low-Voltage Alert
Low-voltage alert The Low battery SMS will be sent to first Authorized number AK47 detect the voltage of the battery to make sure device work well. When the voltage of the battery is low, AK47 sends the SMS immediately to alert the authorized user. -
Page 24: Mobile Phone Remote Control
Mobile phone Remote control When authorized number get the video from AK47, authorized user can view the real time video, and control the AK47 remotely. The authorized user just dials the number key on the mobile phone to remote control the AK47 ※Authorized user must press key “5”... -
Page 25: I/O Definition
I/O Definition Definitions Input Voltage Input 2 (none) 24 V Input 1 ACC 24 V Ground Battery input +12V 24 V Output 1 Output 2. Analog input 1 24 V Analog input 2 24 V... -
Page 26: Remote Relay Control Setup
Remote Relay Control Setup You can control the relay via mobile phone which means you can control the device that you wanted Just connect I/O 5 or 6 to your relay Typical Relay for the Car... -
Page 27: Photo Shot And Video Recording
Photo shot and Video Recording Photo shot When SOS or Alarm activated, the external cameras will totally take three photos. Two photo for first camera, one photo for second camera You can find your photo in Picture folder in the micro SD card Video Recording In real time monitor mode , press the mobile phone number “4”to record the video The format of video is *.MP4. -
Page 28: Sms Configuration
SMS Configuration Only authorized number can change the AK47 setting via SMS. The unauthorized number will not get any reply from AK47 Authorize number Security alarm、SOS alarm、Low battery alert SMS and SD Card warning SMS will be sent to authorized number SMS: AUTHOR:number Use “/”...
