Vernier EHR-BTA Quick Start Manual

Exercise heart rate monitor

Exercise Heart

Rate Monitor

(Order Code EHR-BTA or

EHR-DIN)

The Exercise Heart Rate Monitor records a person's heart beat. Similar to an

electrocardiograph (EKG), this sensor detects the electrical signal generated for each

heart beat. This signal is measured at the surface of the skin by electrodes embedded

in the chest belt of the Exercise Heart Rate Monitor. Graphing this signal offers a

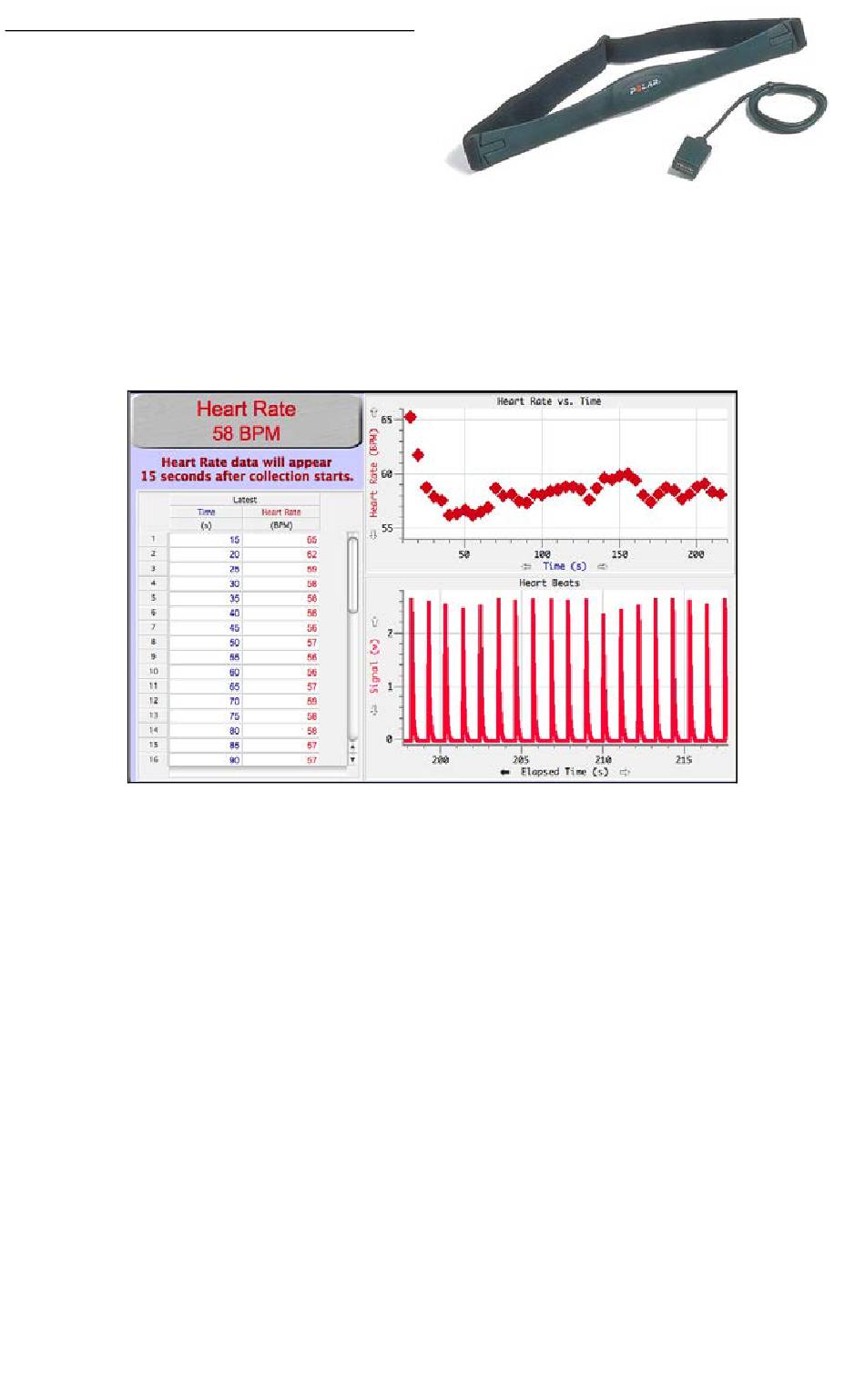

method to determine heart rate. A sample graph is shown below

Collecting Data with the Exercise Heart Rate Monitor

This sensor can be used with the following interfaces to collect data.

• Vernier LabQuest

computer

• Vernier LabPro

• Vernier Go!

Link

• Vernier EasyLink

• Vernier SensorDAQ

• CBL 2™

• TI-Nspire™ Lab Cradle

Graph from Logger Pro program

2 or original LabQuest

with a computer or TI graphing calculator

as a standalone device or with a

Table of Contents

Do you have a question about the EHR-BTA and is the answer not in the manual?

Page 1 Exercise Heart Rate Monitor (Order Code EHR-BTA or EHR-DIN) The Exercise Heart Rate Monitor records a person’s heart beat. Similar to an electrocardiograph (EKG), this sensor detects the electrical signal generated for each heart beat. This signal is measured at the surface of the skin by electrodes embedded in the chest belt of the Exercise Heart Rate Monitor.
Page 2 TI-Nspire can be used with the EasyLink or TI-Nspire Lab Cradle. • EasyData App This calculator application for the TI-83 Plus and TI-84 Plus can be used with CBL 2, LabPro, and Vernier EasyLink. We recommend version 2.0 or newer, which can be downloaded from the Vernier web site, www.vernier.com/easy/easydata.html, and then transferred to the calculator.
Page 3 The plug-in receiver wirelessly receives the transmission, and passes a 3-volt pulse for each detected heart beat to the Vernier interface. The reception range of the plug-in receiver is 80–100 cm or about 3 feet.
Page 4 • www.vernier.com Rev. 6/18/2012 Logger Pro, Logger Lite, Vernier LabQuest 2, Vernier LabQuest, Vernier LabQuest Mini, Vernier LabPro, Go! Link, Vernier EasyLink and other marks shown are our trademarks or registered trademarks in the United States. TI-Nspire, CBL 2 and CBL, TI-GRAPH LINK, and TI Connect are trademarks of Texas Instruments.
