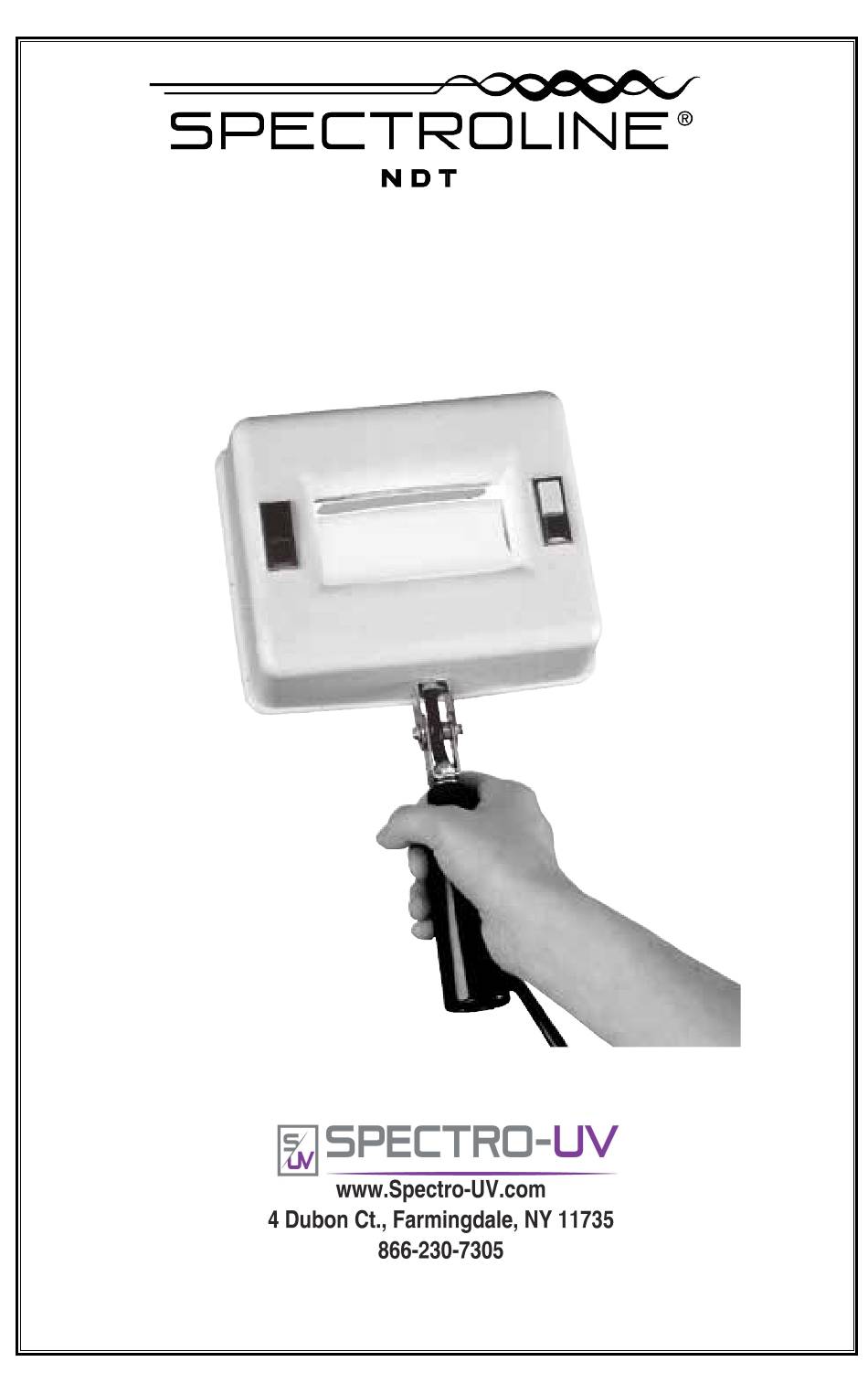

- Page 1 Q-Series Ultraviolet Lamps OPERATOR’S MANUAL AM05008-4 PRINTED IN U.S.A. MARCH 2016...
-
Page 2: Unpacking And Inspection
Q-Series Ultraviolet Lamps DANGER Ultraviolet radiation emitted from this product. Avoid exposure. ALWAYS WEAR PROTECTIVE CLOTHING. EXPOSURE MAY CAUSE PREMATURE AGING OF THE SKIN AND CANCER. ALWAYS WEAR PROTECTIVE EYEWEAR; FAILURE TO DO SO MAY RESULT IN SEVERE BURNS OR LONG TERM INJURY TO EYE. Never look directly into the lamp. - Page 3 4. The tubes should become energized and emit a steady glow of light. The light may initially flicker, especially if the lamp is cold, but should stabilize after a few seconds. 5. To turn the lamp off, depress the red POWER OFF switch(es). INSTALLING ACCESSORIES 1.
-
Page 4: Environmental Specifications
3. Grasp the tube by the metal bases located at each end. Applying even pressure, gently rotate the tube a quarter turn until it loosens. The tube may now be easily removed from its sockets. 4. Install the new tube by reversing the above procedure. 5. -
Page 5: Electrical Specifications
ELECTRICAL SPECIFICATIONS MODEL WAVELENGTH EQUIPPED WITH AMPS TUBES Q-12 UV-A Q-12NF UV-A/UV-C SHORT WAVE FILTER ASSEMBLY Q-12SNF UV-A/UV-C Q-12NF WITH PEDESTAL STAND/ SW Filter Q-12S UV-A Q-12 WITH PEDESTAL STAND Q-22 UV-A/WHITE Q-22B UV-A Q-22SB UV-A Q-22 WITH PEDESTAL STAND Q-22FA (B-4) UV-A/WHITE FLEXIBLE ARM/... -
Page 6: Replacement Parts And Accessories
REPLACEMENT PARTS & ACCESSORIES Description Part No. Tube - Long Wave UV-A BLE-220B Tube - White Light BLE-95D Tube - Short Wave UV-C BLE-2537S LONGLIFE Filter Assembly - Short Wave UV-C 370B Pedestal Stand SQ-130 Mounting Brackets—for Flexible Arm Models: Bench Mount Table Mount Wall Mount... - Page 7 On/Off Power Switches Reflector Tubes Lamp Housing Handle Sockets Power Cord Filter Assembly Magnifier Lens ACCESSORIES Flexible Arm Stand Receptacle Base Mounting Bracket SQ-130 Pedestal Stand (Bench)
