Summary of Contents for Harman Kardon ABH 4

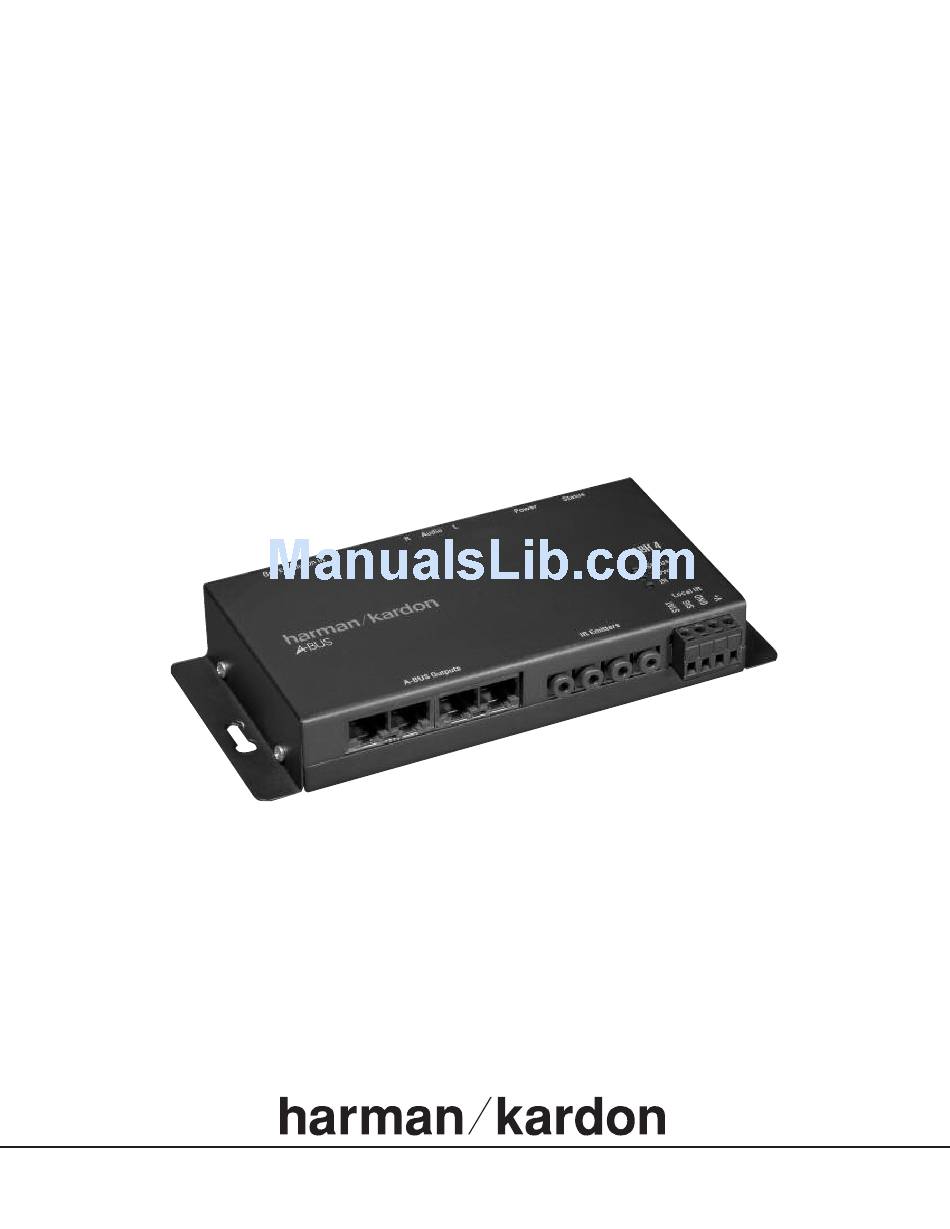

- Page 1 ABH 4 4-Room A-BUS ® Expansion Hub ® ® Power for the Digital Revolution ® Power for the Digital Revolution ®...
- Page 2 Installation Planning When installed, the ABH 4 may be placed flat on a shelf or mounted to a wire back-board using standard wood screws and the keyhole notches on the outer edge of the ABH 4. The unit’s power supply must be placed on a shelf and should not be attached to a back-board.
- Page 3 ¡ (number in a circle) Indicates a connection point on the side edges of the ABH 4. å (letter in a circle) Indicates an LED indicator on the top face of the ABH 4. Top-Edge Connections ¡ Status Input: When the ABH 4 is used in the stand-alone mode with a...
-
Page 4: Installation And Connection
• To mount the ABH 4 to a wall, first place the unit against the surface to which it will be mounted, and make certain that there is sufficient clearance at all sides for any cables that will be attached and that they are able to reach their destination. -
Page 5: Power Supply
When using an A-BUS/ product, READY use the supplied RJ-45 jumper cable to connect the A-BUS jack on the receiver to the “Expansion In” jack on the ABH 4. ABH 4 power supply Optional AB 1 A-BUS modules connected by Cat. 5 cabling... - Page 6 (not included) connecting the Audio Inputs £ on the ABH 4 to the audio outputs of the source device. The source may be the tape outputs of a stereo preamplifier or receiver, the tape outputs or multiroom outputs of an audio/video receiver or surround processor, or it may be a direct connection to a single source such as a CD player or tuner.
- Page 7 When using the ABH 4 with non-A-BUS/ receivers, READY connect either the Multiroom outputs (if available) or the Tape outputs to the Audio Input ¢ jacks on the ABH 4. Optional 12V power supply ABH 4 power supply Optional AB 1...
-
Page 8: Operation
No further controls are needed. Follow the instructions included with the A-BUS modules for operation information. When the ABH 4 is used in the stand-alone mode with a source that is not A-BUS/ , the method of operation varies depending on the specifics of the... - Page 9 © 2005 Harman International Industries, Incorporated. All rights reserved. Printed 3/05 Part No. ABO 42hl Harman Kardon and Power for the Digital Revolution are registered trademarks of Harman International Industries, Incorporated. A-BUS and A-BUS/ are registered trademarks of LeisureTech Electronics Pty Ltd. Australia.
