Smart view INTELLIGENT VAX-8404F User Manual

VIDEO/AUDIO
MATRIX
(VAX-8404F)
4 In 4 Out
USER MANUAL
VAX-8404F
Package Contents-
1 Smart View VAX-8404F video/audio matrix
1 user manual
1 power adapter DC 12V 1.25A
2 rack rails, 8 screws
Any thing missed, please contact with your vendor.
Introduction
Through the video/audio matrix VAX-8404F, you can display /
play different images / audio signals to 4 screens / speakers (or
earphones) through 4 PC. And you can also control the source of
image / audio by selecting PC signal source 1 ~ 4 or turning off
source input.
Video/Audio matrix is ideal for:
Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
Intelligent functionality.
With 350 MHz pixel frequency.
Support VGA, SVGA, UXGA, QXGA resolutions.
Support Multi-Sync video type include RGBHV, RGsB, RGBS.
Support synchronous Include positive, negative; TTL or 1Vpp
level.
Supports the DDC, DDC2, DDC2B.
Four sets of 7-Segment LED can indicate the input setting status
of input port quickly.
The output is compatible with standard VGA card.
Extends the video signal up to 65 meter (213 feet).
Audio Frequency Response 20Hz~20KHz.
The switches on panel can select PC signal source 1 ~ 4 as OUT
1 ~ 4 or turning off any signal I/O port / all I/O ports.
Can be cascaded.
Specifications
Function
Video Input Connector
V1.0 Video Output Connector
Audio Input Connector
Audio Output Connector
Select Switch
7-Segment LED
Max. Resolution
Pixel Frequency
Cable Distance
(Device to Monitor)
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
Technical Specifications
Input/Output Signal
Pin #
Installation
VAX-8404F
1. Turn off the power switches of PC, screens, and speakers.
4x HD-15 Female
2. Use HD-15 image / 3.5φ earphone extension cable to
4x HD-15 Female
4x 3.5φ Stereo Jack
4x 3.5φ Stereo Jack
3. Use HD-15 image / 3.5φ earphone extension cable to
10
4
1920x1440 @ 85 Hz 4. Connect video/audio matrix to power supply.
5. Turn on the power switches of PC, screens, and speakers.
350 MHz
6. Control switches, which includes "Out1", "Out2", "Out3",
65m (213 feet) Max.
DC 12V 1.25A
Metal
1065 g
269x108x42 mm
-1-
Signal Pin #
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 NC
4 NC 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground

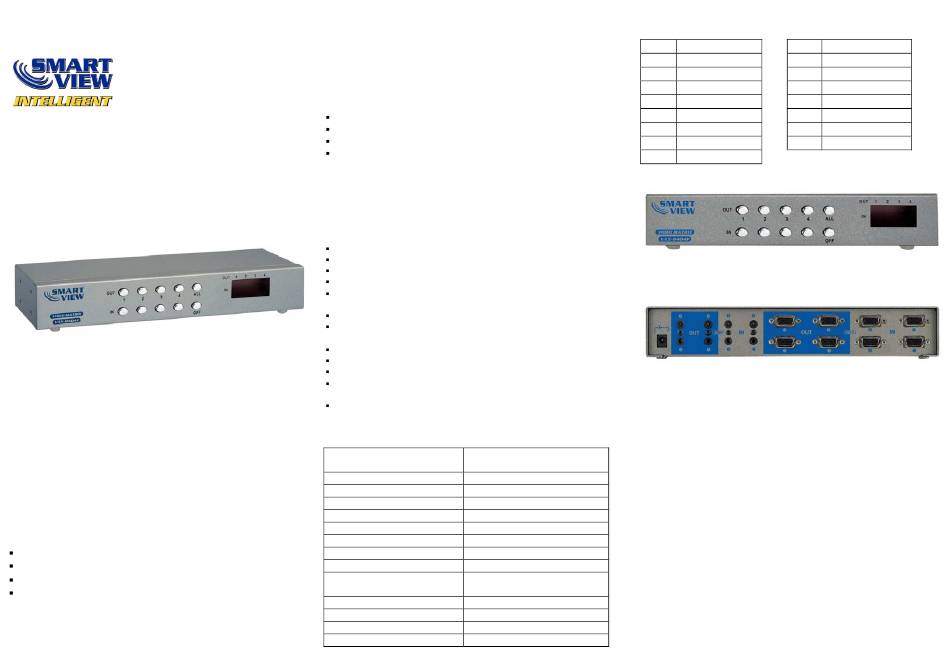

FRONT VIEW
1. Select Switch
2.
7-Segment LED
REAR VIEW
1. Input Power Jack
2. " Out" Port
Audio
3. " In" Port
Audio
4. "Video Out" Port
5. "Video In" Port
connect VGA interface / audio card in PC and the "Video
In" & "Audio In" jack of video/audio matrix.
connect screen, speaker, or earphone and the "Video Out" &
"Audio Out" jack of video/audio matrix.
"Out4", "All", "In1", "In2", "In3", "In4", and "OFF", on panel can
get image / audio signals or turn off input signal through
output jack.
-2-
Signal
