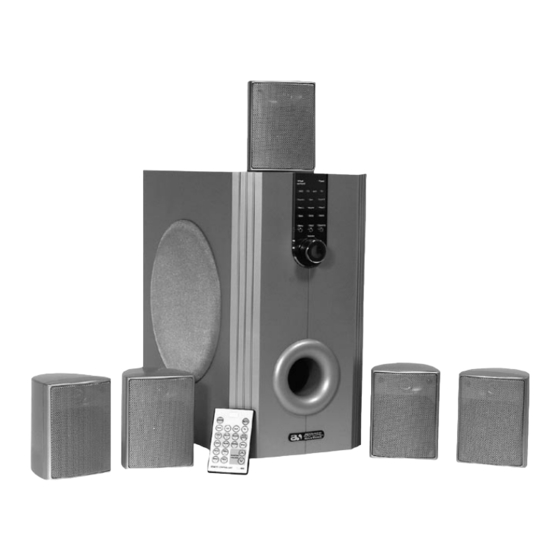

Summary of Contents for ACOUSTIC SOLUTIONS DS733

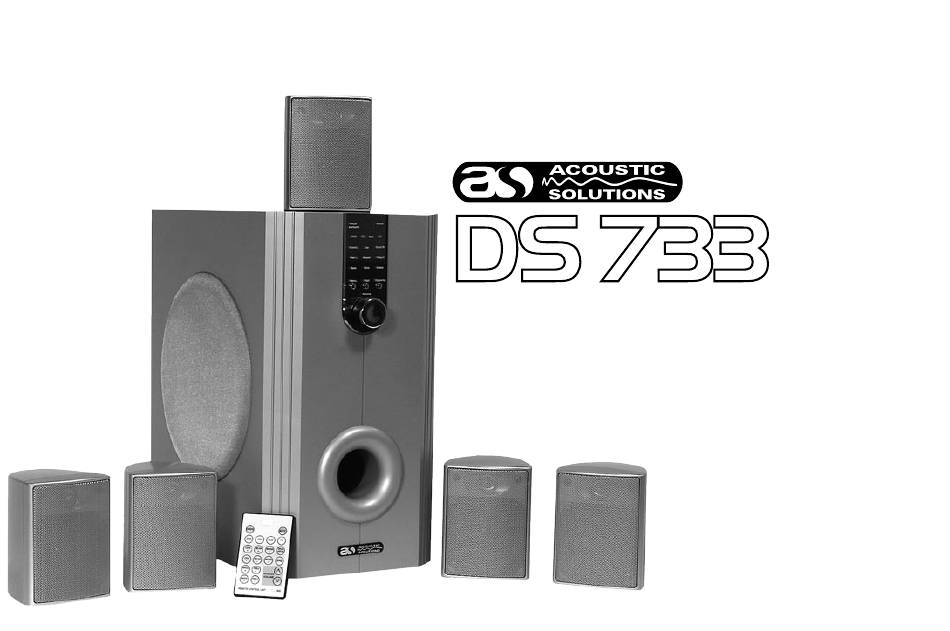

- Page 1 DS 733 INSTRUCTION MANUAL BEFORE ATTEMPTING TO CONNECT, OPERATE OR ADJUST THIS PRODUCT, PLEASE READ THIS MANUAL COMPLETELY REV: 1/090/1.1...
- Page 2 DS 733 INSTRUCTION MANUAL May we take this opportunity to thank you for purchasing this DS 733 Home Theatre System. Please note the listed precautions and take time to study the operating instructions, this will ensure that you gain maximum enjoyment from the DS 733. Manufactured under license from Dolby Laboratories.
- Page 3 SAFETY INSTRUCTIONS The wires in the mains lead are coloured in accordance with the following CAUTION: To reduce the risk of electric shock, do not remove any cover. code: No user-serviceable parts inside. Refer any servicing to qualified service BLUE NEUTRAL personnel.
- Page 4 MAIN FEATURES • Built-in 5.1 Dolby Digital AC-3 decoder for direct connection with any DVD featuring digital audio output to give full cinema surround sound experience. • Built-in six channel power amplifier. • Full function remote control, including channel levels and tone controls.
- Page 5 REMOTE CONTROL FEATURES Insert the battery observing the correct (+) and (-) polarity. NOTE: If the remote control unit only works when operated near to the DS 733, replace the battery. Use a CR 2025 3V lithium battery only. Note: Please check the battery in the remote control to ensure that the protective film is removed before use.
- Page 6 SYSTEM CONNECTION It is recommended that the mains power is OFF until all connections have been made and checked. A. Connection to a stereo sound source (CD player, TV, Tuner, etc). Use the RCA phono lead to connect to the RIGHT and LEFT channels of the stereo sound system to the Auxiliary input connectors (17).
- Page 7 LOUDSPEAKER CONNECTIONS Ensure the correct polarity (+) and (-) of all speaker leads. Check to make sure there are no wires touching on the speaker terminals, and that all wires are firmly clamped into the terminals. The rear of the DS 733 and rear of the speakers Please note: When inserting have corresponding colour...
- Page 8 5. Adjusting the volume/tone levels using the front panel: • Select OPTICAL (5) on the remote control unit to listen to the digital • The main volume of the DS733 can be adjusted by using the rotary audio source connected to the OPTICAL input connector on the rear level control knob (7) on the front panel.
- Page 9 • Check that the volume level is not set too high. email: enquiries@acousticsolutions.co.uk Remote control not operating correctly: Through the process of continuous improvement, Acoustic Solutions • Check the battery, if the remote controller only works when close Limited reserves the right to change or alter specifications without prior to the DS 733, the battery is getting low - replace with suitable notice.
