Summary of Contents for havic HV-BT021

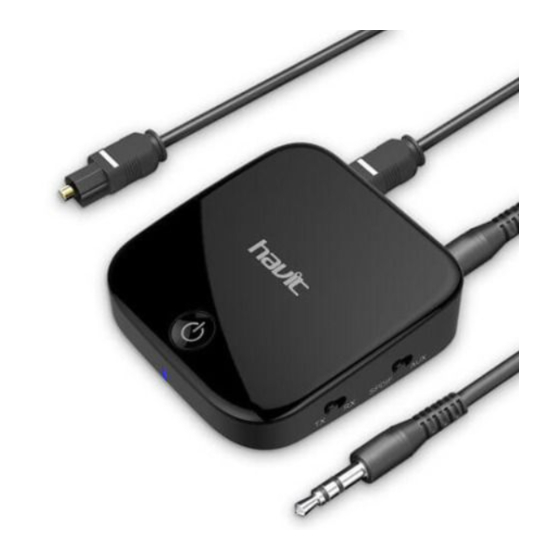

- Page 1 User’s manual Receiver and transmitter 2 in 1 fiber optic adapter HV-BT021...
- Page 2 Thank you for using HV-BT021, receiver and transmitter 2 in 1 fiber optic Bluetooth adapter. To make it easier for you to experience the product, here we attached a detailed product manual. Please read the instructions carefully before using the product.

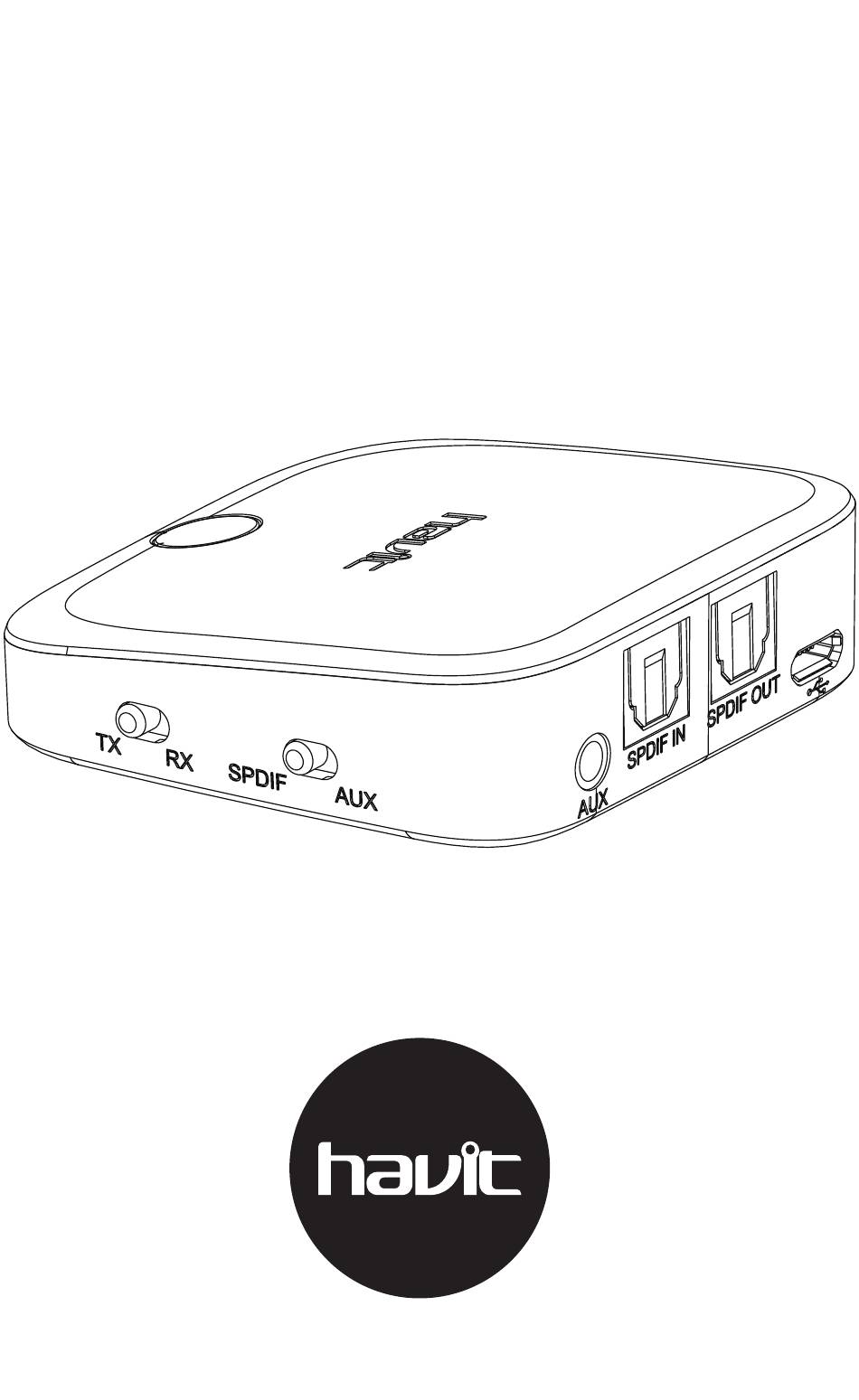

- Page 3 mobile phone to play music while you need to pause or stop the music from the other mobile phone. 6. The adapter supports low latency, but may still be delayed by about 40 ms. Product structure: D E F A, Multi-function button(MFB), Power switch; Play/Pause(RX) B, mode selection switch (TX: transmitter;...
- Page 4 Transmitter working time(SPDIF) 12Hours About 2Hours Charging time Bluetooth Profile RX:A2DP AVRCP TX:A2DP support(one transmitter connect two Bluetooth Support dual stream speaker or Headphone(use TX mode （ ） one CEDEC at the same time) Support connecting with Support dual connection two mobile phone in receiver mode Support for Bluetooth headset,...
- Page 5 Working temperature -10—55℃ About 38.6g Net weight Dimension 60*60*18.4mm SPDIF OR AUX Select SPDIF or AUX, according to the audio jack of your devices before turning on the adapter. Power ON: Long press the power switch for 3s to turn it on, with blue LED flashing for twice.
- Page 6 Click manually on B and it will automatically connect to B. After that, you can reactivate Bluetooth function of A and click on “HV-BT021” in the paired record list on A, as the result, it will simultaneously connected with A and B.
- Page 7 Power off: To turn the product, long press the MFB for 3 seconds as the Red LED will flash twice (It will only flash once if you release it mmediately). Do not restart the adapter within 3 seconds after turning it off as the voltage of the chipset may not fully defunct.
- Page 8 Red and blue LED Pairing Blue LED flashes alternately flash. Blue LED flashes Blue LED flashes No connection every one second twice every 3s. Connected Blue LED lights up steadily. Red LED flashes. Low battery Charging Red LED lights up. Fully charged (Red) LED is off.
- Page 9 Q5.I can't connect it to my phone. A: Please make sure that your phone supports Bluetooth function and can be detected. If so, please check the following steps: 1) (First time pairing) Long press on the MFB until the Blue LED light flashing quickly.
- Page 10 WWW.PROHAVIT.COM MADE IN CHINA...
