Suntop BT-10 Series Using Instruction

Using instruction, Caution 使用須知、注意事項 -1
Trigger, LED Indicator 按鍵、LED顯示器指引, Scan Setting 掃描設定-2
Bluetooth Barcode Scanner Setting Manual
藍牙條碼掃描器設定書

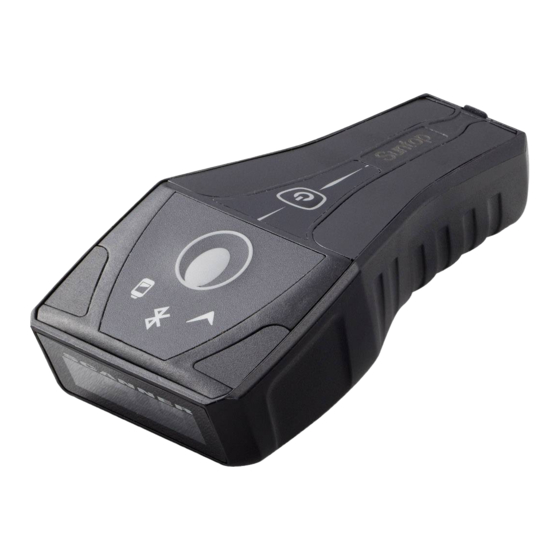

BT-10 series barcode scanner
The BT-10 series handheld barcode scanner from Suntop is a portable device that offers high
performance scanning at a moderate price point. From backroom inventory management to
logistics and package tracking to point-of-sale scanning, the BT-10L provides fast reliable
scanning, increasing productivity and efficiency while reducing your total cost
With aggressive scanning capabilities and the ability to read a wide range of barcode formats, the
BT-10L accurately captures data fast, helping employees work quickly and efficiently. Users will
be up and running fast, because the BT-10L is easy to deploy, thanks to its advanced blue tooth
connectivity technology and user-friendly design. It provides rapid data transmission capacity.
Also, special features such as the ability to pair with smart devices help eliminate the possibility of
data loss while transmitting.
認識 BT-10 系列條碼掃描器
BT-10系列條碼掃描器為一款掌上型機器，耗電低、待機時間長，並且攜帶非常方便，
最重要的是具有防塵、防震以及防水IP工業等級，便利於各式行動的運用。
BT-10系列條碼讀取速度技術更為精準、攜帶方便可提升龐大的生產效能並且跟智慧型
手機和含有藍牙HID相互搭配，優雅的外型、工業的防護等級大大降低各公司採購成本
，適合擺在口袋、掛在身上，保持最佳連結狀態、超長續電能耐讓您不漏接任何資料
。
Bluetooth Parameters back to Default藍牙參數回歸預設值
START
SET
3 - SetUp PIN code PIN碼、Barcode Reading Parameters back to default
條碼識讀參數恢復預設值
4 - BT Scanner configuration procedures 配對流程指引
5 - HID Interface Set/Pairing Set/ HID Character Transmit Mode
HID介面設定、配對設定、字元傳送速度設定
6 - SPP Interface Set/ SPP介面設定
7 - Pairing Set/ Power set after disconnect/ 配對設定、藍牙斷線後關機設定
← INDEX 目次
Using instruction, Caution 使用須知、注意事項 -1
INDEX 目次 →
Instruction
The scanner read " START", it will respond with five beeps. Reads each setting barcode, the
scanner will respond each 1 long beep and finally reads "END", it also have 1 long beep.
If the setting is wrong or reading codes before the scanner ready, The scanner will have 2 short
beeps as responds.
Hold Power trigger 3 seconds, the scanner will turn ON/OFF, the yellow LED on and off quickly
and after buzzer have One Long beep with Yellow LED flashing, it means the scanner has already
turn on could pair with device anytime, vise versa, Buzzer beeps One long beep and off
immediately, it means the scanner turning off.
Hold Scan and Power trigger 3 seconds, the scanner could disconnect with bluetooth device.
Hold both Scan and Power trigger 1/2 seconds, the scanner could disconnect with bluetooth device
temporary, the Blue LED off and Yellow flashing, user can use this moment to set, around 5
seconds, the scanner will pair back with bluetooth device again, Blue LED will on.
讀取「開始設定」這個條碼會有5聲短嗶聲，之後設定條碼都是長嗶1聲，最後讀取「設
定結束」會有長嗶1聲。
若是設定錯誤、或是機器尚未準備好就讀取設定碼，讀取到條碼時會出現短嗶2聲。
電源鍵持續按3秒後，機器即開啟 / 關閉。您會看見前方黃燈閃一下，隨即跟著機器會長
嗶1聲並且電池圖案的LED燈會閃動1下，之後前方藍牙標誌會持續閃黃燈代表開機完成
，可以隨時配對。關閉時，機器會長嗶1聲並且電池圖案的LED燈會閃動1下隨即關閉。
掃描鍵和電源鍵同時持續按壓3秒鐘，即可與藍牙裝置斷開。
讀碼和開關鍵同時按1/2秒，可以將掃描器和藍牙裝置暫時斷開藍牙指示燈會慢閃黃燈
，這時您可以用來做設定，大約5秒左右，又會恢復連結變成長亮藍燈。
Caution
◎ Do not dismantle the machine, improper use, damage, or allow foreign objects to contact or placed
next to the machine caused damage.
◎ Do not contact the machines and related accessories or near a fire source.
◎ The machine can use damp cloth or alcohol wipe to clean.
◎ If machine failures to be found, please note the fault information and using environment to inform
maintenance personnel in order to achieve the fastest speed to repair.
注意事項
◎請勿擅自拆裝機器，不當使用毀損、或將異物接觸或是放置到機器造成損壞。
◎請勿將機器、以及相關配件產品接觸或是靠近火源。
◎本機器可以使用乾淨的濕布，或是酒精來消毒擦拭。
◎若發現機器故障，請詳細記下故障的訊息以及環境，告知維修人員以便於達到最快的維
修速度。
