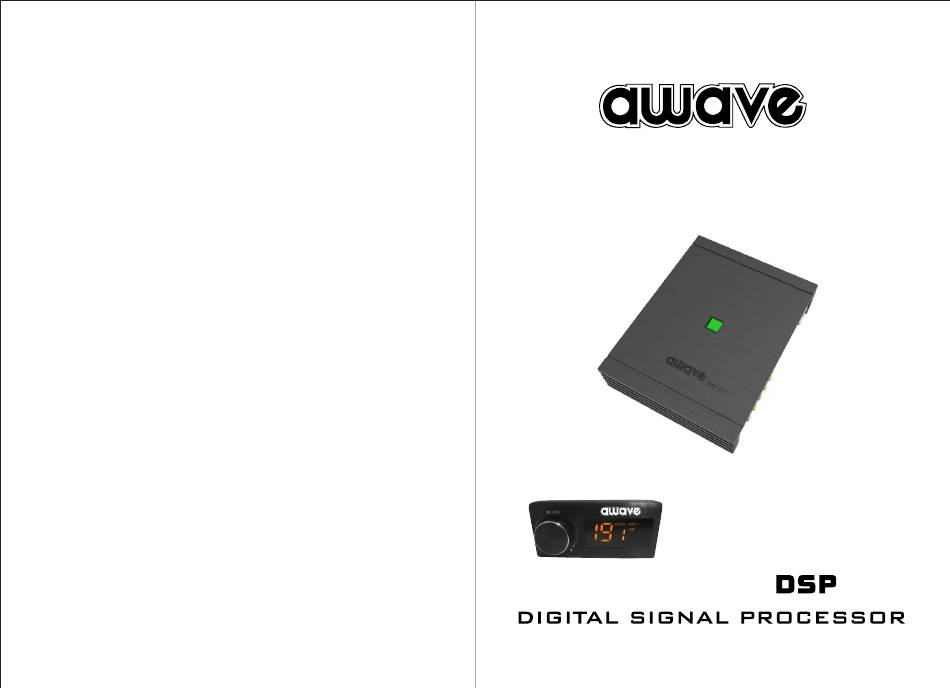

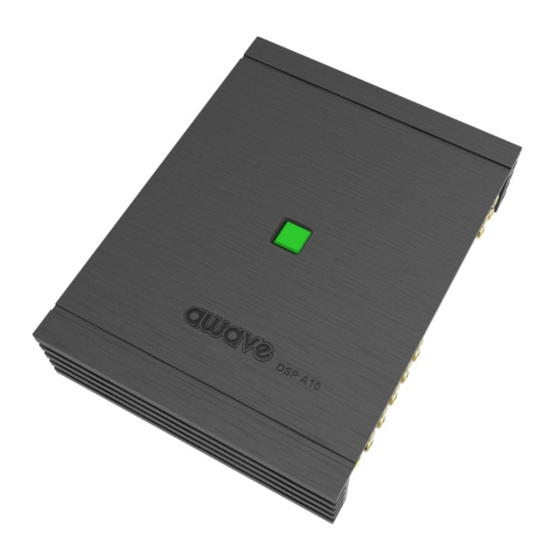

  • Page 1 Ower s Manual DSP Car Power Amplifiers D04-MEN124-00...

  • Page 2: Table Of Contents

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 1.PRODUCT DESCRIPTION-PRECAUTIONARY NOTES INDEX The DSP is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters. 1.

  • Page 3: Dsp And Drc Installation

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 4. INPUT SIGNALS 3.DSP AND DRC INSTALLATION External dimensions OPTICAL INPUTS LINE OUTPUTS LINE INPUTS LINE OUTPUT REMOTE LINE INPUTS CONTROL CONTROL BIueTooth HIGH LEVEL INPUT OPTICAL COAX IN INPUT CH10 1 INPUT 1 INPUT 2 INPUT 2 INPUT 3 INPUT...

  • Page 4: Gui Operation Instruction

    To bring sound effect on your beloved car to a higher level.If the password has been set, You need to enter the password. 6.2 FILE MAIN MENU 1. Connect(connect to the DSP) DSP A10 [ 5 ] [ 6 ]...
  • Page 5 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 2. Language(choose you need language) 3. CROSSOVER X-TPE. To choose different crossover type, for example select CH selection on 3RD spot .that would locate CH you want to choose for crossover configuration . 4. CROSSOVER FREQUENCY. Set frequency of LP/HP individually .

  • Page 6: Remote Introduction

    PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 11. READ. 7. LP/SLOPE. 8. HP/SLOPE. To Read From Device(POS1-POS8). 1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct 1.6dB/oct 12dB/oct 18dB/oct 24dB/oct 30dB/oct 36dB/oct. 42dB/oct 48dB/oct are available. 36dB/oct.42dB/oct 48dB/oct are available. 12. X-OVER AND EQ CHARTS. 1.Red lines and slopes will change accordingly when HP/LP of crossover and EQ are modified.

  • Page 7: Technical Features

    PRODUCT BRIEF INTRODUCTION 8.TECHNICAL FEATURES POWER SUPPLY Voltange 9-16VDC Idling current 1.5A SIGNAL STAGE Bandwith @-3 dB 10-20kHz S/N ratio Full Power A- >100 dB Hight level input range 3V-15V THD+N VS Power 1% (СH1 CH2 CH3 CH4 СH5 CH6 CH7 CH8 ) 8X50W ATTS INPUT STAGE High Level(Speaker) 1.2.3.4.5.6...
