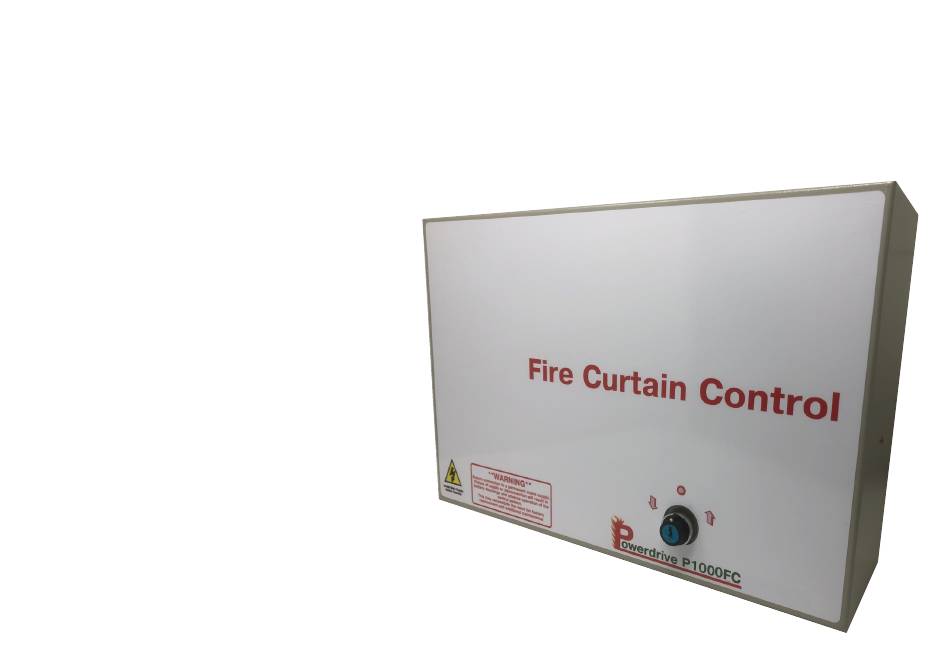

Battery Backup DC Control System
P1000FC
For Use with Gravity
Failsafe Fire Curtains
Quick Start Instructions
Iss.7 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the P1000FC and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerDrive P1000FC

  • Page 1 Battery Backup DC Control System P1000FC For Use with Gravity Failsafe Fire Curtains Quick Start Instructions Iss.7 2021...
  • Page 2 Important Information on the PMaC P1000 In the event of a site having no permanent mains supply it is still possible to set up and commission the curtain. The P1000 has a built in battery pack which is capable of operating the motor without mains being available.
  • Page 3 L E N RELAY 3 ACTIVE RELAY 4 ACTIVE RELAY 5 ACTIVE FAULT CONDITION POWER BATTERY TEST FAIL AUTOTEST FAIL OPENING OPEN CLOSING CLOSE AUTOTEST BATTERY TEST ALARM 1 ACTIVE Isolate Main Supply ALARM 2 ACTIVE owerdrive P1000FC Before Opening...
  • Page 4 Basic Installation of P1000 All connections to the P1000 should be undertaken with the mains supply turned off and the battery fuse removed. Fire Receiver Transmitter Access Failure to remove power may result in damage to the Prg UP Alarm equipment.
  • Page 5 P1000 Connections 10. Emergency retract switch (user escape) 11. Key switch connection from lid. To fit external key switch remove existing switch connections Fire Receiver Transmitter Access Prg UP Alarm Input 2 12. Test Input Alarm SELECT Input 1 13. Alarm Input 1 - Master Alarm Test Prg DOWN Open...
  • Page 6 P1000 Motor Connection XL29/16, XL38/12 & XL60/8 ASB BS Motors Only and AV Fuse Connections BS Motors Require No External Stutter Brake 500mA Fuses (none replaceable) Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT...
  • Page 7 P1000 Stutter Brake Module XL29/16 & XL38/12 ASB Motors Only and AV Fuse Connections IF BS MOTOR IS USED DO NOT FIT 500mA Fuses (none replaceable) Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT...
  • Page 8 P1000 Stutter Brake Module XL60/8G ASB Motor Only and AV Fuse Connections IF BS MOTOR IS USED DO NOT FIT 500mA Fuses (none replaceable) Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1...
  • Page 9 Emergency Firefighter Override N/O P1000 Key Switch & Override Momentary Operation Connections Break Firefighter Access Make Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1 Alarm Test Prg DOWN Test Make Open...
  • Page 10 Emergency Firefighter Override N/O P1000 Key Switch & Override Momentary Operation Connections Break Firefighter Access Make Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1 Alarm Test Prg DOWN Test Make Open...
  • Page 11 Emergency Firefighter Override N/O P1000 Key Switch & Dual Override Momentary Operation Connections Break Firefighter Access Make Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1 Curtain Override Curtain Override Alarm Test...
  • Page 12 Emergency Firefighter Override N/O P1000 Key Switch & Dual Override Momentary Operation Connections Break Firefighter Access Make Fire Fire Receiver Transmitter Access Access Blue Wires - NC Prg UP Alarm Alarm Input 1 Input 2 PRESS PRESS Alarm Alarm SELECT Input 2 Input 1 Yellow Wires - NO...
  • Page 13 P1000 Alarm Interface, Alarm AV, Smoke / Heat Detector Connections Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1 Alarm Test Prg DOWN Test Open Open Close Close Stop Emer.
  • Page 14 P1000 Alarm Interface, Alarm AV, Dual Smoke / Heat Detector Connections Fire Fire Receiver Transmitter Access Access Prg UP Alarm Alarm Input 1 Input 2 Alarm Alarm SELECT Input 2 Input 1 Alarm Test Prg DOWN Test Open Open Close Close Stop Emer.
  • Page 15 Emergency Alarm Override N/O P1000 Alarm Interface, Alarm AV, Momentary Operation Smoke / Heat Detector & Key Switch Break Connections Make Alarm Control Panel Trigger Contact Opens When Bell Circuit Is Active Fire Receiver Transmitter Access Typical Alarm Interface Relay (Supplied by others) Prg UP Alarm...
  • Page 16 P1000 Light Curtain or Single Beam OSE Connection Details Light Curtain or Light Beam 10m Range OSE Light Curtain Obstruction action will need to be configured See OSE Operation Flowchart for details OSE Single Light Beam Relay 5 configured for obstruction Fire Fire Receiver...
  • Page 17 P1000 Menu Structure Standard Menu’s Standard + Engineers Menu’s Standard + Engineers + Expert Menu’s Engineer Mode Engineer Mode Selected Engineer Mode Selected Delay Alarm Operation Mode Operation Mode Operation Relay 2 Func Mains Switch Relay 4 Func Close Warning Motor Speed Battery Check Relay 5 Func...
  • Page 18 P1000 Alarm Operation Flowchart P1000 Alarm Alarm 2 Activation Alarm 1 Activation Auto Reset Enabled Delay Alarm Time Delay Alarm Rq’d 0 - 30 minutes Curtain Will Remain Re-open Curtain Closed After Alarm & After Alarm Require Manual Reset Close Warning Split Drop Rq’d 0 - 10 minutes Smoke Curtain...
  • Page 19 P1000 OSE Operation Flowchart P1000 Obstruction (OSE) Detection Obstruct Warn Options Sounder Only Disabled Prevent Close Obstruction Warning Obstruction Warning OSE Beams Time Set 0-30mins Time Set 0-30mins Broken (Obstruction detected) OSE Beams OSE Beams No Action Broken (Obstruction Broken (Obstruction No Sounder detected) detected)
  • Page 20 P1000 Realtime Clock Setting Routine Set Date + Time Scroll down to “Set Date + Time” menu with prog. button 3 Select number with Select number with Time 12:00:00 Date 01/01/19 prog. button 1 or 3 prog. button 1 or 3 Store press button 2 Store press button 2 Select number with...
  • Page 21 Basic Programming of P1000 - Menu Setting Prg UP SELECT Prg DOWN Engineer Mode Refer to advanced programming Delay Alarm To delay the close action upon receipt of an alarm signal on Alarm 1only. Range 0-30 Minutes Press the middle button to enter menu Select the Up or Down buttons to the desired time Press the middle button to store To enable a split drop first set the close warning time.
  • Page 22 Basic Programming of P1000 - Menu Setting Close Wait Smoke Curtain - Curtain remains in stage 2 position indefinitely or until Alarm 2 is triggered continued ..Press the middle button to enter menu Press the Up or Down button until Smoke Curtain is highlighted Press the middle button to store Sec.
  • Page 23 Basic Programming of P1000 - Menu Setting Mains Monitor The set time before the curtain closes automatically after a mains failure has been detected Range 0 - 3 Hours (0 hours = disabled) Press the middle button to enter menu Press the Up or Down buttons until the desired time is highlighted Press the middle button to store Mains Switch...
  • Page 24 Basic Programming of P1000 - Menu Setting Serial Number Not used S/W Version To read the software version programmed Press the middle button The Serial number is displayed Press the middle button to leave menu Set Date + Time The set the real time clock. For further details refer to Realtime Clock Setting Flowchart Press the middle button to enter menu The first digit of the date will flash Press the Up or Down buttons to set the desired number...
  • Page 25 Advanced Programming of P1000 - Menu Setting Prg UP SELECT Prg DOWN Engineer Mode Engineer mode is protected by a pass code. Refer to manufacturer for entry code If the pass code is entered incorrectly the menus will be locked for 2 minutes Operation Mode To select whether the system is an individual curtain or a networked system Options - Single Curtain, Master 1-5 Slaves, Slave 1-5, CJ Master 1-5 Slaves, CJ Slave 1-5.
  • Page 26 Advanced Programming of P1000 - Menu Setting Close Action To set how the curtain closes under keyswitch or alarm Options - Driven or Gravity Press the middle button to enter menu Press the Up or Down button and select either “Driven” or “Gravity” Press the middle button to store If Gravity is selected a further menu option becomes available and must be set - Gravity Timeout Gravity Timeout...
  • Page 27 Advanced Programming of P1000 - Menu Setting Brake On & Off The Brake On and Brake Off settings are used to control the descent speed of the curtain when set to Gravity Close When the voltage rises to the voltage set in Brake On the load dumped into the brake resistor which slows the curtain. As the curtain slows the voltage decreases towards the Brake Off voltage.
  • Page 28 Advanced Programming of P1000 - Menu Setting Power Save In order to save power this menu automatically turns off the brake once the curtain is in a fully closed position. Options - Enabled or Disabled Press the middle button to enter the menu Press the Up or Down button to select either “Enabled”...
  • Page 29 Advanced Programming of P1000 - Menu Setting Relay 3 Func This menu sets how Relay 3 is configured. The relay contacts are volt free c/o and can be used to signal obstruction, alarm activation, curtain status or fault conditions. Options - “Disabled”, “Alarm 1", “Alarm 2", “Open”, “Closed”, “Mains Fail”, “Fault”, “Obstruction” or “Battery Fail” Press the middle button to enter the menu Press the Up or Down button to select either “Disabled”, “Alarm 1", “Alarm 2", “Open”, “Closed”, “Mains Fail”, “Fault”, “Obstruction”...
  • Page 30 Advanced Programming of P1000 - Expert Mode - Menu Setting Advanced programming should only be undertaken by engineers with the required training Caution - Damage to the curtain / equipment may occur if these settings are incorrect Motor Type This menu selects the motor type being used. Options - Stall Open or Gravity F/Safe Gravity F/Safe (Gravity Failsafe) is the ASB motor and uses the upper limit on the motor to stop the curtain Stall Open requires a physical stop in the upper position to stall the curtain.
  • Page 31 Routine Maintenance P1000 Maintaining the system: what is involved? No matter how technologically advanced a fire protection system might be with state-of-the-art self-monitoring and automatic fault detection features, there will always be the need for human observation and intervention to ensure its continuous smooth running and optimum performance. There are three main reasons for routine maintenance and testing: To identify any faults signalled and take the appropriate action to rectify them;...
  • Page 32 Routine Maintenance P1000 Monthly Routine The recommendation for monthly testing by the user, can be summarised as follows: As the standby power supply is provided by vented batteries, these should be inspected visually. Furthermore all vented batteries and their connections should be examined on a quarterly basis (i.e.
