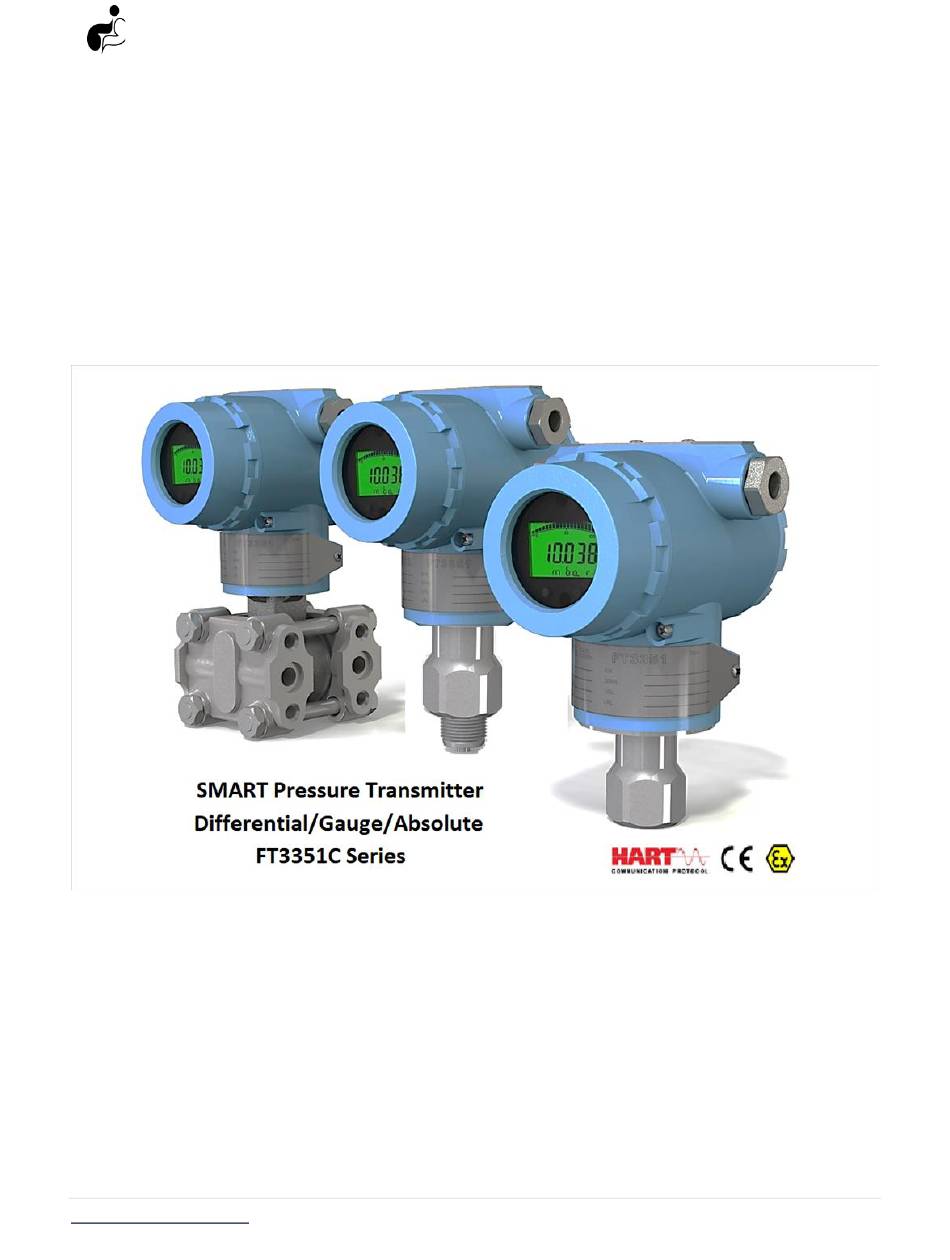

- Page 1 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Smart Pressure Transmitter ® FT3351 Series with HART Revision Selectable Protocol www.Faraboard.com P a g e...
-
Page 2: Table Of Contents
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Contents ® FT3351 SERIES WITH HART REVISION SELECTABLE PROTOCOL INTRODUCTION Preface Transmitter overview FT3351 features HARDWARE INSTALLATION General considerations Environmental considerations Installation Process 2.3.1 Dimension 2.3.2 Mount the Transmitter 2.3.3... - Page 3 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3.2.4 LCD Parameters 3.2.5 Analog Output Parameters Communication Parameters 3.2.6 Tank application parameters 3.2.6.1 Level unit 3.2.6.2 Volume unit 3.2.6.3 Mass unit 3.2.6.4 Density unit 3.2.6.5 Basic parameters 3.2.6.6...
-
Page 4: Doc. Ft3351Rev1401-05
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 1. Introduction 1.1 Preface Welcome to use smart pressure transmitter, please read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product. -
Page 5: Ft3351 Features
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Figure 1 FT3351 pressure transmitter 1.3 FT3351 features ◆ Best-in-Class performance with 0.075% reference accuracy. ◆ Traditional platform enables integrated pressure, flow and level solutions. ◆ Power Advisory Diagnostics provide predictive visibility to the health of entire electrical loop. -
Page 6: General Considerations
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 The information in this section covers installation considerations for the FT3351 with HART protocols. 2.1 General considerations Measurement accuracy depends upon proper installation of the transmitter and impulse piping. -
Page 7: Installation Process
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 (–40 to 85 °C). Mount the transmitter so that it is not susceptible to vibration and mechanical shock and does not have external contact with corrosive materials. - Page 8 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 can be corrected via the Local Operator Interface. It is important to mount the transmitter and to lay the process piping so that gas bubbles, when measuring liquids, or condensate when measuring gases, will flow back to the process and not enter the transmitter measuring chamber.
- Page 9 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Figure 5 Type-B pressure transmitter mounting diagrams Figure 6 Type-C pressure transmitter mounting diagrams www.Faraboard.com P a g e...
-
Page 10: Housing Rotation
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 2.3.3 Housing rotation To improve field access to the wiring or the visibility of the optional LCD meter, the transmitter housing may be rotated through 360° and fixed in any position (see Figure 7). A stop prevents the housing from being turned too far. -
Page 11: Wiring
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 ensure the bottom of the drip loop is mounted lower than the conduit connections or the transmitter housing based on Figure 8. Figure 8 Recommended conduit connections 2.4.2 Wiring... -
Page 12: Grounding
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Figure 9 Recommended wiring 2.4.3 Grounding Use the following techniques to properly ground the transmitter signal wiring and case. Do not run signal wiring in conduit or open trays with power wiring or near heavy electrical equipment. -
Page 13: Configuration
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3. Configuration 3.1 LCD display The LCD indicator connects directly to the interface board which maintains direct access to the signal terminals. It can display the digital pressure, temperature, current some kinds of physicals, calculated variables such as level, volume, mass, density and flow, 0-100% analog indication and abbreviated diagnostic messages. -
Page 14: Device Mode
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 In operation mode by pressing <M> button, menu for tuning the parameters is available for users and they can use this button to save new parameters when all characters in display are in blinking mode. - Page 15 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 Press <M> until this page is appeared on LCD. Then press <Z> to access the units (programing mode). You can select the unit by pressing <S>. After that, press <Z> until all Unit characters blink.
-
Page 16: Max Range And Min Range And Transfer Function
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3.2.2.2 Max Range and Min Range and Transfer function User can determine the maximum and minimum value of pressure which will be mapped to 4- 20mA of output signal. After this configuration the output signal will be mapped to min and max values. -
Page 17: Damping Value
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 User can select the decimal points count of primary variable to display on LCD with DP menu. For selecting the primary variable as displayed variable please refer to LCD parameters. -
Page 18: Custom Variable
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 The unit of low trim value is same as primary variable. When this menu appears on LCD it show the current measurement of process pressure. So after stabilizing of process pressure user should enter his desired pressure value (ordinary zero). -
Page 19: Decimal Point
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3.2.3.2 Decimal point User can select the decimal points count of custom variable to display on LCD with DP menu. For selecting the custom variable as displayed variable please refer to LCD parameters. -
Page 20: Analog Output Parameters
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 [volume in tank application] [mass in tank application] [density in tank application] 3.2.5 Analog Output Parameters The output signal of transmitter is a 4-20mA current which in normal condition represents the current value of primary variable. -
Page 21: Tank Application Parameters
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 parameter display Parameter tuning structure Press <M> until this page is appeared on LCD. Then press Hart Protocol <Z> to access the Poll ID parameter (programing mode). -
Page 22: Level Unit
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 If Density mode is selected the tank should be full in normal operation and user must determine the level unit, density unit, transmitter position (h₀), the tank total height (H), low density value equivalent to 4.0mA output (LRV) and high density value equivalent to 20.0mA output (HRV). -
Page 23: Volume Unit
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3.2.6.2 Volume unit User can select the tank volume unit using this parameter. parameter display Parameter tuning structure Press <M> until this page is appeared on LCD. Then press <Z>... -
Page 24: Mass Unit
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 3.2.6.3 Mass unit User can select the tank mass unit using this parameter. parameter display Parameter tuning structure Press <M> until this page is appeared on LCD. Then press <Z>... -
Page 25: Basic Parameters
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 P/IN3 [pound per cubic inch] T/YRD3 [ton per cubic yard] UG/L [micro gram per liter] UG/M3 [micro gram per cubic meter] 3.2.6.5 Basic parameters Due to selected mode of device in “Device-Mode” menu item, the device needs some parameter to calculate the user’s desired variable. -
Page 26: Desired Variable Range
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 After configuring these parameters, some local parameters will be calculated internally. For example: �� = ρ. V Where M is total mass, ρ is liquid density and V is total volume ��... -
Page 27: Reset Factory
FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 The device will calculate the corresponding Min pressure value and max pressure value automatically with bellow formulas: In level mode: �������� = ρ ∗ g ∗ (LRV − h₀) ��������... - Page 28 FAHM Co. SMART Pressure Transmitter Industrial Automation FT3351 Series User Manual Doc. FT3351Rev1401-05 July.2022 www.Faraboard.com 28 | P a g e...
