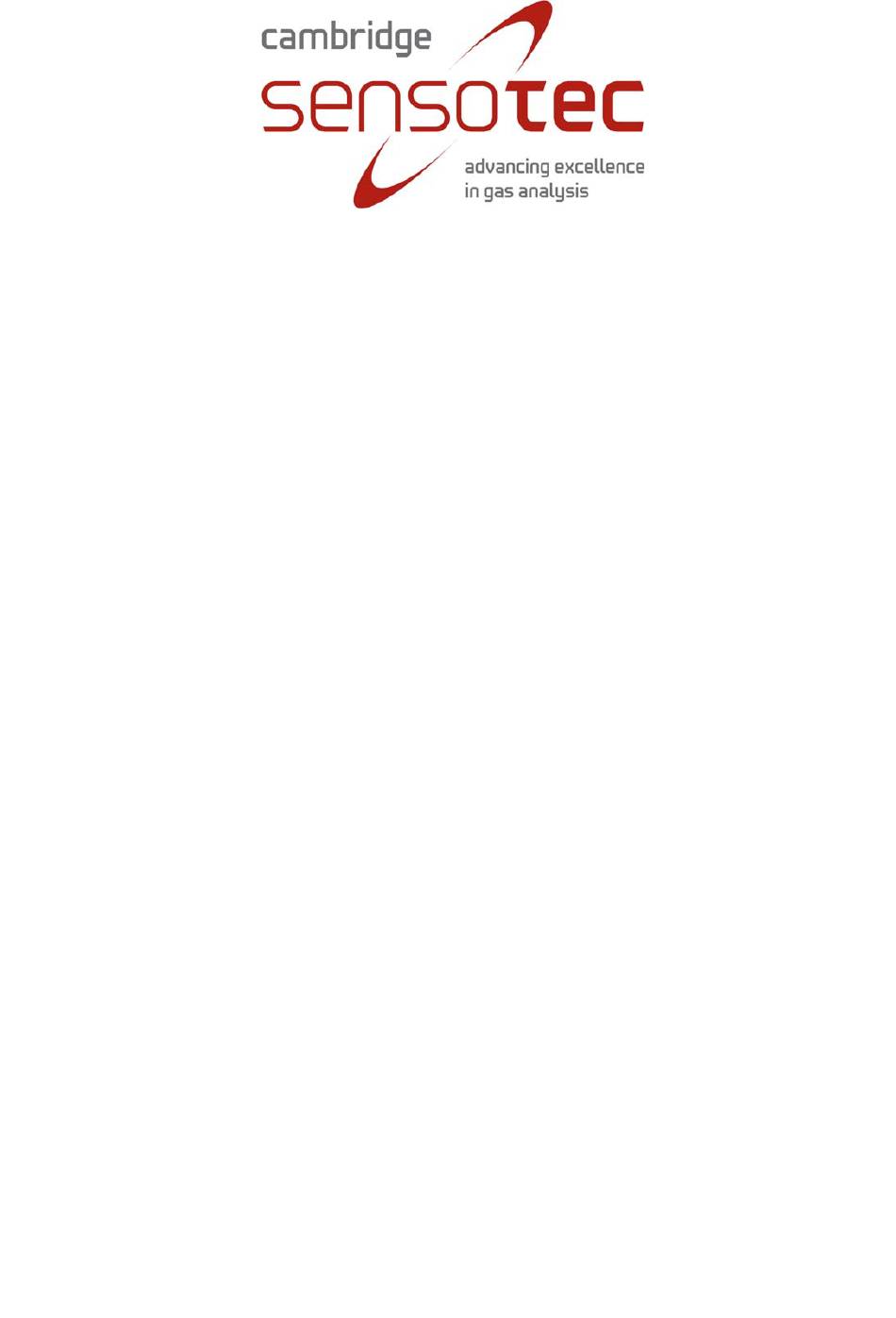

- Page 1 Rapidox 1100L Oxygen Analyser Instruction Manual Revision 1.6 Cambridge Sensotec Limited Unit 29 Stephenson Road St Ives CAMBS PE27 3WJ Tel. +44 (0)1480 462142 Fax +44 (0)1480 466032 Mobile (07866) 624236 Sales@Cambridge-Sensotec.co.uk...
- Page 2 UK users only: If you have purchased any electronic or electrical product from Cambridge Sensotec since 2007 and would like to dispose of it correctly under the WEEE scheme, please contact us and we will be happy to either arrange the collection of the waste or have it returned to our offices for recycling.
-
Page 3: Table Of Contents
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Contents Introduction ......................1 Features ....................... 1 Specification......................2 Rapidox Dimensions & Power Requirements ..........2 Accuracy and Resolution................2 Display ......................2 Calibration ....................2 Operating Temperature & Pressure ............. 2 Outputs ...................... - Page 4 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Calibration Error Messages................ 26 Replacing the sensor.................. 27 8.10 Software Utilities ..................28 8.10.1 Setting Analyser Date and Time ............28 8.10.2 Check for Updates ................29 8.10.3 Image Grabber..................29 Rapidox Data-Logging Software................ 29 Introduction ....................
-
Page 5: Introduction
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual 1. Introduction The Rapidox 1100L oxygen analyser allows accurate oxygen analysis over the range 0.1ppm to 1% O using a special German-engineered ppm electrochemical oxygen cell. This special low range analyser is designed for applications where a traditional zirconia sensor is not suitable. -
Page 6: Specification
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Programmable alarms with outputs (volt-free contacts) and audible and visual warnings. Works on any worldwide mains voltage 90-260 Vac. Printer and transport Peli-case options. 3. Specification Rapidox Dimensions & Power Requirements Case dimensions: W=250mm; D=263mm; H=150mm. Weight=4kg. Metal carrying handle supplied as an option. -
Page 7: Outputs
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Outputs The RS232 serial port (RS485 is available on request) outputs on demand values for oxygen (ppm), the internal temperature and pressure sensor data (temperature in °C, pressure in bar), time (hh:mm:ss) and date (dd/mm/yy). This data can be downloaded and logged using the software provided. -
Page 8: Warning
This unit is NOT designed for use in life support situations. No responsibility can be held for injury or loss of life caused by inappropriate use of this equipment. 7. Rapidox Operating Instructions Figure 1: Rapidox 1100L front panel. Numbers are referred to in the text. Version 1.6 Last printed 16/11/2011 16:59:00... -
Page 9: The Rapidox Analyser - Menu System
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Figure 2: Rapidox 1100L rear panel. Numbers are referred to in the text. The Rapidox Analyser - Menu System All of the user-programmable functions are accessed via a menu system which is controlled using the front panel Keypad (2). -
Page 10: Pump Control
Pressing ESC takes you out of the password protected area and you will have to re- enter the password to go back in again. If the password has been forgotten please contact Cambridge Sensotec who will advise you on how to recover it. -
Page 11: Rapidox Calibration
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Rapidox Calibration Once the unit is at temperature it may be necessary to calibrate the sensor. Full calibration is a simple procedure requiring only one or two gases. The two gas values are user-selectable and can be changed via the front keypad (2) or the communications software described in section 8, and the calibration values can be stored on file for later use. -
Page 12: Alarms
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual is significantly different from the ambient temperature, allow the gas to flow for sufficient time for the sensor temperature to stabilise fully before calibrating. The analyser predicts the correct signal from the sensor during calibration and if this is outside the range of expected values then the display will flash and display “G?”... - Page 13 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual scroll down the menu to option 3 “Set Alarms” and press ENT. Now use the UP & DOWN arrows to select “Alarm 1” or “Alarm 2” and press ENT. The next screen shows the message “Assign To:”...
-
Page 14: Analogue Outputs
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Analogue Outputs The standard industrial analogue outputs (0-10V and 4-20mA) for both oxygen and pressure are accessible via the terminal block (6) on the rear panel. Note that the ranges of the 0-10V and 4-20mA are tied together so changing one alters the other. - Page 15 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual To modify the oxygen analogue output range scroll down the menu to no.3 “Set Outputs” and press ENT. Edit the lower and upper values in exactly the same manner as described in 7.5 for setting the cal gas values. Once programmed the new values remain in the memory until they are edited again in the future.
-
Page 16: Setting The Display Units
The default setting is 0.3 seconds. 7.10 Internal Pressure Sensor The Rapidox 1100L is fitted with an internal absolute pressure sensor which monitors small changes in pressure and vacuum inside the sensor head. The pressure will normally be ambient absolute (e.g. 1013 mbar) under normal... -
Page 17: Pressure Mode
2. Auto: This is the factory default setting. If the Auto mode is selected then the Rapidox 1100L uses the reading from the internal pressure sensor to correct the oxygen partial pressure and maintain an accurate concentration reading. - Page 18 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Figure 4: Rapidox default COM properties box Alternatively, the baud rate can be reduced to 57,600 or 9600 via the “Set Baud Rate” menu item, using the front panel keypad on the Rapidox. This setting is stored in EEPROM.
-
Page 19: Rs485 Protocol
** If no alarm conditions exist, this data is empty, so the response would look like: d9.959E+04,1.426E+02,2.000E-03,2.610E+01,23:19:40,14/11/10,,0[CR][LF] Response: Meaning: “D” command was not recognised. Try to send it again. 7.13.2 RS485 protocol Please contact Cambridge Sensotec for further information on this feature. Version 1.6 Last printed 16/11/2011 16:59:00... -
Page 20: Setting The Date & Time
The cell is held in a metal housing and it is possible to replace it yourself. Please ask Cambridge Sensotec for advice. Once the cell is replaced go to menu option 2 “New Sensor” and press ENT whereupon you will see a message saying “Fit New Sensor in X days”, where X is a number... -
Page 21: Printing
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual 7.16 Printing If you have purchased the printer option then you can print data from the analyser straight on to thermal paper. Simply connect the printer to the serial socket on the rear of the Rapidox and make sure the printer is switched on (battery and mains versions are available). -
Page 22: Rapidox Software Instructions
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual 8. Rapidox Software Instructions Software Installation It is possible to programme a range of variables to the Rapidox using an RS232 (or RS485 if configured) link with a PC running MS-Windows (all versions) and the supplied Rapidox software. -
Page 23: On-Screen Help
COM port settings in Device Manager accessed by clicking START – Settings - Control Panel. If your PC does not have a serial port, you can use a USB to RS232 adapter – please contact Cambridge Sensotec if you would like advice about selecting one. -
Page 24: Reconfiguring The Analyser
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual ‘Config’ pages. Note that the entries in the boxes on the RHS (under the ‘Write’ button) will turn red if the value is different to that just read and a red asterisk will appear next to the ‘Write’... -
Page 25: Config 1 Screen
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual or ‘ppm’. To access a field, either click inside it or use the TAB key to scroll through the fields. The field parameters are as follows: 8.5.1 Config 1 Screen Oxygen Range: Not available for the Rapidox 1100L Oxygen Units: See Section 7.8 for a full description. -
Page 26: Config 2 Screen
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual 8.5.2 Config 2 Screen Figure 7: Configuration 2 page. Note the actual values used may differ from those shown above. Calibration Gas 1, 2: These boxes are greyed out in this version and the data is for information purposes only. -
Page 27: Alarm Config Screen
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Factory Pressure Offset: This value is preset in the factory to fine tune the on-board pressure sensor and is just shown for information purposes. Please ignore this value as it is fixed for the life of the analyser. -
Page 28: On-Screen Lcd
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Visible Alarm: This option enables or disables the visual warning on the front LCD. When enabled and an alarm condition occurs the message “AL1” or “AL2” (or both) will flash in the lower right hand corner. -
Page 29: Remote Calibrating
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Remote Calibrating With the on-screen LCD display active it is possible to remotely calibrate the analyser. Click on the down arrow icon in the bottom right-hand corner of the LCD display to expand the window: Figure 10: Remote calibration and replace sensor function Use the two buttons to calibrate the sensor directly from the PC. -
Page 30: Calibration Error Messages
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Figure 12: Calibration Gas Update Screen. Enter your new value in the units as instructed and click “OK” to proceed. This value will then be stored until you want to change it again. You will now see the following screen: Figure 13: Calibration Confirmation Screen. -
Page 31: Replacing The Sensor
AUTO pressure correction mode you will get a fault message and the Rapidox will refuse to continue with the calibration: Please contact Cambridge Sensotec to advice. If you need to use the analyser in the meantime please disable the pressure correction function (see section 7.11) and you can continue to calibrate and take readings. -
Page 32: Software Utilities
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Referring to Figure 10 click on the button labelled “Replace Sensor”. The following message will appear: Figure 14: New Sensor Confirmation Screen If you are replacing the sensor before the recommended due date the following... -
Page 33: Check For Updates
This is a simple function to allow the user to copy the software screens into the Windows clipboard. This is useful for diagnosing problems; allowing a quick and simple way of sending the Sensotec technicians actual screen shots of the software. To recover the images simply press CTL+V to paste. - Page 34 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Figure 17: Data Logging page During logging, data from the analyser is shown in the central area of this page. The data is displayed in the following columns: elapsed time (in seconds, minutes or hours), the raw signal from the sensor amplifier (in mV), the oxygen value (in ppm scientific notation), pressure in mbar, the temperature (in °C), the current...
-
Page 35: Running The Data Logger
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Running the Data Logger If you wish to save the data into a file for later use, check the ‘Save to File’ box before selecting ‘Run’ from the Data Logger menu. You will be prompted for a file name and location before data logging commences. -
Page 36: Live-Time Graphing Screen
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual And so on. Combined together they represent all the data over the last seven days. Note that the Rapidox uses the computer clock and date to perform this action, so make sure that they are correct before starting a run. -
Page 37: Main Graph Window
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Main Graph Window The graph is an XY plot, with time plotted on the X-axis, oxygen plotted on the primary Y-axis (Y1) and pressure or temperature plotted on the secondary Y-axis (Y2). The X-axis and the two Y-axes auto-scale during data logging so that all data points are shown on the graph. -
Page 38: Last Data Point
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual interest and read the corresponding X1 and Y1 values in the box. 9.10 Last data point During data acquisition, the box labelled ‘Last data point’ will appear at the upper middle of the graph window. It displays the most recent data values read from the analyser. -
Page 39: Second Y Axis
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual in the top right box labelled ‘O2 Axis’. Note that the zoom function is disabled when you are viewing on a log scale. 9.15 Second Y Axis The secondary Y axis located on the right hand side of the graph can be used to display either the pressure taken from the internal pressure sensor or the gas temperature. -
Page 40: Changing The Data Logging Parameters Mid-Run
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual data logging, then the software will pause automatically. A message appears on the screen informing the user that the unit is being accessed from the keypad. Once the menu has been exited, the software will continue data logging from where it left off. -
Page 41: Diagnostics
They are for information purposes only but are a useful diagnostics tool for Sensotec staff, as unusual values can indicate a particular fault. To help Sensotec diagnose a fault please capture this window as shown above using the screen capture function described in section 8.10 above and e-mail it to... -
Page 42: Troubleshooting
4. Log Diagnostic Data: Checking this box will allow the software to log the diagnostic data which can then be e-mailed to Sensotec for analysis. Do not switch to a different tab while logging diagnostic data – the data is only logged while the “Diagnostics”... -
Page 43: Warranty
Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual Check to make sure which calibration gases are selected. Are they the same as the actual gases you used to perform the calibration? If not you must recalibrate the analyser or re-load the factory defaults to get you going again. -
Page 44: Conditions Of Warranty
Refer to the “Troubleshooting” section of your instruction manual to identify and possibly correct the problem. b] If the fault cannot be resolved, please contact the Cambridge Sensotec service and repair centre at the address given on the cover of the manual. - Page 45 ………………………………………. Calibration Gas 2 ………………………………………. Configuration Filename ………………………………………. Calibrated by: ………………………………………. Signed: ……………………………………….. Cambridge Sensotec Ltd Tel. +44 1480 462142 Unit 29 Stephenson Road Fax. +44 1480 466032 St Ives www.cambridge-sensotec.co.uk CAMBS sales@cambridge-sensotec.co.uk PE27 3WJ VAT no. GB 745 939975...
- Page 46 Cambridge Sensotec Rapidox 1100L Oxygen Analyser Instruction Manual...
- Page 47 APPENDIX 1: MENU FLOWCHART FOR RAPIDOX 1100L 20ppm Back to Measurements : Changes Applied 0.0mbar ESC - Back to Menu List. No changes 1-Calibrate Calib: O High 4.000E+04ppm 4.000E+03ppm 4.000E+03ppm ® ® ® ® ® (prompts 1) (prompts 2) (prompts 3) Calib.
- Page 48 Back to Measurements. Continued from page 1 ESC - Back to Menu List. No changes 5-Set Units Oxygen: Auto % Temperature: °C Pressure: bar Pressure: bar ® ® ® ® ® (prompts 1) (prompts 6) (prompts 6) (prompts 6) All units set (Options: °C,°F) (Options: bar, torr, kPa, mbar, psi) Displays message for 1.5 seconds...
- Page 49 ESC - Back to Menu List. No changes Back to Measurements. Continued from page 2 11-Load Defaults Load Defaults? ® ® ® Defaults Loaded (prompts 1) (prompts 7) Enter for two seconds to load defaults Displays message for 1.5 seconds 12-Password Menu Password: 0*** Password: Enable...
