INSTRUCTION
MANUAL

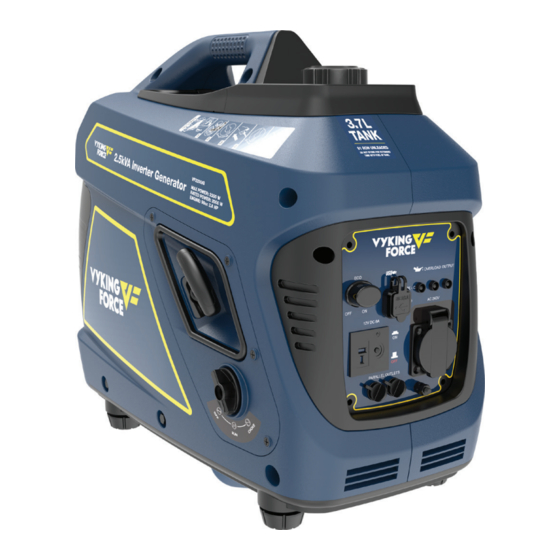

2.5kVA Generator VF2200IG
To prevent serious injury, read and understand all warnings and
instructions before use. Keep these instructions safe for future
use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VF2200IG and is the answer not in the manual?

Questions and answers

Related Manuals for VYKING FORCE VF2200IG

Summary of Contents for VYKING FORCE VF2200IG

  • Page 1 INSTRUCTION MANUAL 2.5kVA Generator VF2200IG To prevent serious injury, read and understand all warnings and instructions before use. Keep these instructions safe for future use.

  • Page 2: Table Of Contents

    Contents Hazard signal word definitions Before starting General warnings & disclaimer Recommended oil type Component identification Control panel identification Generator set up Power load planning & management Initial oil fill Adding/checking engine fluids & fuel Starting the inverter Stopping the inverter During an emergency Using efficiency mode Connecting loads...
  • Page 3 2.5kVA Inverter Generator VF2200IG About your generator Thanks for your purchase of this Vyking Force Generator. This generator is suitable for home, farm, camping, sports and leisure. With built-in Pure Sine Wave technology (THD≤3%), it’s also ideal for powering tools, domestic appliances and sensitive electronic devices.
  • Page 4 Rated noise level at 7M 71 dB Vyking Force is constantly improving its products. All information in this manual is based on the latest product information available at the time of printing. The specifications outlined herein are subject to change without prior notice or obligation. The purchaser and/or user shall assume liability for any modification and/or alterations of this equipment from original design and manufacture.

  • Page 5: Hazard Signal Word Definitions

    2.5kVA Inverter Generator VF2200IG Unpacking and delivery inspection You should inspect the generator immediately after you receive delivery. If you have missing or damaged parts, contact your place of purchase. Do not operate this product if there’s any issue with the parts.

  • Page 6: Before Starting

    Before starting The generator is shipped without oil. You must add an adequate amount of engine oil before first use. The engine will be damaged beyond repair if it’s started without oil. For oil type, please see “Recommended Oil Type” section of this manual on page 13. Fresh regular RON (Research Octane Number) 91 fuel must be used in this unit.

  • Page 7: General Warnings & Disclaimer

    2.5kVA Inverter Generator VF2200IG Safety signs Comply with the instructions provided by the safety signs and symbols fitted to the generator and in this manual. The generator and manual only feature the symbols relevant to the model purchased. Check that the symbols and signs affixed to the unit are always present and legible.
  • Page 8 STOP! CHOOSE THE RIGHT GENERATOR FOR YOUR NEEDS. See the Power Load Planning & Management section on page 21 to determine your power load requirements and then compare to the generator’s rated capacity. INSPECT COMPONENTS: Closely inspect to make sure no components are missing or damaged.
  • Page 9 2.5kVA Inverter Generator VF2200IG • Use personal protective equipment. Always wear eye protection. Wear approved safety impact eye goggles. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the generator in unexpected situations.
  • Page 10 • Generator speed. Never attempt to modify the generator speed setting. The generator speed is preset for safe and optimal performance of the generator. If speed needs adjusting, it must be done by factory authorised personnel. • External fuel sources. Never attempt to connect external fuel sources in order to increase generator run time.
  • Page 11 • Have your generator serviced by a qualified repair person using only factory approved replacement parts. This will ensure that the safety of the generator is maintained. Incorrectly fitted parts will void your warranty. Contact the Vyking Force customer support team at support@vykingforce.com for a list of service agents •...
  • Page 12 • Touch a grounded metal object before starting. Always dissipate static charge from your body before beginning the fuelling process by touching a grounded metal object at a safe distance away from fuel sources. • Use a portable container to fill tank. Never fill the engine’s petrol tank directly from the fuel pump –...

  • Page 13: Recommended Oil Type

    Recommended oil type Oil Recommendations We recommend the use of our Vyking Force power equipment oil SAE 30 SJ/CF (Part No VF30184) for best performance. Other high-quality oils are acceptable if classified for service SF, SG, SH. SJ or higher.

  • Page 14: Component Identification

    Component identification Handle Fuel Tank Recoil starter grip Eco mode button Overload indicator Output indicator Off/Run/Choke Low oil indicator USB inputs (Type C & QC 3.0) 1 x 15 A IP44 240 V outlet Earth terminal Parallel outlets (cable sold separately, VFIGPC)

  • Page 15: Control Panel Identification

    12V DC OUTLET- Can be used for 12V DC powered devices. Maximum output 8 Amps PARALLEL OUTLETS- For use in conjuction with Vyking Force parallel cable kit (Part No VFIGPC sold separately) to double power output with another Vyking Force Generator...

  • Page 16: Generator Set Up

    240V 15A AC OUTLET- This outet is capable of delivering generators full output or 15 Amps, whichever is the lesser GROUND TERMINAL- The frame terminal can be used by a licensed electrician to earth the generator if necessary. Generator set up Planning the power load Plan your power load so that you do not exceed the generator’s rated capacity.
  • Page 17 2.5kVA Inverter Generator VF2200IG Grounding is not required when the generator WARNING is used as a portable power source. Below grounding method is only needed by a qualified electrician if connecting through your building’s electrical system. If the generator is not grounded through your building’s electrical system, follow the procedure below fig 1.
  • Page 18 Extension leads should be heavy duty with at least 1mm, of appropriate current rating and in any case not less than 1mm cross-section of conductor and must incorporate an earthing conductor to ensure that there is no voltage difference between the generator set and any equipment powered by the generator.
  • Page 19 2.5kVA Inverter Generator VF2200IG Outdoors only Follow the directions below for choosing a location to operate your generator in order to avoid carbon monoxide poisoning. • The location you choose to operate the generator must be OUTDOORS and away from all building air intakes: •Never run the generator inside any closed or semi-enclosed...
  • Page 20 • Do not operate with a tarp, blanket, or cover surrounding the generator. Heat build-up from inadequate ventilation can WARNING result in fire, posing a serious risk to nearby persons and structures. Situate so there is adequate clearance around generator to allow for cooling airflow so that heat does not build •...

  • Page 21: Power Load Planning & Management

    2.5kVA Inverter Generator VF2200IG Power load planning and management NEVER exceed the rated wattage capacity of WARNING your generator. OVERLOADING may cause SERIOUS DAMAGE to the generator and attached electrical devices and may result in fire. Your generator MUST BE SIZED PROPERLY to provide both the running and starting (surge) wattage of the devices you will be powering.

  • Page 22: Initial Oil Fill

    Flat Screen TV (20") Flat Screen TV (46") Electric Grill 1650 Electric Fry Pan 1500 Hair Dryer (1600 W) 1800 1900 Radio 50-200 Starting power consumption Electronic appliances and brushed motors generally will not draw more than running Watts at start up. Induction motors in equipment like air conditioners, welders, water pumps and compressors can draw 2 to 5 times their running power to start.
  • Page 23 2.5kVA Inverter Generator VF2200IG Figure 3: Oil Funnel Figure 3: Oil Funnel 1. Turn the locking knob on the engine access panel and set aside (see Figure 1). If oil level is below this line it is too If oil level is below low to operate.

  • Page 24: Adding/Checking Engine Fluids & Fuel

    Figure 3: Oil Funnel 4. Do not overfill, if oil level is too high, oil will drain out through the fill plug. See correct oil level in Figure 4. If oil level is below this line it is too low to operate. If oil level is below this line it is too low to operate.
  • Page 25 2.5kVA Inverter Generator VF2200IG Checking and / or adding engine oil Internal pressure can build in the engine DANGER crankcase while the engine is running. Removing the oil fill plug/ dipstick while the engine is hot can cause extremely hot oil to spray out of the crankcase and can severely burn skin.
  • Page 26 Avoid prolonged skin contact with petrol. WARNING Avoid prolonged breathing of petrol vapors. Required Petrol – Only use petrol that meets the following requirements: • Unleaded petrol only • Petrol with maximum 10% ethanol added • Petrol with an 91 octane rating or higher Filling the Fuel Tank –...

  • Page 27: Starting The Inverter

    2.5kVA Inverter Generator VF2200IG Starting the inverter BEFORE STARTING THE INVERTER, REVIEW SAFETY SECTION STARTING ON PAGE 6. For proper starting and operation of the inverter, make sure you review the inverter features and their descriptions starting on page 14.

  • Page 28: Stopping The Inverter

    Figure 7: Turn Engine/Fuel Switch to CHOKE Position Figure 7: Turn Engine/Fuel Switch to CHOKE Position 3. Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling out from the inverter (see Figure 8). Figure 8: Pull the Recoil Handle away from Inverter Figure 8: Pull the Recoil Handle away from Inverter 4.

  • Page 29: During An Emergency

    2.5kVA Inverter Generator VF2200IG 3. Move the engine control switch to the OFF position (see Figure 10) . During an Emergency If there is an emergency and the inverter must be stopped quickly, move the engine control switch to the OFF position immediately (see Figure 10).

  • Page 30: Connecting Loads

    The generator must be run at the correct WARNING speed in order to produce the proper electrical voltage and frequency. Failure to do so could result in damage to equipment powered by the generator and possible injury to the individual. Connecting loads You will want to be careful when connecting loads so as not to overload the generator, especially if you are powering devices with motors that require a higher starting power...
  • Page 31 2.5kVA Inverter Generator VF2200IG 12V DC CONNECTION The generator is fitted with a socket outlet specifically for connection to a lead acid battery for charging. The output voltage is 12V with maximum output current of 8A. The generator will charge lead acid batteries of various sizes from small to large.

  • Page 32: Dc Overload Cut Out

    DO NOT leave battery charging unattended. WARNING Charging battery for a long period of time can damage the battery once the battery is full. Over-charging or over-heating can damage the battery, the water and acid solution can boil and leak out of the battery. DC overload cut out CAUTION Exceeding the rated capacity of your generator...

  • Page 33: Storage

    2.5kVA Inverter Generator VF2200IG For instance, if the generator is used for 4 hours on low wattage, run the generator for 1 hour at around 75% of rating. If the generator is being used for solely charging a battery, it’s recommended to run the 240V at around 500W for the generators up to 2000W if the charging cycle will be ran for many hours.
  • Page 34 Store the generator in a location that is clean, dry, away from sources of heat, open flames, sparks, or pilot lights and is not subject to extreme high or low temperatures. Residual fuel in the tank could ignite even if the generator’s fuel tank is empty. Note: Do not store with battery charger always connected.

  • Page 35: Maintenance & Repair

    2.5kVA Inverter Generator VF2200IG 8. Replace spark plug, but do not reconnect the spark plug wire. Removal from storage Follow the normal procedures for pre-operation checks and starting. Use only fresh fuel to refill the tank, if necessary, rather than re-using the old fuel.
  • Page 36 Engine oil maintenance Oil Recommendations We recommend the use of our Vyking Force power equipment oil SAE 30 SJ/CF (Part No VF30184) for best performance. Other high-quality oils are acceptable if classified for service SF, SG, SH. SJ or higher.
  • Page 37 2.5kVA Inverter Generator VF2200IG NOTE: Below 4°C the use of SAE 30 will result in hard starting. Above 27° C the use of 10W-30 may cause increased oil consumption. Check oil level more frequently. Checking engine oil NOTICE Always maintain proper engine oil level.
  • Page 38 5. With a damp rag, clean around the oil fill/drain plug. 6. Remove the oil fill/drain plug. 7. Check oil level: When checking the engine oil, remove the oil fill/drain plug. • The oil level is acceptable if oil is visible at the bottom of the threads of the oil fill plug. •...
  • Page 39 2.5kVA Inverter Generator VF2200IG 8. Using the supplied oil funnel, slowly add engine oil to the engine. Stop frequently to check the oil level and avoid overfilling. 9. Continue to add oil until the oil is at the correct level.
  • Page 40 9. Fill crankcase with oil following the steps outlined in Adding Engine Oil on page 38. 10. Dispose of used engine oil properly. Never dispose of used engine oil by NOTICE dumping the oil into a sewer, on the ground, or into groundwater or waterways.
  • Page 41 2.5kVA Inverter Generator VF2200IG 4. Remove the foam element from the air cleaner housing. 5. Wash the foam air filter element by submerging the element in a solution of household detergent soap and warm water. Slowly squeeze the foam to thoroughly clean.
  • Page 42 Draining the float bowl 1. Remove the engine service panel to access the carburetor. 2. Locate the clear plastic hose from the float that is exiting out the bottom of the inverter, and place a suitable container under it to catch the drained fuel (see Figure 16).
  • Page 43 2.5kVA Inverter Generator VF2200IG Never dispose of fuel by dumping fuel NOTICE into a sewer, on the ground, or into groundwater or waterways. Always be environmentally responsible. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials.
  • Page 44 Figure 17: Locate spark plug 4. Remove the spark plug boot by firmly pulling theplastic spark plug boot handle directly away from the engine. NOTICE Never apply any side load or move the spark plug laterally when removing the spark plug. Applying a side load or moving the spark plug laterally may crack and damage the spark plug boot.
  • Page 45 2.5kVA Inverter Generator VF2200IG 9. Install the spark plug by carefully following the steps outlined below: a. Carefully insert the spark plug back into the cylinder head. Hand-thread the spark plug until it bottoms out. b. Using the spark plug socket wrench provided, turn the spark plug to ensure it is fully seated.
  • Page 46 7. Using a wire brush, remove any dirt and debris that may have collected on the spark arrestor screen. 8. If the spark arrestor screen shows signs of wear (rips, tears or large openings in the screen), replace the spark arrestor screen. 9.
  • Page 47 2.5kVA Inverter Generator VF2200IG Figure 20 (1) Valve, (2) Feeler Gauge Area (3) Rocker Arm, (4) Jam Nut, (5) Adjusting Nut Table 1: Standard Valve Lash Intake Valve Exhaust Valve Valve Lash .0023-.0039in .0031-.0048in (.06-.10mm) (.08-.12mm) Bolt Torque 8-12N.m 8-12N.m 6.
  • Page 48 Storage Never store an inverter with fuel in the WARNING tank indoors or in a poorly ventilated area where the fumes can come in contact with an ignition source such as a: 1) pilot light of a stove, water heater, clothes dryer or any other gas appliance;...

  • Page 49: Maintenance Schedule

    2.5kVA Inverter Generator VF2200IG Maintenance schedule To prevent accidental starting that could cause WARNING serious personal injury, always switch off the engine and disconnect the spark plug wire/lead before carrying out maintenance work. Periodic maintenance ITEM REMARKS Pre- Initial 1...
  • Page 50 Starting Check recoil system starter operation. Fittings/ Check all fittings fasteners and fasteners, correct if necessary. Additional Notes: • Service more frequently when used in dusty areas. • These items should be serviced by your servicing dealer, unless you have the proper tools and mechanically proficient skills.

  • Page 51: Maintenance Log

    2.5kVA Inverter Generator VF2200IG MAINTENANCE LOG Your Vyking Force generator is protected by a 2 year limited warranty that covers the product for normal use. The warranty statement is found on the back of this Manual. You must understand that negligence or misuse is not covered in the warranty and failure to properly maintain and service the engine can void your warranty.

  • Page 52: Troubleshooting

    Troubleshooting Before attempting to service or WARNING troubleshoot the inverter, the owner or service technician must first read the owner’s manual and understand and follow all safety instructions. Failure to follow all instructions may result in conditions that can lead to voiding of the EPA certification or product warranty, serious personal injury, property damage or even death.
  • Page 53 2.5kVA Inverter Generator VF2200IG 1. Inverter is out of petrol. 1. Add petrol to the inverter. 2. Fuel flow is obstructed. 2. Inspect and clean fuel delivery passages. 3. Dirty air filter 3. Check and clean the air filter. 4. Low oil level shutdown 4.

  • Page 54: Wiring Diagram

    Wiring diagram MODEL: VF2200IG For parts drawing and parts list, please contact your place of purchase or email support@vykingforce.com...

  • Page 55: Generator Diagram

    2.5kVA Inverter Generator VF2200IG Generator diagram MODEL: VF2200IG E'L'MNO%M6PNMO6Q9RO6S%M6F?::,,9E6 !"# $%&' ++,,,-./,,01 2"345678+,,9 ;,,<0; =>??@456AB??@4 ;,,<0/C/;; )8465DE8)6?5B=4 < ;,,<;- ?@""5 ;,,<1+C/;; )846@4?)6?5B=4 ;,,<0<C/;; )8465DE8)62B!4@ ;,,;/, B?)456)8462B!4@6$"F45 -:,0. $5"GG6G@"))47684B76G$5436=1H+1 ;,,0,, 7$6F"@)BE46G)BAD@DI45 +, -+/:; A"@) ++ -,,+1 !>) < +: -+.:; $5"GG6G@"))47684B76G$543...

  • Page 56: Engine Diagram

    Engine diagram MODEL: VF2200IG 3MNOM'9PQR)9SOT)9U%R9?I,,--6H !"# $%&' ,--,-. $/0!1$023 ,-4+-+ 2567$890223:;<=>"6<9<3?3< @+.,4 ;"<799:AB+, ,-@@-. $<0:E3/9$"/F @.4-+ "6<9230<9 @.--G ;0<<9;30/6!H9 ,--.-D $/0!1280I79 ,++,-. E627"! ,++A-. 2$/0E3/9/6!H92379>E627"! +- ,-44-+ E6!>9E627"! ++ ,-+.-+ $<6E>9E627"! +, ,-+4-. /"F90223:;<=#>9$"!!3$76!H +. ,-A+-+ <6I73/>?0<?3 +D ,-,--, $0:280I790223:;<= +4 ,D-@-D $/0!1$023!E6!!F"53<...

  • Page 57: Warranty Information

    2.5kVA Inverter Generator VF2200IG Warranty Thank you for purchasing this Vyking Force product. This warranty is provided by Bapcor Retail Pty Ltd 327 Ferntree Gully Road Mount Waverley VIC 3149 Ph. +61 3 8878 1111. Except for any defects caused by an accident, misuse, abuse, improper installation or...
  • Page 59 2.5kVA Inverter Generator VF2200IG...
  • Page 60 Vyking Force is a registered trademark of Bapcor Retail Pty Ltd 327 Ferntree Gully Road Mount Waverley VIC 3149 VYKINGFORCE.COM...
