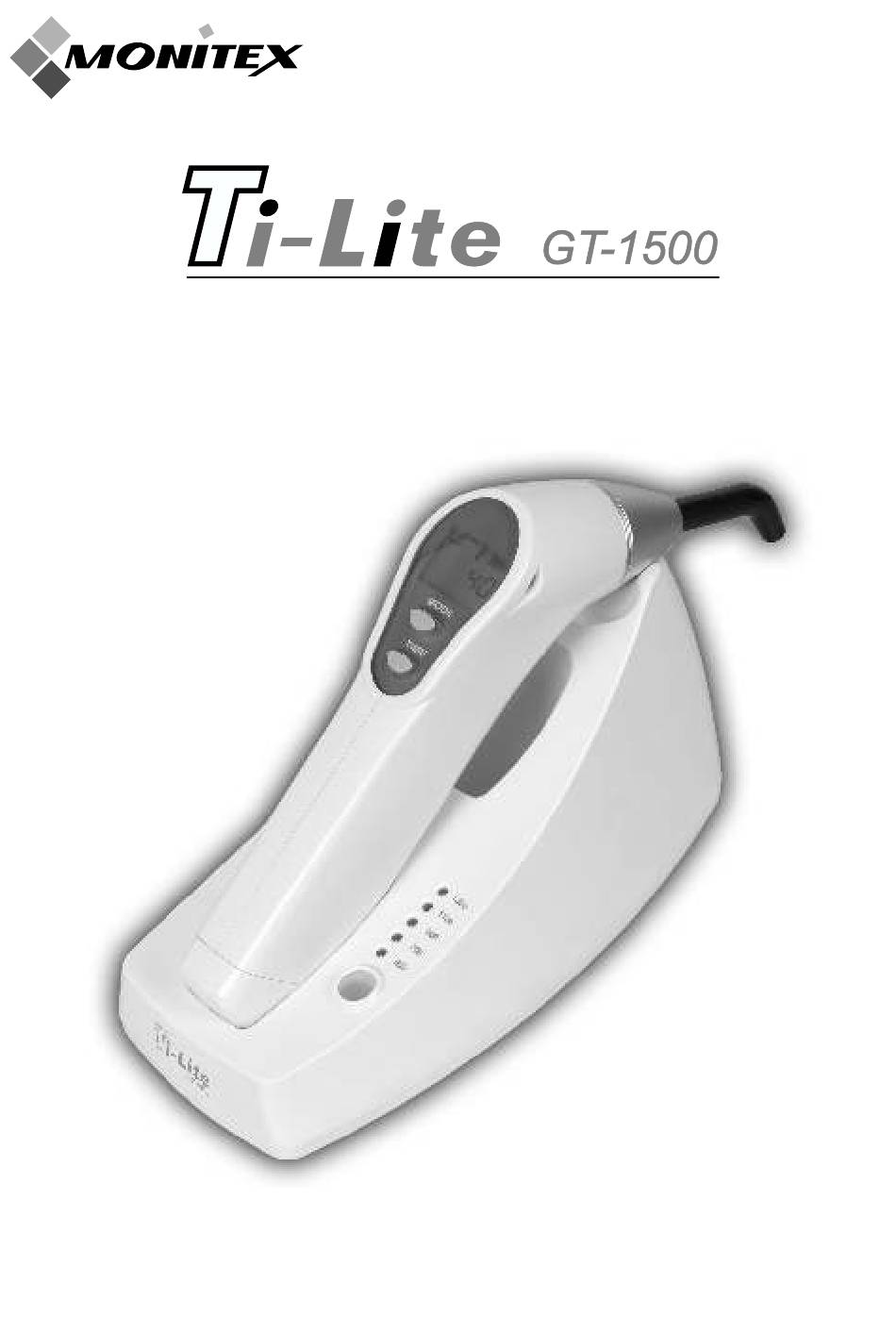

- Page 1 The innovative cordless LED curing light User Manual...
-
Page 2: Table Of Contents
Table of Contents PREFACE ------------------------------------------------------- 1 DISCLAIMER -------------------------------------------------- 1 SAFETY PRECAUTIONS ------------------------------------- 2 PARTS AND FUNCTIONS ------------------------------------ 3 GENERAL INSTALLATION ---------------------------------- 4 WARNING: LI-ION BATTERY ------------------------------- 5 OPERATION ---------------------------------------------------- 5 COOLING SYSTEM -------------------------------------------- 7 CHARGER SIGNALS ------------------------------------------- 7 TROUBLE SHOOTING TIPS --------------------------------- 8 SPECIFICATION ------------------------------------------------ 9... -
Page 3: Preface
Beware of high temperature and strong light. Do not look directly into the light source without eye protection. PREFACE Upon your purchase of the “Ti-Lite GT-1500” high efficiency LED (Light Emitting Diode) curing light, please pay attention to the following contents. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please follow instruction steps in this manual for correct and safe operations of the device. Pay high attention to the following warning signs beside the operation descriptions where applicable. DANGER ─ This message appears where the operation may potentially cause severe injury if instruction not followed correctly. -
Page 5: Parts And Functions

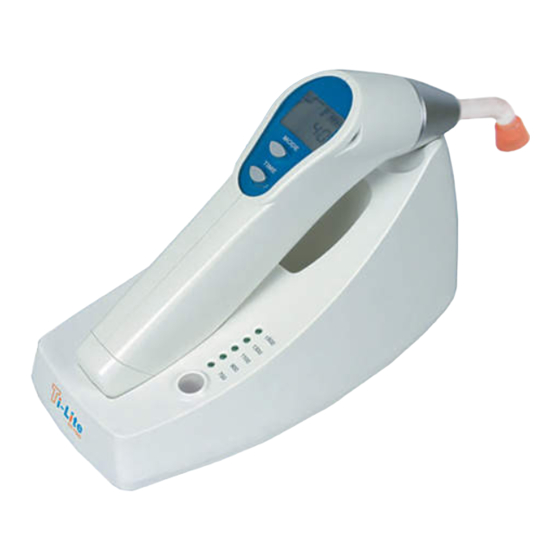

PARTS & FUNCTIONS Fiber optic probe LCD display 3 modes setting button: M1 - Full Power Time setting button M2 - Bleaching M3 - Pulse Charge stand AC 100V~240V 50/60Hz) Body cover Built in radiometer Anti-glare cone ON / OFF / SET (on/off, set/memory) Protective Shield Charging socket... -
Page 6: General Installation
GENERAL INSTALLATION ** Please follow the instructions below carefully to ensure proper function of the device. 1. Insert the fiber optic probe into the handpiece and make sure it is securely installed at the fixed position. 2. Connect the electric wire to the charger stand and plug it into an electricity outlet. -
Page 7: Warning: Li-Ion Battery
Warning: Li-Ion Battery. To prevent a possibility of the battery from locking out, leaking, heat generation or explosion, please observe the following precautions: Do not disassemble. Keep the battery dry Keep away from high temperature. Do not crush. Please charge the battery every 2-months period if left idled. Please recycle the battery. - Page 8 Time Setting : 1. Once the user sets the mode (M1 or M3), please press TIME button continuously for longer than 2 seconds (till the number shown in the LCD panel starts to blink), and press again to change time, one second per push. 2.
-
Page 9: Cooling System
COOLING SYSTEM Ti-Lite GT-1500 is equipped with a special built-in magnetic fan motor to prevent over-heating and to prolong the light emitting time. IMPORTANT : > The cooling system will be activated with the motor fan Over-heating Indication which starts turning when the heat starts to accumulate. -
Page 10: Trouble Shooting Tips
TROUBLE SHOOTING TIPS CAUTION : As failures or errors occur, please use the following table to try and fix the device. If the device remains problematic, please send back to the manufacturer for repair. Federal law restricts this device to sale or on the order of a dentist. DESCRIPTIONS FAILURE CAUSE... -
Page 11: Specification
SPECIFICATION CURING HANDPIECE : ‧LED LAMP : 5 Watt. ‧LIGHT INTENSITY : up to 1,500 mW/cm ‧WAVE LENGTH : 450 ~ 470 nm ‧DIMENSION : 18.5(L) x 3.86(W) x 8.2(H) cm ‧WEIGHT : APPROX. 206g CHARGER : ‧OUTPUT VOLTAGE : 8.4 V (TYPICAL) ‧DIMENSION : 19.3(L) X 8.38(W) X 9.59(H) cm ‧WEIGHT : APPROX. - Page 12 INDUSTRIAL CO., LTD 6F, 70, SEC. 1, GUANG-FU ROAD SAN-CHONG CITY, 24158, TAIPEI COUNTY, TAIWAN TEL : 886-2-29993869 FAX: 886-2-29993647 E-mail : monitex@monitex.com.tw http://www.monitex.com.tw Copyright© 2010 MONITEX Industrial CO., LTD. All Rights Reserved. 2010.08 (Ver. 1)
