Operations Manual
NOVASUB standard digital 2 or 4 Diver Intercom
radio built in a 19" Surface Control Unit
Revision: 2 - Date: 24-01-2022
SCU-xDR-DSP-M1.0 Manual
| SCU-xDR-DSP-M1.0
Advertisement
Table of Contents
Related Manuals for Novasub THETIS-R1
Summary of Contents for Novasub THETIS-R1
- Page 1 SCU-xDR-DSP-M1.0 Manual Operations Manual | SCU-xDR-DSP-M1.0 NOVASUB standard digital 2 or 4 Diver Intercom radio built in a 19” Surface Control Unit Seascape Subsea BV De Hoogjens 22 Revision: 2 - Date: 24-01-2022 4254 XW Sleeuwijk The Netherlands T. +31-183-307900 info@novasub.com...
-
Page 2: Table Of Contents
HELP & SUPPORT ..................................... 13 WARRANTY ..................................... 14 Warranty Period....................................14 Exclusions and Limitations ................................14 This Limited Warranty is not enforceable if item: ........................... 14 Limitation of Liability ..................................14 www.novasub.com Revision: 2 - Date: 24-01-2022 2 of 14... -
Page 3: Abbreviations / Terminology
Abbreviations / Terminology Ampere hour Comms Communication Diver Depth Gauge Diver Gas Analyzer DVR3 Digital Video Recorder Microphone NovaBus Novasub proprietary data transfer port Push To Talk Volt AC Diver intercom radio www.novasub.com Revision: 2 - Date: 24-01-2022 3 of 14... -
Page 4: Introduction

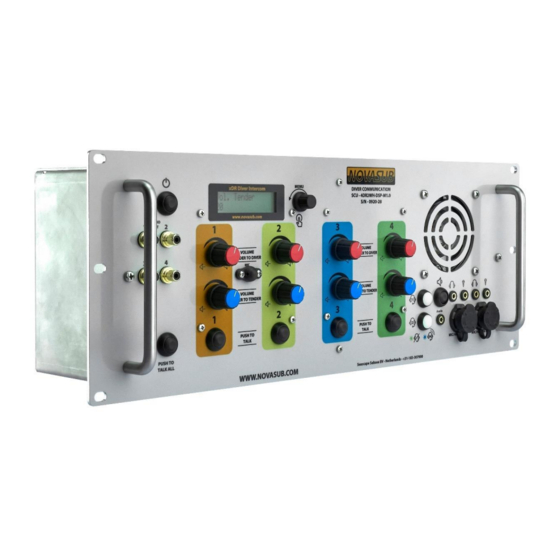

The Surface Control Unit (SCU) is a 19 inch aluminum case that can be mounted in standard 19 inch racks. It contains the xDR Diver intercom radio that is used for communication with the diver. This unit is best combined with other Novasub rack units. -
Page 5: Specifications
Run time 20-45 min. Serves only as UPS backup Charging time 12 hours Size Rack Unit Width 482.6 mm Depth 134 mm Height 177.1 mm Build-in Depth 155 mm Weight 4.5 kg www.novasub.com Revision: 2 - Date: 24-01-2022 5 of 14... -
Page 6: Maintenance
Have your system serviced each 2 years by a Novasub Authorized Service Center. This service will include a general operational check, replacement of the battery, and overall upgrade of firmware. The service requires special tools and training. -
Page 7: General
Audio out connections See manual: xDR – Diver Intercom DVR IN External Power NovaBus Diver Audio Connection connections www.novasub.com Revision: 2 - Date: 24-01-2022 7 of 14... -
Page 8: Basic Controls
Speaker OFF Button out Rackmount units The SCU-xDR-DSP-M1.0 is best combined with other Novasub rackmount units. How to connect these units to each other can be seen in the schematic on the next page. www.novasub.com Revision: 2 - Date: 24-01-2022... - Page 9 SCU-xDR-DSP-M1.0 Manual www.novasub.com Revision: 2 - Date: 24-01-2022 9 of 14...
-
Page 10: Xdr - Diver Intercom
If your system has a DVR3 it can also be found in the “Help” function. That can be opened with the question mark in the bottom of the screen This manual can be found on www.Novasub.com. There you can find your product and the manuals will be on that page under the Downloads Folder: Find this manual here www.novasub.com... -
Page 11: Connectors
12 vdc Speaker/mic Gnd Mic + Speaker + Below jacks are parallel connected to 0271-07 multipin connector Type Jack 3,5 mm Mating type Jack 3,5 mm Head Standard stereo Standard mono www.novasub.com Version: 1.0 - Date: 27-11-2020 11 of 14... - Page 12 MSTB 2,5/ 4-G-5,08 Function Pin layout RS485+ RS485- Umbilical Comms DFK-MSTB 2,5/ 4-G- Type 5,08 Mating type MSTB 2,5/ 4-G-5,08 Function Pin layout Comms MIC Comms MIC Comms Head Comms Head www.novasub.com Version: 1.0 - Date: 27-11-2020 12 of 14...
-
Page 13: Help & Support
Help & Support Further details about a Warranty Statement can be found at the next chapter For technical support contact your local a Novasub Authorized Service Center or Seascape Subsea BV. Seascape Subsea BV is the manufacturer of all Novasub branded products. -
Page 14: Warranty
2. has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center; 3. serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Novasub; 4. has been exposed to chemicals. Novasub does not warrant that the operation of the product will be uninterrupted or error free, or that the product will work with any hardware or software provided by a third party.
