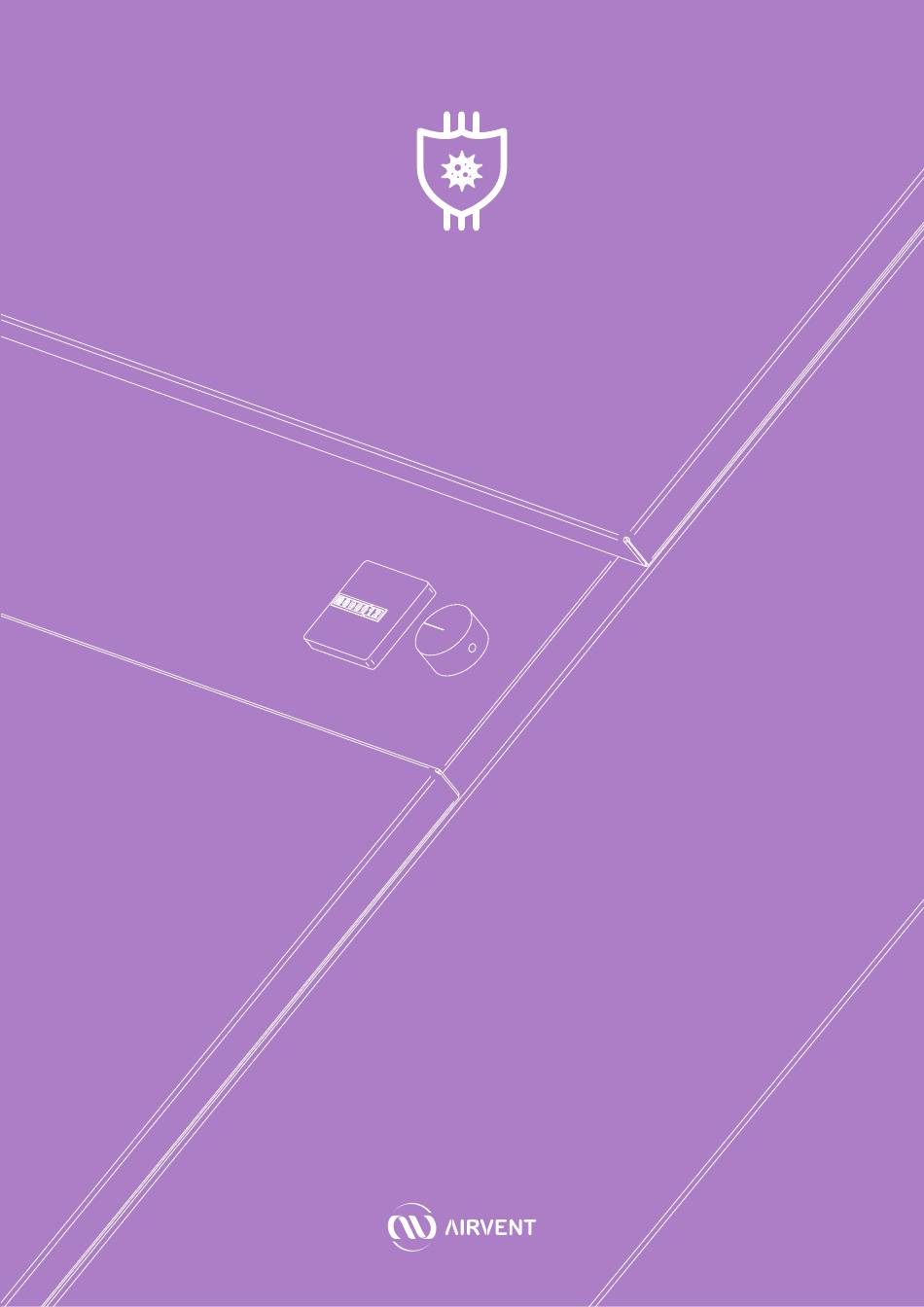

- Page 1 UV-C FiltAir UV-C Air Sterilizer Series for Indoor Applications Instruction Manual...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation and Use of UV-C FiltAir . -
Page 3: General Information
It is not permitted for the user to open the reactor space and to insert or replace the UV-C lamps! The unit may only be installed and maintained by an Airvent-trained technician. Unplug the unit before removing the doors. Use UV... -
Page 4: Features Of The Uv-C Filtair
Airvent UV-C FiltAir Instruction Manual Features of the UV-C FiltAir UV-C FiltAir UV-C FiltAir 15 UV-C FiltAir 30 Width (mm) Width (mm) Depth (mm) Depth (mm) Height (mm) 2180 Height (mm) 2180 Airflow (m 50-200 Airflow (m 50-400 Recommended room area for 5 times/hour... -
Page 5: Uv-C Filtair-S
UV-C FiltAir-S UV-C FiltAir-S 15 UV-C FiltAir-S 30 Width (mm) Width (mm) Depth (mm) Width (mm) Height (mm) 2270 Height (mm) 2320 Airflow (m 50-200 Airflow (m 50-400 Recommended room area for 5 times/hour Recommended room area for 5 times/hour... -
Page 6: Unit Description
UV-C FiltAir sweeps down the airborne particles without vor- tices and continuously sterilizes the room air through the unit. CFD simulation of air moved by a UV-C FiltAir placed next to a wall in a room with a ceiling height of 3 m. -
Page 7: Installation Of The Unit
Attention! Due to the large size of the UV-C FiltAir, two people are required to move it. (For size 75, the assistance of three people is re- quired) The unit may only be installed by a specialist trained by Airvent. The installation and maintenance of the equipment (especially with regard to the opening of the reactor space) may only be carried out by a specialist trained by Airvent. -
Page 8: Separately Packed Accessories
Airvent UV-C FiltAir Instruction Manual Separately Packed Accessories Remove the Filter The UV-C lamps, screws, dowels and power cord can be found in After turning the filter clamps, the filter can be tilted and re- a seperate package inside the UV reactor. These must be removed moved from the filter housing by reaching under the frame of from the inside and placed in a safe place until the installation. -
Page 9: Mounting The Unit To The Wall
(marked in red), and then put the unit aside for the duration of drilling. The machine must be secured against tipping over during the drilling. Size C (mm) UV-C FiltAir 15 UV-C FiltAir 30 UV-C FiltAir 45 UV-C FiltAir 75 1050 Ø10... -
Page 10: Fitting The Doors
The device can only be connected to a 230 V power supply with protective earth. • The UV-C FiltAir unit belongs to contact protection class I., protection class IP20. The 1,8 m power cable supplied as an accessory, must be installed without any risk of causing an accident, should be aesthetically •... -
Page 11: Maintenance
Cleaning the Outer Casing The cleaning of UV-C FiltAir is a basic requirement. Since the housing of the unit is C4 corrosion-resistant aluminum with UV-resis- tant powder coating, it can be cleaned with a disinfectant with a minimum ethanol content of 70% as part of a standard cleaning routine. -
Page 12: Cleaning The Uv-C Reactor Surface
(The order is reversed as it was at dismantling.) Removal of the top door Replacement of UV-C lamps is not permitted by the user and may only be performed by a specialist trained by Airvent. After Attention! fitting the door, the safety screw must be screwed back on so that unauthorized persons cannot remove the door. We recommend documenting the replacement of UV-C lamps on the Maintenance Form at the end of this manual. - Page 13 Maintenance Form Counter Maintenance Filter Activated carbon UV tubes & reactor UV tubes is at done by replacement filter replacement space cleaning replacement Date Every 2000 hours Every year Every 2000 hours Every 8000 hours or in every 6 months .
-
Page 14: Parts
Part code pc/unit LTC28T8 30W UVC T8 fluorescent lamp LTC28T8 30W UVC T8 FP-M6-G22 panel filter with metal frame 502x502-22 FP-M6-G22 502x502x22 UV-C FiltAir 15 Activated carbon impregnated filter material CARBOTEX400 504x185 UV-C FiltAir 30 Part name Part code pc/unit... -
Page 15: Notes
Notes .................................. - Page 16 Airvent Headquarters 6000 Kecskemét, Belsőnyír 150. Hungary Phone: +36 30 938 1141 or +36 30 248 1169 Email: export@airvent.hu www.airvent.eu...
