PPA Citrox SS 400T Manual

WARNING:
Do not use the equipment
without referring to this
manual rst.
MANUAL

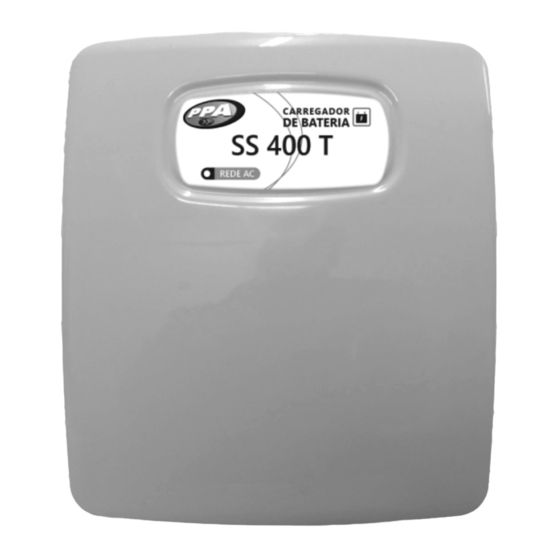

BATTERY CHARGER
SS 400T
LINE
P30577 - 07/2022
Rev. 0
Terminal identification.
0V/110V/220V: Input from the electrical network (local
network), for the equipment. To connect the equipment
to 110V, use the terminals: 0V and 110V. To connect the
equipment to 220V, use the terminals: 0V and 220V.
12V +/- : 12V output used to power peripherals
(sensors, alarm panels, etc).
Output Voltage: 13.8Vdc
Max output current: 3A
BAT +/-: Input for 12V/7Ah battery.
The power supply has a floating charging system that
keeps the battery at full charge at all times.
BOT: Use (BOT and 12V-), to connect the NA button, to
activate the electromagnetic lock.
TR: Used to power the
electromagnetic lock (TR and 12V-).
Jumper ID.
BUZZER: When the ON option is selected, whenever
the lock is activated, the source will emit a sound signal
for the same time interval set for the activation. When
the OFF option is activated, the activation sound option
will be turned off.

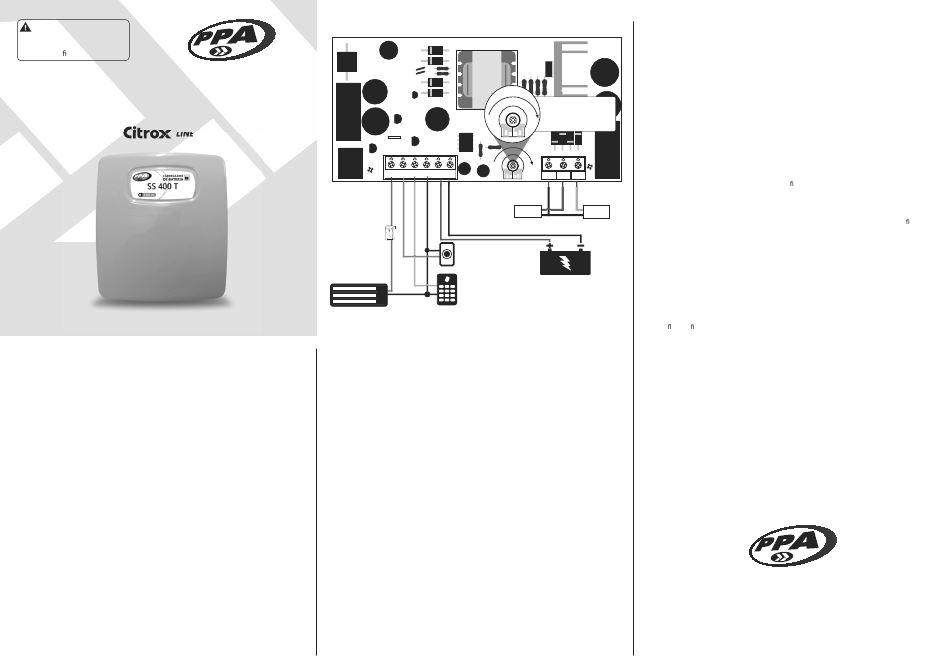

TEMPO
-
R322
TEMPO
-
TR BOT
+12V- +BAT-
EMERGENCY
KEY
N.A. PUSHBUTTON
PERIPHERAL 12V
ELECTROMAGNETIC
LOCK
GENERAL TERMS AND CONDITIONS OF WARRANTY
MOTOPPAR da Amazônia Indústria e Comércio de Eletrônicos Ltda, registered with
CNPJ No. 09.084.119/0002-45, located at Praça Linear, No. 100, Bloco II, Centro, Santa
Rita do Sapucaí/MG, CEP 37.500-000, manufacturer of the PPA and CITROX products,
guarantees this device against defects in design, manufacture, assembly and/or
jointly and severally as a result of defects in the quality of the material that make it
inappropriate or unsuitable for the consumption for which it is intended, for a legal
period of 90 (ninety) days from the date of purchase, provided that the installation
guidelines described in the instruction manual are observed.
ADJUST THE
As a result of the credibility and trust placed in PPA AND CITROX products, we added
+ ACTIVATION TIME
another 275 days to the above period, reaching a total of 1 (one) year, also counted
BETWEEN 3 TO 60
SECONDS
from the date of purchase to be proven by the consumer through the proof of
purchase (Supervisor Note).
In the event of a defect, within the warranty period, the liability of PPA and/or CITROX
is restricted to the repair or replacement of the device manufactured by it, under the
+
following conditions:
1. The repair and readjustment of the equipment can only be carried out by the
0V 110V 220V
Technical Assistance, which is quali ed to open, remove, replace parts or
components, as well as repair the defects covered by the warranty, and, in the
absence of this and any use of parts not originals contained in the use, will result
110V 220V
in the waiver of this term by the consumer;
2. The warranty will not extend to accessories such as cables, screws kit, xing
ELECTRICAL NETWORK
brackets, sources, etc.;
3. Expenses for packaging, transport and reinstallation of the product are
exclusively borne by the consumer;
4. The equipment must be sent directly to the company responsible for the sale,
representative of the manufacturer, through the address on the purchase
invoice, properly packaged, thus avoiding the loss of warranty;
12V BATTERY
5. The replacement or repair of the equipment does not extend the warranty
period.
This warranty will be void if the product:
1. Suffer damages caused by agents of nature, such as atmospheric discharges,
oods, res, landslides, etc.;
2. It is installed in an improper electrical network or even in disagreement with any
of the installation instructions set out in the manual;
3. Defects caused by falls, blows or any other physical accident;
4. For violation of the equipment or attempt to repair by unauthorized personnel;
5. It is not used for its intended purpose;
6. Not used under normal conditions;
7. Suffer damage caused by accessories or equipment attached to the product.
Recommendation:
We recommend the installation and maintenance of the product by a specialized
technical service.
If the product has a defect or abnormal operation, look for a specialized Technical
Service for the necessary corrections.
Made by: Motoppar da Amazônia Indústria e Comércio de Eletrônicos LTDA
Praça Linear, 100, Bloco 2 - Centro
Santa Rita do Sapucaí - MG - CEP 37.540-000 - Brasil
CNPJ: 09.084.119/0002-45
www.citrox.com.br | +55 14 3407 1000
